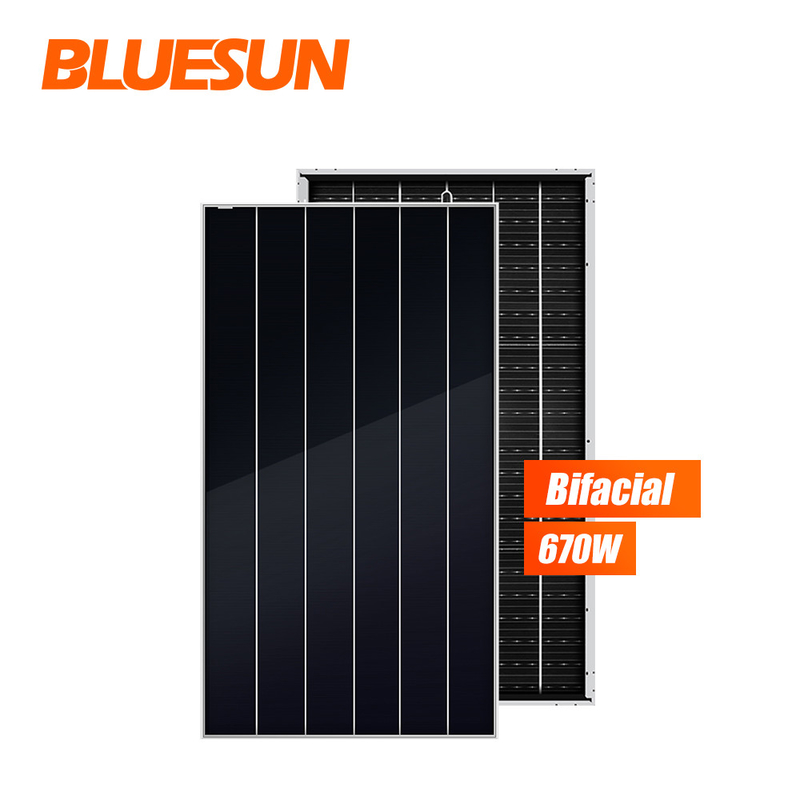

Name: Bifacial Shingled 670 Watts Solar Panels EU Stock 670W 665W 660W Mono PV Module Pallet Price
Brand: Bluesun Solar Co., Ltd.
SKU: BSM670PMB6-69SDC
Availability: InStock

Home Products Solar Panel

Bifacial Shingled 670 Watts Solar Panels EU Stock 670W 665W 660W Mono PV Module Pallet Price

Product Details:

Place of Origin:	Anhui, China
Brand Name:	bluesun
Model Number:	BSM670PMB6-69SDC

Contact Now

Detailed Product Description

Cell Size:	210mmx210mm	Panel Dimensions:	2355130335mm
Panel Efficiency:	21.6%	Cell Type:	Monocrystalline
Cell Dimensions:	210*210mm	Weight:	38.5kg
Cable Length:	Portrait 300mm/Landscape 1200mm/Customized	Cable Cross Section Size:	TUV: 4mm (0.006inches )/UL: 12AWG
Module Dimensions:	2355130335mm	Packing Configuration:	31pcs/carton, 558pcs/40hq
Frame:	Anodized Aluminium Alloy	Efficiency:	21.6%
Junction Box:	IP68

Products Description

Product Parameters

SPECIFICATIONS
Module Type	BSM650PMB6-69SDC	BSM655PMB6-69SDC	BSM660PMB6-69SDC	BSM665PMB6-69SDC	BSM670PMB6-69SDC
	STC	STC	STC	STC	STC
Maximum Power (Pmax/W)	650	655	660	665	670
Operating Voltage (Vmpp/V)	38.7	38.8	38.9	39.0	39.1
Operating Current (Impp/A)	16.8	16.86	16.95	17.05	17.14
Open-Circuit Voltage (Voc/V)	46.7	46.8	46.9	47.0	47.1
Short-Circuit Current (Isc/A)	17.84	17.94	18.04	18.14	18.23
Module Efficiency (%)	21.0	21.1	21.2	21.4	21.6
STC: Cell Temperature 25°C, Air Mass AM1.5
Electrical characteristics with different rear side power gain (refer to 670W front)
Pmax gain	Pmax/W	Vmpp/V	Impp/A	Voc/V	Isc/A
5%	683	38.2	17.80	46.1	18.9
10%	715	38.2	18.65	46.1	19.8
15%	748	38.2	19.49	46.1	20.7
20%	780	38.2	20.34	46.2	21.6
25%	813	38.2	21.19	46.2	22.5

Advantages Of Shingled Panel

* When the shingled module is installed vertically and the single cell string is shaded, the output power of the shingled module can reach 86.65% of the normal operation. That's 35% more power than the half-cell module.
