Name: Hot Selling Home Solar System 20kw 15kw 30kw Ready to Be Shipped in Low Cost
Brand: Bluesun Solar Co., Ltd.
SKU: BSM15/20/30KW EU- HY
Availability: InStock

Home Products New Arrivals

Hot Selling Home Solar System 20kw 15kw 30kw Ready to Be Shipped in Low Cost

Product Details:

Place of Origin:	China
Model Number:	BSM15/20/30KW EU- HY

Contact Now

Detailed Product Description

Free Installation Service:	NO	Application:	Home
Solar Panel Type:	Monocrystalline Silicon	Battery Type:	Lead-Acid, Lithium Ion
Controller Type:	MPPT, PWM	Mounting Type:	Roof/Ground Mounting
Load Power (W):	30kw, 20KW, 10KW, 15KW	Output Voltage (V):	1000V 1500V
Output Frequency:	50 60HZ	Work Time (h):	24 Hours
Pre-sales Project Design:	Y	Product Name:	Solar Engery Systems
Type:	Three Phase	Keyword:	Solar Panel Systems Hybrid
Inverter:	Hybrid Inverter	System Type:	Grid Solar Photovoltaic System
Battery:	Lithium LifePO4	Usage:	Home Solar Energy Generation
Function:	Power Support	Controller:	MPPT Solar Charge Controller
Solar Panel:	Monocrystalline	Warranty:	5years
Certificate:	GoldenSUN CE

Products Description

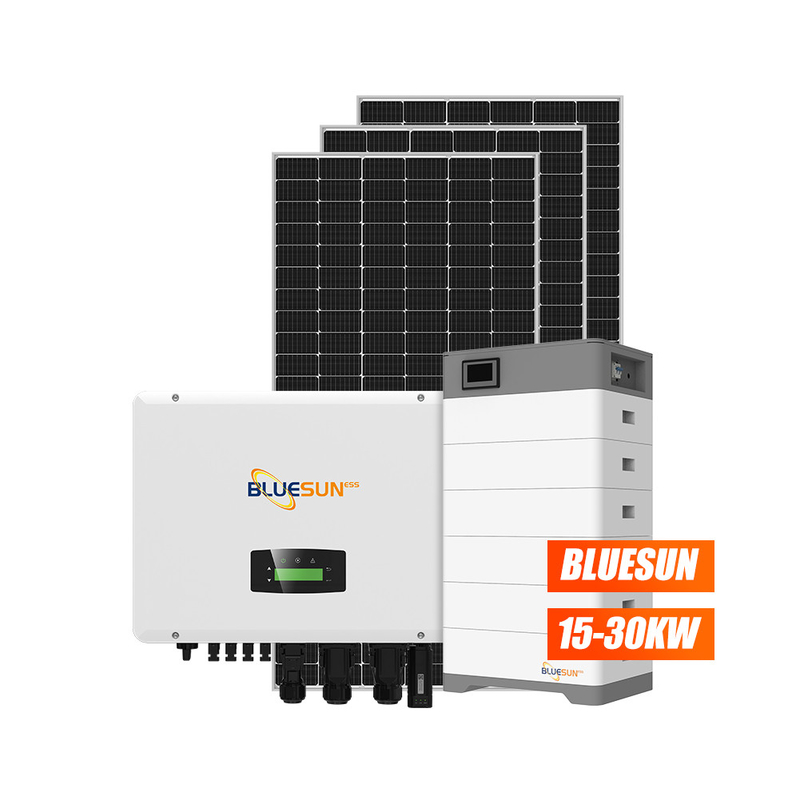

15KW Hybird Solar Power System Components List
Item	Model	Description	Quantity
1	Solar Panel	Half cut mono solar panel 560w	26 pcs
2	Combiner Box	Optional	1 pc
3	Lithium Battery or Lead Acid Battery	21.7kWh Stacked Battery	1 pc
4	Hybrid Inverter	15kva	1 pc
5	Mounting Support	Roof/Ground	1 set
6	Cable	4mm² PV cable	200 m
7	Connector	Solar connector	8 pairs
8	Tools Bag	Solar Installation tools	1 set

20KW Hybrid Solar Power System Components List
Item	Model	Description	Quantity
1	Solar Panel	Half cut mono solar panel 560w	42 pcs
2	Combiner Box	Optional	1 pc
3	Lithium Battery or Lead Acid Battery	21.7kWh Stacked Battery	1 pc
4	Hybrid Inverter	20kva	1 pc
5	Mounting Support	Roof/Ground	1 set
6	Cable	4mm² PV cable	200 m
7	Connector	Solar connector	10 pairs
8	Tools Bag	Solar Installation tools	1 set

30KW Hybird Solar Power System Components List
Item	Model	Description	Quantity
1	Solar Panel	Half cut mono solar panel 560w	58 pcs
2	Combiner Box	Optional	1 pc
3	Lithium Battery or Lead Acid Battery	32.56kWh Stacked Battery	1 pc
4	Hybrid Inverter	30kva	1 pc
5	Mounting Support	Roof/Ground	1 set
6	Cable	4mm² PV cable	300 m
7	Connector	Solar connector	12 pairs
8	Tools Bag	Solar Installation tools	1 set

Main Component

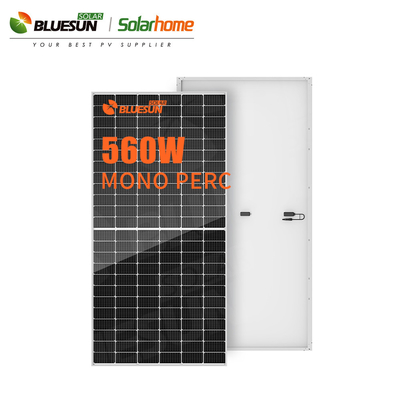

SOLAR PANELS

> 25 years Warranty

>Optimized to -0.30%℃
> Highest conversion efficiency of 17%
> Anti-reflective and anti-soiling surface power loss from dirt and dust

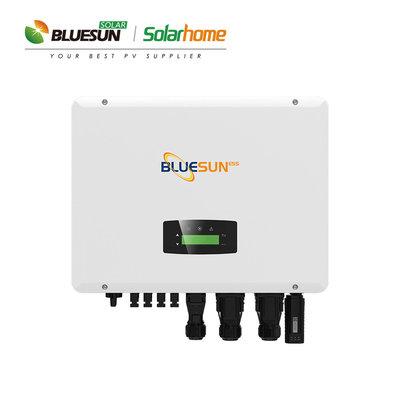

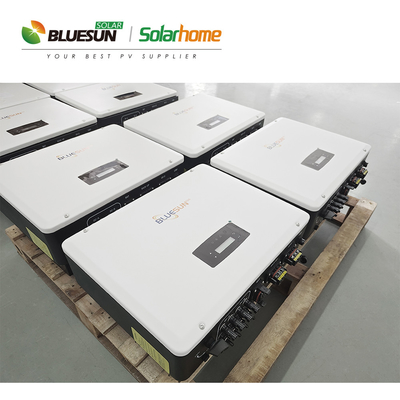

HYBRID SOLAR INVERTERS

> 15/20/30KW grid hybrid inverter

> 380v 50Hz three phase
> With WIFI+CT
> Built in MPPT controlle

STACKABLE LITHIUM BATTERY

> BSM48106HP

> 51.2V 106AH
>Battery cables + BMS high voltage box + base.

ACCESSORIES

> PV Cable 4mm2 6mm2
> AC Cable
> DC Switches
> AC Breaker
> AC/DC Combiner box

MOUNTING STRUCTURE

> Residential Roof(Pitched Roof)
> Commercial Roof(Flat roof&workshop roof)
> Ground Solar Mounting system
> Vertical wall solar mounting system
> All aluminum structure solar mounting system
> Car parking solar mounting system
