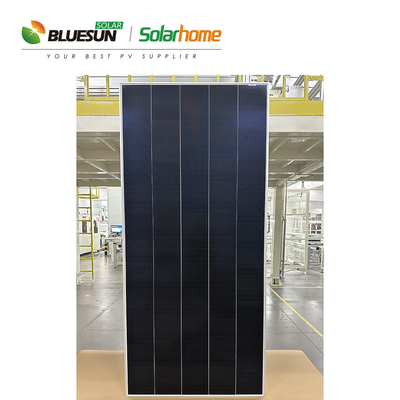

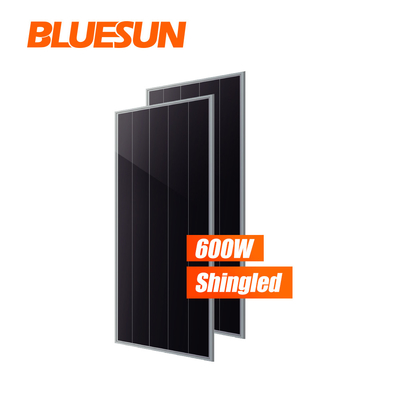

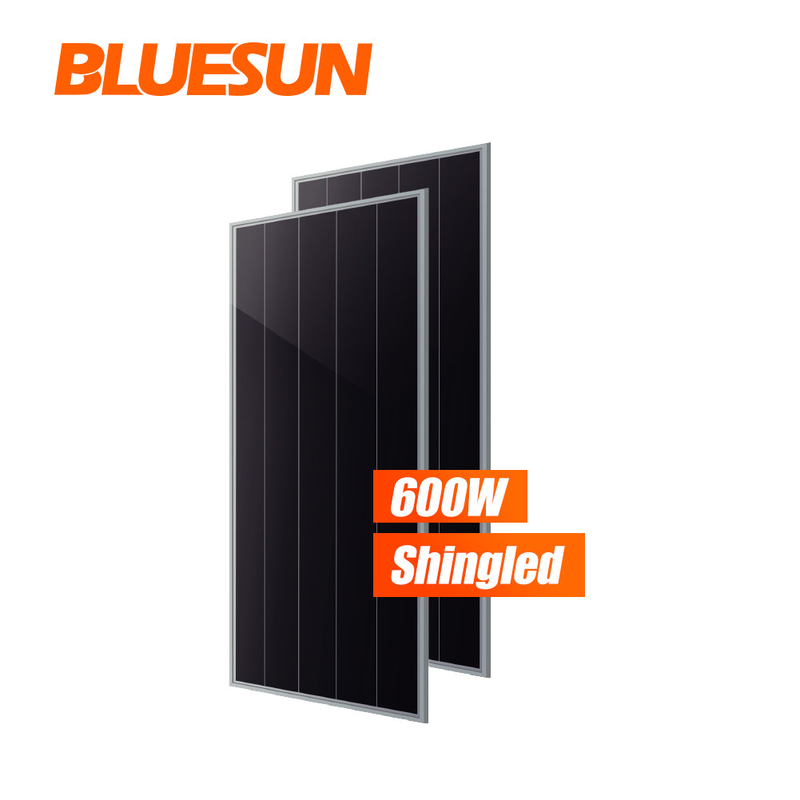

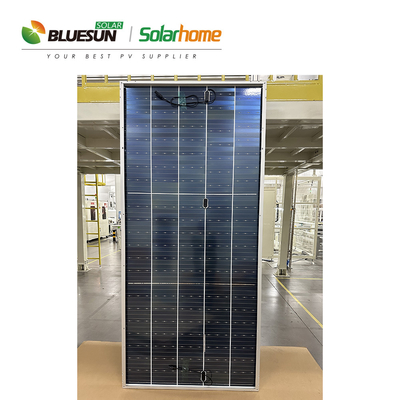

Bluesun Solar Panel BSM600PMB6-60SDC 600W Bifacial Double Glass Shingled HJT Mono Solar Panel

Bluesun Solar Panel BSM600PMB6-60SDC 600W Bifacial Double Glass Shingled HJT Mono Solar Panel

  • Bluesun Solar Panel BSM600PMB6-60SDC 600W Bifacial Double Glass Shingled HJT Mono Solar Panel
  • Bluesun Solar Panel BSM600PMB6-60SDC 600W Bifacial Double Glass Shingled HJT Mono Solar Panel
  • Bluesun Solar Panel BSM600PMB6-60SDC 600W Bifacial Double Glass Shingled HJT Mono Solar Panel
  • Bluesun Solar Panel BSM600PMB6-60SDC 600W Bifacial Double Glass Shingled HJT Mono Solar Panel
  • Bluesun Solar Panel BSM600PMB6-60SDC 600W Bifacial Double Glass Shingled HJT Mono Solar Panel
  • Bluesun Solar Panel BSM600PMB6-60SDC 600W Bifacial Double Glass Shingled HJT Mono Solar Panel
  • Bluesun Solar Panel BSM600PMB6-60SDC 600W Bifacial Double Glass Shingled HJT Mono Solar Panel
Bluesun Solar Panel BSM600PMB6-60SDC 600W Bifacial Double Glass Shingled HJT Mono Solar Panel
Product Details:
Place of Origin: Anhui, China
Brand Name: Bluesun
Model Number: BSM600PMB6-60SDC
Contact Now
Detailed Product Description
Cell Size: 210mmx210mm Panel Dimensions: 2384 *1096*30mm
Panel Efficiency: 23% Front Glass: Tempered Glass, 2.0mm
Weight: 32.0± 0.3kg Cable Length: Portrait 300mm/Landscape 1200mm/Customized
Cable Cross Section Size: TUV: 4mm (0.006inches )/UL: 12AWG Packing Configuration: 36pcs/box; 720pcs/40'HQ
Frame: Anodized Aluminium Alloy Junction Box: IP68, Three Diodes

Products Description
Bluesun Solar Panel BSM600PMB6-60SDC 600W Bifacial Double Glass Shingled HJT Mono Solar Panel 0
Bluesun Solar Panel BSM600PMB6-60SDC 600W Bifacial Double Glass Shingled HJT Mono Solar Panel 2
Product Parameters
Bluesun Solar Panel BSM600PMB6-60SDC 600W Bifacial Double Glass Shingled HJT Mono Solar Panel 4
SPECIFICATIONS
Module Type
BSM585PMB6-60SDC
BSM590PMB6-60SDC
BSM595PMB6-60SDC
BSM600PMB6-60SDC
BSM605PMB6-60SDC
BSM610PMB6-60SDC
STC
STC
STC
STC
STC
STC
Maximum Power
(Pmax/W)
585
590
595
600
605
610
Operating Voltage
(Vmp/V)
39.80
39.90
40.00
40.10
40.20
40.30
Operating Current
(Imp/A)
14.71
14.80
14.89
14.98
15.07
15.16
Open-Circuit Voltage(Voc/V)
47.80
47.90
48.00
48.10
48.20
48.30
Short-Circuit Current(Isc/A)
15.67
15.77
15.87
15.97
16.07
16.17
Module Efficiency in STCηm(%)
22.40
22.60
22.80
23.00
23.20
23.40
STC: Irradiance 1000w/m2, Cell Temperature 25°C, Air Mass AM1.5
Advantages Of Shingled Panel
Bluesun Solar Panel BSM600PMB6-60SDC 600W Bifacial Double Glass Shingled HJT Mono Solar Panel 6
Bluesun Solar Panel BSM600PMB6-60SDC 600W Bifacial Double Glass Shingled HJT Mono Solar Panel 8
Bluesun Solar Panel BSM600PMB6-60SDC 600W Bifacial Double Glass Shingled HJT Mono Solar Panel 10

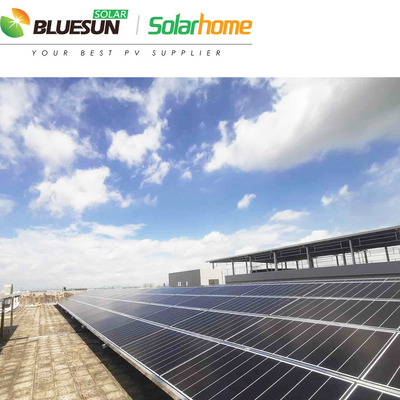

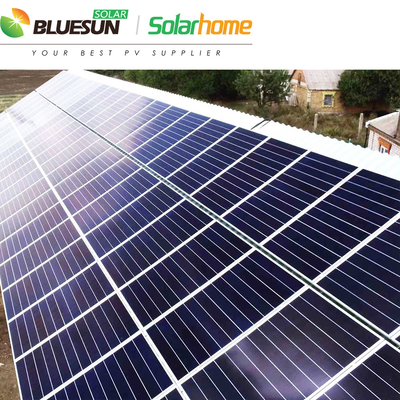

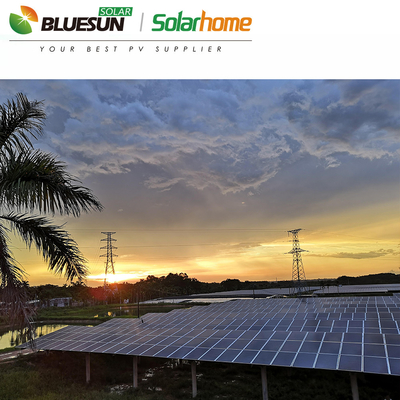

Projects
Bluesun Solar Panel BSM600PMB6-60SDC 600W Bifacial Double Glass Shingled HJT Mono Solar Panel 12
Packing & Delivery
Bluesun Solar Panel BSM600PMB6-60SDC 600W Bifacial Double Glass Shingled HJT Mono Solar Panel 14
