Name: Bluesun Wholesale Hybrid Solar Inverter 6kw 10kw Mppt Solar Hybrid Inverter 48V for Home Use
Brand: Bluesun Solar Co., Ltd.
SKU: BSE6KL1
Availability: InStock

Home Products New Arrivals

Bluesun Wholesale Hybrid Solar Inverter 6kw 10kw Mppt Solar Hybrid Inverter 48V for Home Use

Product Details:

Place of Origin:	Anhui, China
Brand Name:	Bluesun
Model Number:	BSE6KL1

Contact Now

Detailed Product Description

Input Voltage:	DC600V	Output Voltage:	220 Vac Single Phase
Output Current:	26.1A	Output Frequency:	50/60HZ
Output Type:	Single Phase, 120 / 220 Vac Single Phase	Size:	422413178mm
Type:	DC/AC Inverters	Inverter Efficiency:	99.9%
Weight:	22kg	Product Name:	BSE6KL1
AC Connection:	Single Phase	MPPT Efficiency:	99.9%
Warranty:	5/10 (optional), 5/10years	Max.PV Input Current [A]:	12.5A
Weight [kg]:	22kg	Dimension(LWD) [mm]:	422413178mm
Operating Voltage Range [105-500Vdc]:	Natural Cooling	Max.DC Voltage [Vdc]:	600V
Meter:	RS485	Certificate:	CE/TUV

Products Description

The Bluesun low voltage Series storage Inverters are designed to increase energy independence for home owners. Single Phase Hybrid Inverter, compatible with low voltage (40-60V) batteries.

NO	Items
1	DC Switch
2	DC Connectors ( + ) For PV Strings
3	DC Connectors ( − ) For PV Strings
4	Battery Port
5	Communication Port
6	AC Port & EPS Port
7	Monitor Module Port

Technical Specification

Model	BSE6KL1
Dimensions (W x H x D, mm)	370513192
Weight (kg)	17
Topology	Transformerless
Cooling	Intelligent Fan
Relatively Humidity	0 - 100 %
Operating Temperature Range (°C)	- 25 to 60
Operating Altitude (m)	< 4000
Noise Emission (dB)	- 25
Standby Consumption (W)	< 10
Mounting	Wall Bracket
Communication with RSD	SUNSPEC
Display & Communication Interfaces	LCD, LED,RS485,CAN,Wi-Fi,GPRS,4G
Certiﬁcation & Approvals	NRS97, G98/G99, EN50549-1, C10/C11, AS 4777, VDE-AR-N4105, VDE0126, IEC62040, IEC62109-1, IEC62109-2
EMC	EN61000-6-2,EN61000-6-3
More Details Please Send Inquiry to Us

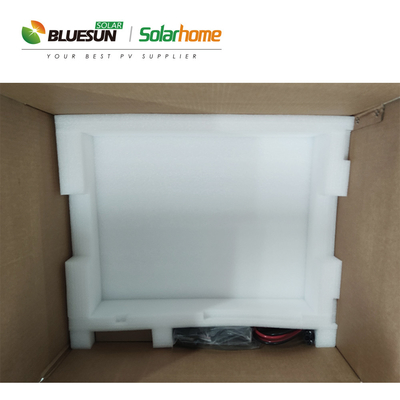

Packing List

No.	Items	Qty
1	Hybrid Inverter	1
2	Certificate Of Inspection	1
3	Quick Installation Instructions	1
4	Warranty Card	1
5	Monitoring Quick Installation Instructions	1
6	CT	1
7	Battery wire	1
8	Security Screw	1
9	Communication Connectors	3
10	Wall Mounting Bracket	1
11	Battery Connector	1
12	Monitor Module	1
13	DC Connector	2
14	Mounting Bracket Screw	3
15	Plastic Expansion Tube	3
16	Smart Meter (Opitional)	1
17	AC Waterproof Cover	1
18	Communication Adapter	1
19	Communication T568B	2
