Name: Ja Bifacial Perc Solar Panels 550w Mono 550watt 555w Double Glass Solar Panel Monocrystalline Manufacturers in China Price
Brand: Bluesun Solar Co., Ltd.
SKU: BSM550M10-72HBD
Availability: InStock

Home Products Solar Panel

Ja Bifacial Perc Solar Panels 550w Mono 550watt 555w Double Glass Solar Panel Monocrystalline Manufacturers in China Price

Product Details:

Place of Origin:	Anhui, China
Brand Name:	Bluesun
Model Number:	BSM550M10-72HBD

Contact Now

Detailed Product Description

Cell Size:	182mmx182mm	Type:	PERC, Half Cell, Bifacial, Double-glass
Panel Dimensions:	2285113435mm	Panel Efficiency:	550W
Weight:	32.2kg	Cable Length:	Portrait 300mm/Landscape 1200mm/Customized
Cable Cross Section Size:	TUV: 4mm2 (0.006inches2 )/UL: 12AWG	Front Glass:	2.0mm (0.08 Inches) AR Coating Semi-tempered Glass
Back Glass:	2.0mm (0.08 Inches) Glazed Semi-tempered Glass	No. Of Bypass Diodes:	3
Packing Configuration (for USA):	31pcs/carton, 558pcs/40hq	Frame:	Anodized Aluminium Alloy
Junction Box:	IP68	Certificate:	CE,UL
Warranty:	25 Years

Advantages of Bluesun

Products Description

Product Paramenters

ELECTRICAL PARAMETERS
Maximum Power (Pmax/W)	530	535	540	545	550
Operating Voltage (Vmpp/V)	41.32	41.48	41.64	41.8	41.96
Operating Current (Impp/A)	12.83	12.9	12.97	13.04	13.11
Open-Circuit Voltage (Voc/V)	49.32	49.46	49.6	49.76	49.92
Short-Circuit Current (Isc/A)	13.72	13.79	13.86	13.93	14
Module Efficiency ηm(%)	20.5	20.6	20.8	21	21.2
Performance at NMOT
Maximum Power (Pmax/W)	395	398	402	406	410
Operating Voltage (Vmpp/V)	38.6	38.7	38.8	39	39.1
Operating Current (Impp/A)	10.24	10.3	10.36	10.41	10.47
Open-Circuit Voltage (Voc/V)	46.4	46.5	46.7	46.8	47.0
Short-Circuit Current (Isc/A)	11.06	11.12	11.17	11.23	11.28

Certificate

Projects

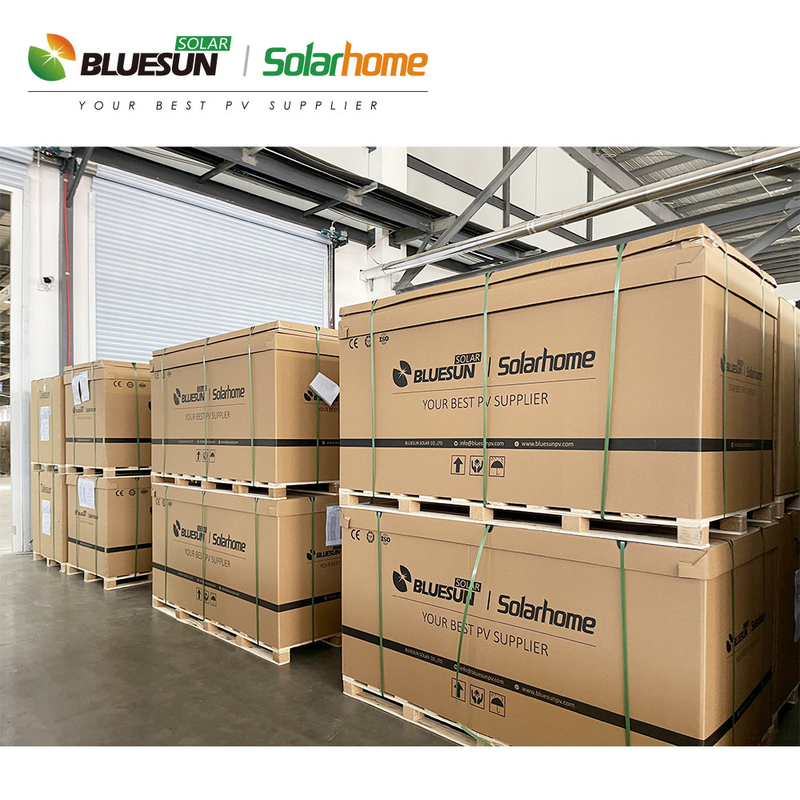

Packing & Delivery

Global Exhibition

Projects

Our Company

Bluesun Solar Co., Ltd. is a global clean energy solution service provider and high-tech photovoltaic module manufacturer. We are committed to providing one-stop energy solutions including energy supply, energy management and energy storage to customers around the world.

Feedback from our customers，if you want to know more information,please feel free to contact us,thanks!

Payment

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
			30% T/T in advance, paid the balance before shipment		FOB
				CNF	30% T/T in advance, paid the balance against copy of B/L
				CIF	30% T/T in advance, paid the balance against copy of B/L
		L/C	L/C amount above 50,000 usd, we can accept L/C at sight
		West Union	Amount lower than 5000usd
Delivery Time	7~10days after receiving payment for one container
