Bluesun 12v-100ah Home Battery Storage System Lifepo4 Solar Lithium Ion Stackable with Smart BMS & CAN Communication Port

Bluesun 12v-100ah Home Battery Storage System Lifepo4 Solar Lithium Ion Stackable with Smart BMS & CAN Communication Port

  • Bluesun 12v-100ah Home Battery Storage System Lifepo4 Solar Lithium Ion Stackable with Smart BMS & CAN Communication Port
  • Bluesun 12v-100ah Home Battery Storage System Lifepo4 Solar Lithium Ion Stackable with Smart BMS & CAN Communication Port
  • Bluesun 12v-100ah Home Battery Storage System Lifepo4 Solar Lithium Ion Stackable with Smart BMS & CAN Communication Port
  • Bluesun 12v-100ah Home Battery Storage System Lifepo4 Solar Lithium Ion Stackable with Smart BMS & CAN Communication Port
  • Bluesun 12v-100ah Home Battery Storage System Lifepo4 Solar Lithium Ion Stackable with Smart BMS & CAN Communication Port
  • Bluesun 12v-100ah Home Battery Storage System Lifepo4 Solar Lithium Ion Stackable with Smart BMS & CAN Communication Port
  • Bluesun 12v-100ah Home Battery Storage System Lifepo4 Solar Lithium Ion Stackable with Smart BMS & CAN Communication Port
Bluesun 12v-100ah Home Battery Storage System Lifepo4 Solar Lithium Ion Stackable with Smart BMS & CAN Communication Port
Product Details:
Contact Now
Detailed Product Description
电池类型: 锂离子电池, 锂离子 型号: BSM48106
品牌: BLUESUN 原产地: Anhui, China
系统电压: 48V 系统能量范围: 10-20KW
系统类型: 可堆叠 类型: 一体化电脑
通信端口: 罐状, Rs232, Rs485 防护等级: IP54
电网连接: 离网, 混合网格 电压: 51.2V
容量: 30KWH 循环寿命: 6000次
工作温度范围: -20 ℃ -60 ℃ 通信: CAN/RS-485
BMS: 智能BMS系统 应用程序: 家用电器
特点: 长循环寿命 材料: LiFePO4高电压版本

Products Description
Bluesun 12v-100ah Home Battery Storage System Lifepo4 Solar Lithium Ion Stackable with Smart BMS & CAN Communication Port 0
Bluesun 12v-100ah Home Battery Storage System Lifepo4 Solar Lithium Ion Stackable with Smart BMS & CAN Communication Port 2
Product Parameters
Bluesun 12v-100ah Home Battery Storage System Lifepo4 Solar Lithium Ion Stackable with Smart BMS & CAN Communication Port 4
MODEL
BST-5.0LV
BST-10.0LV
BST-15.0LV
BST-20.0LV
BST-25.0LV
BST-30.0LV
Battery Type
LiFeP04(LFP)
Nominal Voltage(V)
51.2V
Nominal Capacity(KWH)
5.42KWH
10.85KWH
16.28KWH
21.7KWH
27.13KWH
32.56KWH
Usable Capacity(KWH)
4.87KWH
9.76KWH
14.65KWH
19.53KWH
24.41 KWH
29.30KWH
Design Life
10+Years (25 ℃/77F)
Physical
Dimension(mm)
600*400*385
600*400*534
600*400*683
600*400*832
600*400*981
600*400*1130
Weight (kg)
80
125
170
215
260
305
ELECTRICAL
Cycle Life
>6000. 25°C
Discharge Voltage(V)
40-48
Charge Voltage(V)
56 -58.4
Charge/Discharge Current(A)
83 (Recommended) 100A(Max)
Internal Resistance
≤30mΩ
BMS
Power Consumption
<2W (Work) < 100mW(Sleep)
Monitoring Parameters
System voltage, current, cell voltage,cell temperature, module temperature
SOC
Intelligent algorithm
Communication
CAN/RS-485/RS-232
OPERATION
Operating Temperature Range
-10℃-50℃
Transport or Storage Temperate Range
-20℃-45℃
Humidity
15% - 85% (No Condensing)
WARRANTY
Product Warranty
5 Years
Performance Warranty
10 Years
Matching inverter
High compatibility BMS, seamless communication with energy storage inverter
Bluesun 12v-100ah Home Battery Storage System Lifepo4 Solar Lithium Ion Stackable with Smart BMS & CAN Communication Port 6
Bluesun 12v-100ah Home Battery Storage System Lifepo4 Solar Lithium Ion Stackable with Smart BMS & CAN Communication Port 8
Certifications
Bluesun 12v-100ah Home Battery Storage System Lifepo4 Solar Lithium Ion Stackable with Smart BMS & CAN Communication Port 10

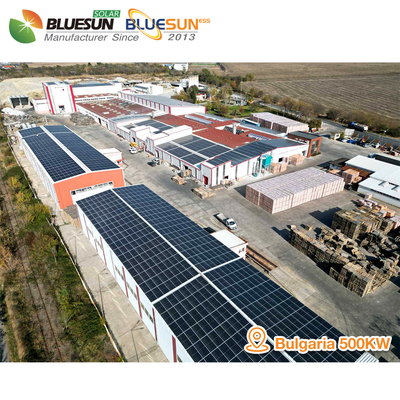

Projects
Bluesun 12v-100ah Home Battery Storage System Lifepo4 Solar Lithium Ion Stackable with Smart BMS & CAN Communication Port 12
Bluesun 12v-100ah Home Battery Storage System Lifepo4 Solar Lithium Ion Stackable with Smart BMS & CAN Communication Port 14
Payment


Payment Term


T/T
EXW

30% T/T in advance, paid the balance before shipment
FOB
CNF

30% T/T in advance, paid the balance against copy of B/L
CIF
L/C
L/C amount above 50,000 usd, we can accept L/C at sight
West Union
Amount lower than 5000usd
Delivery Time
7~10days after receiving payment for one container
