Name: Bluesun HJT Manufacture Bifacial Shingled Solar Power Panel 700W 690W 680W 675Watt Mono Home Use 1000w Solar Panel Complete Kit
Brand: Bluesun Solar Co., Ltd.
Availability: InStock

Home Products Hot Sale Products

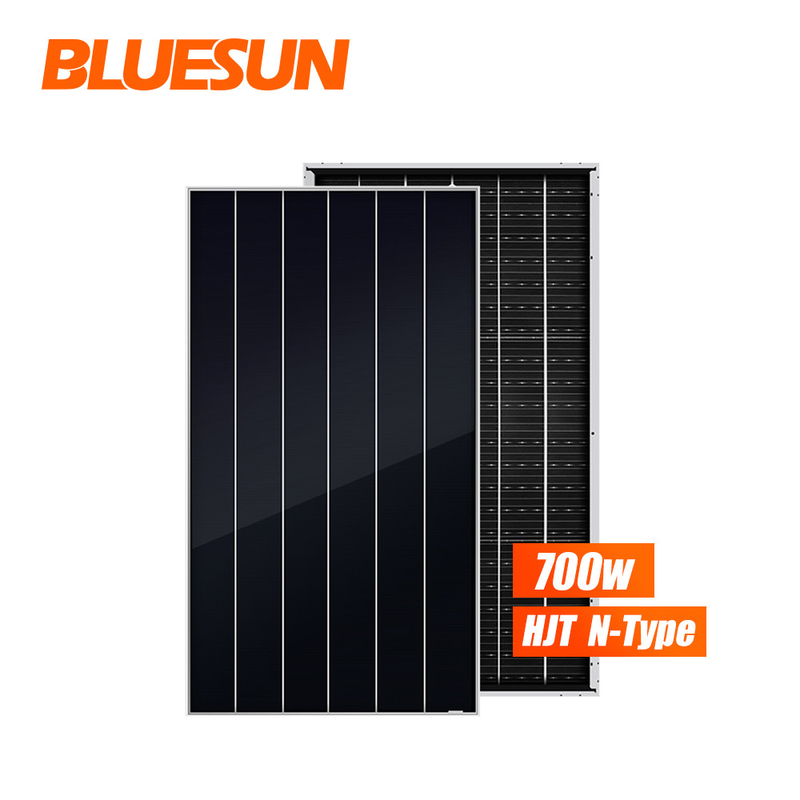

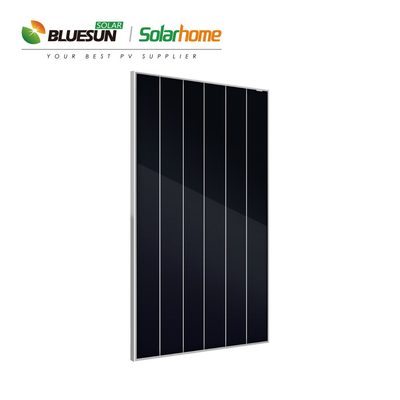

Bluesun HJT Manufacture Bifacial Shingled Solar Power Panel 700W 690W 680W 675Watt Mono Home Use 1000w Solar Panel Complete Kit

Product Details:

Contact Now

Detailed Product Description

品牌:	Bluesun Solar	型号:	BSM700PMB6-60SDC
原产地:	Anhui, China	电池片尺寸:	210mmx210mm
类型:	HJT, N型, 异面	尺寸:	23841096 30mm
组件效率:	22.81%	产品名称:	700w太阳能电池板
框架:	阳极氧化铝合金	太阳能电池:	210mmx210mm
接线盒:	IP68，三个二极管	证书:	TUV CE IEC 61215 / IEC 61730/
前盖:	钢化玻璃，2.0mm	OEM订单:	可接受的太阳能电池板
应用程序:	Sdlar系统	关键词:	N型单声道太阳能电池板
保修:	30年线性电源性能保修

Why Choose Bluesun

We have local warehouse in California USA, Rotterdam and Koper in EU.

Certificate

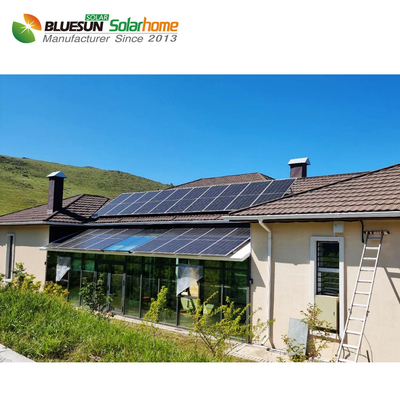

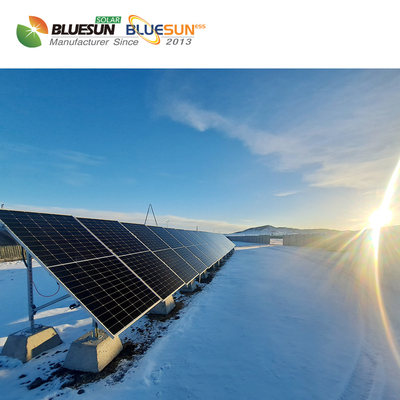

Projects

Bluesun‘s export volume is as high as 22GW, with projects in more than 185 countries around.

Configuration：425W Solar Panel EU Stock

Installation site：Croatia

Configuration：Energy Storage with 700W Double Glass Shingled Solar Panel

Installation site：U.K.

Configuration：440W Black Frame Shingled Solar Panel

Installation site：Sweden Gothenburg

Packing & Delivery

Products Description

SPECIFICATIONS
Module Type	BSM675PMB6-70SDC	BSM680PMB6-70SDC	BSM685PMB6-70SDC	BSM690PMB6-70SDC	BSM695PMB6-70SDC	BSM700PMB6-70SDC
	STC	STC	STC	STC	STC	STC
Maximum Power (Pmax/W)	675	680	685	690	695	700
Operating Voltage (Vmp/V)	39.20	39.30	39.40	39.50	39.60	39.60
Operating Current (Imp/A)	17.23	17.32	17.41	17.49	17.57	17.68
Open-Circuit Voltage (Voc/V)	47.20	47.30	47.40	47.50	47.60	47.70
Short-Circuit Current (Isc/A)	18.32	18.41	18.50	18.59	18.68	18.80
Module Efficiency (%)	21.90	22.10	22.30	22.50	22.60	22.81
STC: Irradiance 1000W/㎡, Cell Temperature 25°C, Air Mass AM1.5

Electrical characteristics with different rear side power gain(refer to700W front)
Pmax gain	Pmax/W	Vmpp/V	Impp/A	Voc/V	Isc/A
5%	735	39.6	18.56	47.7	19.74
10%	770	39.6	19.45	47.7	20.68
15%	805	39.6	20.33	47.7	21.62
20%	840	39.6	21.22	47.8	22.56
25%	875	39.6	22.10	47.8	23.50
More details please inquire us

Advantages Of Shingled Panel

* When the shingled module is installed vertically and the single cell string is shaded, the output power of the shingled module can reach 86.65% of the normal operation. That's 35% more power than the half-cell module.
