Bluesun Flexible Solar Power Panels 150w 160w 200w 12 Volt Flexible Solar Panels

Bluesun Flexible Solar Power Panels 150w 160w 200w 12 Volt Flexible Solar Panels

  • Bluesun Flexible Solar Power Panels 150w 160w 200w 12 Volt Flexible Solar Panels
  • Bluesun Flexible Solar Power Panels 150w 160w 200w 12 Volt Flexible Solar Panels
  • Bluesun Flexible Solar Power Panels 150w 160w 200w 12 Volt Flexible Solar Panels
  • Bluesun Flexible Solar Power Panels 150w 160w 200w 12 Volt Flexible Solar Panels
  • Bluesun Flexible Solar Power Panels 150w 160w 200w 12 Volt Flexible Solar Panels
  • Bluesun Flexible Solar Power Panels 150w 160w 200w 12 Volt Flexible Solar Panels
  • Bluesun Flexible Solar Power Panels 150w 160w 200w 12 Volt Flexible Solar Panels
Bluesun Flexible Solar Power Panels 150w 160w 200w 12 Volt Flexible Solar Panels
Product Details:
Place of Origin: ANH
Brand Name: Bluesun
Model Number: BSM-SFLEX-160W
Contact Now
Detailed Product Description
Cell Size: 166mmx166mm Type: PERC, Half Cell, Flexible
Panel Dimensions: 1170*680*2mm Panel Efficiency: 160W
Nominal Power: 160W Cell Type: Monocrystalline
Module: 20.1% Maximum Power Current: 7.23A
Maximum Power Voltage: 22.12V Open-circuit Voltage: 26.29V
Short-circuit Current: 7.67A Maximum System Voltage: 100V
Junction Box Rating: ≥IP67 Warranty: 25 Years Warranty

Products Description
Bluesun Flexible Solar Power Panels 150w 160w 200w 12 Volt Flexible Solar Panels 0

-Flexible Solar Panel as wafer thin, lightweight, and can mold to a curved surface-

* Uses the highest efficiency mono-crystalline solar technology
* Ultra-light, waterproof, and corrosion resistant making them the perfect option for marine applications, RVs, camping and
emergency back-up charger
* Optional match charge controller required for safer battery charging
.
Mechanical Data
Standard Test Conditions AM=1.5, E=1000W/m2, TC=25℃
Nominal Power
160W
Cell Type

Module
20.1%
Maximum Power Current (Impp)
7.23A
Maximum Power Voltage (Vmpp)
22.12V
Open-circuit Voltage (Voc)
26.29V
Short-circuit Current (Isc)
7..67A
Maximum System Voltage
100V
Output Tolerance
+3%
Cable
900mm /2.5mm2
Connector Type
MC4 / MC4 Compatible
Module Structure
CPC/ EVA / Backsheet
Junction box rating
≥IP67
Number of Diodes
One
Working Temperature
-20℃~+65℃
Packaging

Module Dimensions
1170*680*2mm
Module Weight
2.9kg
Package
Single Package
Pieces per Pallet
60
Gross Weight per Pallet
302kg
Pallet Dimensions
1200*1000*1530mm
Feature Display
Bluesun Flexible Solar Power Panels 150w 160w 200w 12 Volt Flexible Solar Panels 2
Bluesun Flexible Solar Power Panels 150w 160w 200w 12 Volt Flexible Solar Panels 4

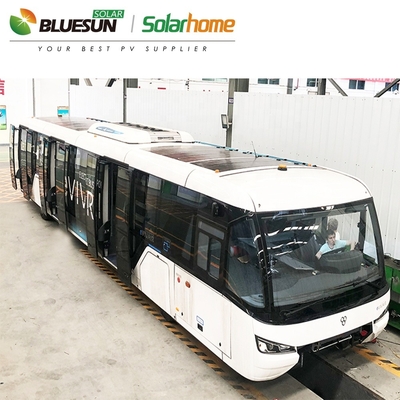

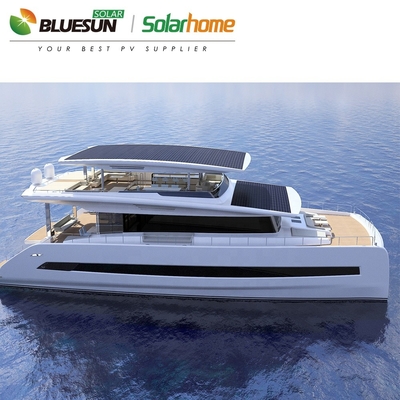

Application Scenario
Bluesun Flexible Solar Power Panels 150w 160w 200w 12 Volt Flexible Solar Panels 6
Our Advantages
Bluesun Flexible Solar Power Panels 150w 160w 200w 12 Volt Flexible Solar Panels 8
Bluesun Flexible Solar Power Panels 150w 160w 200w 12 Volt Flexible Solar Panels 10
Our Company
Bluesun Solar---is one of the solar power solution leading companies in China. Specializing in research and development of solar panel, lithium battery and BMS. Bluesun product has exported to more than 185 countries and regions since 2022. We devote ourselves to provide excellent solar solution.
Bluesun Flexible Solar Power Panels 150w 160w 200w 12 Volt Flexible Solar Panels 12
Bluesun Flexible Solar Power Panels 150w 160w 200w 12 Volt Flexible Solar Panels 14
Bluesun Flexible Solar Power Panels 150w 160w 200w 12 Volt Flexible Solar Panels 16
Our Exhibitions
Bluesun Flexible Solar Power Panels 150w 160w 200w 12 Volt Flexible Solar Panels 18

2023 INTER SOLAR NORTH AMERICA

.
Bluesun Flexible Solar Power Panels 150w 160w 200w 12 Volt Flexible Solar Panels 20

2023 SOLARTECH COLOMBIA

Bluesun Flexible Solar Power Panels 150w 160w 200w 12 Volt Flexible Solar Panels 22

SOLAR SOLUTIONS INT AMSTERDAM

.
Bluesun Flexible Solar Power Panels 150w 160w 200w 12 Volt Flexible Solar Panels 24
2023 SOLARTECH INDONESIA
Bluesun Flexible Solar Power Panels 150w 160w 200w 12 Volt Flexible Solar Panels 26
2023 INTERSOLAR MEXICO
Bluesun Flexible Solar Power Panels 150w 160w 200w 12 Volt Flexible Solar Panels 28
SOLAR & STORAGE LIVE UK 2023
Payment
Payment Term
T/T
EXW
30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F)
30% T/T in advance, paid the balance against copy of B/L
CIF
L/C
L/C amount above 50,000 usd, we can accept L/C at sight
West Union
Amount lower than 5000usd
West Union
Delivery Time
7~10days after receiving payment for one container
