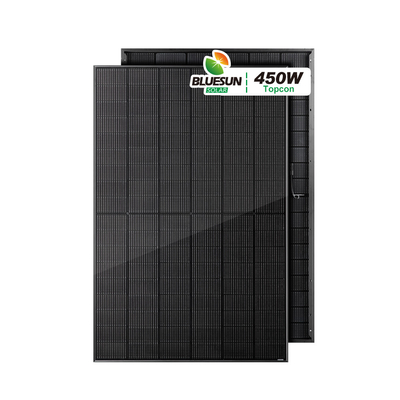

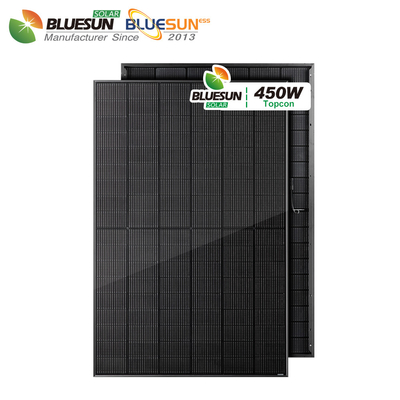

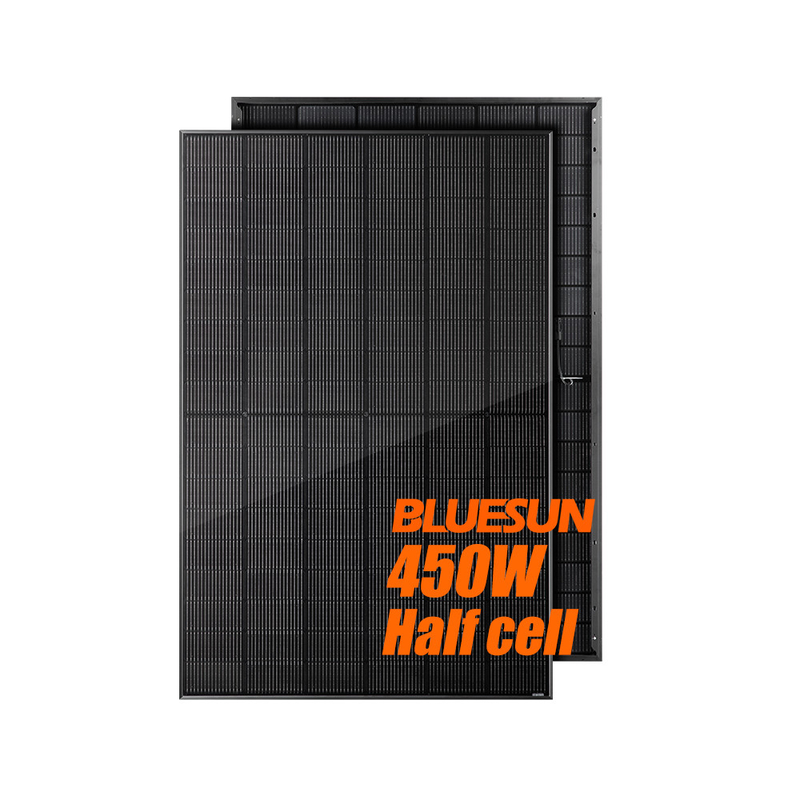

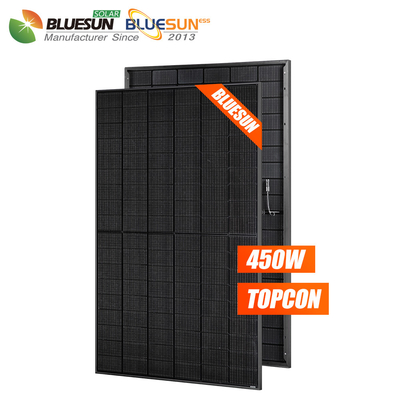

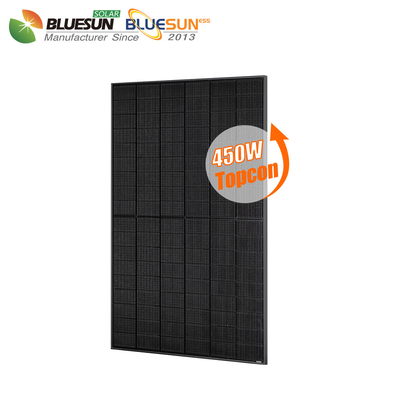

Name: Bluesun High Efficiency Bifacial Monocrystalline Solar Panels Full Black N-type Topcon 440w 450w
Brand: Bluesun Solar Co., Ltd.
SKU: BSM450M10-54HNH
Availability: InStock

Home Products New Arrivals

Bluesun High Efficiency Bifacial Monocrystalline Solar Panels Full Black N-type Topcon 440w 450w

Product Details:

Place of Origin:	Anhui, China
Brand Name:	Bluesun
Model Number:	BSM450M10-54HNH

Contact Now

Detailed Product Description

Cell Size:	182mmx182mm	Type:	PERC, Half Cell, Bifacial, TOPCON
Panel Dimensions:	1722113430mm	Panel Efficiency:	23.2%
Cell Type:	N-type Topcon	Cell Arrangement:	108 (6*18)
No. Of Bypass Diodes:	3	Maximum System Voltage:	1500V DC
Operating Temperature:	-40°C~ +85°C	Maximum Series Fuse:	30A
Weight:	22kg	Junction Box:	IP68 Rated
Static Loading:	Snow Loading: 5400Pa/ Wind Loading: 2400Pa	Connector:	T01/LJQ-3-CSY/VO2
Warranty:	30 Years

Products Description

SPECIFICATIONS
Module Type	BSM445M10-54HNH			BSM450M10-54HNH		BSM565M10-72HPH
Module Type		STC	NMOT	STC	NMOT
Maximum Power (Pmax/W)	445	336	450	340
Operating Voltage(Vmp/V)	32.44	30.14	32.63	30.30
Operating Current(Imp/A)	13.74	11.16	13.82	11.24
Open-Circuit Voltage(Voc/V)	39.05	37.04	39.24	37.20
Short-Circuit Current(Isc/A)	14.48	11.67	14.56	11.73
Module Efficiency（%）	22.79			23.04
STC: Irradiance 1000W/m², Cell Temperature 25°C Air Mass AM1.5
More details please send inquiry to us

Certification

Production& Packing Process

Bluesun Company

Bluesun Solar---is one of the solar power solution leading companies in China. Specializing in research and development of solar panel, lithium battery and BMS.

Our Global Exhibition

INTERSOLAR EUROPE

INTERSOLAR MEXICO

SOLAR SOLUTIONS KORTRIJK

THE FUTURE ENERGY SHOW PHILIPPINES

SOLAR SOLUTIONS INT AMSTERDAM

SOLAR & STORAGE LIVE UK

Projects

Bluesun‘s export volume is as high as 22GW, with projects in more than 185 countries around.

Configuration：425W Solar Panel EU Stock

Installation site：Croatia

Installation time：March 2023

Configuration：Energy Storage with 700W Double Glass Shingled Solar Panel

Installation site：U.K.

Installation time：July 2023

Configuration：440W Black Frame Shingled Solar Panel

Installation site：Sweden Gothenburg

Installation time：September 2023

Payment

Payment Term

T/T

EXW

30% T/T in advance, paid the balance before shipment

FOB

CFR(C&F)

30% T/T in advance, paid the balance against copy of B/L

CIF

L/C

L/C amount above 50,000 usd, we can accept L/C at sight

West Union

Amount lower than 5000usd

West Union

Delivery Time

7~10days after receiving payment for one container

We welcome use Trade Assurance, you'll enjoy:
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount

Contact Me
