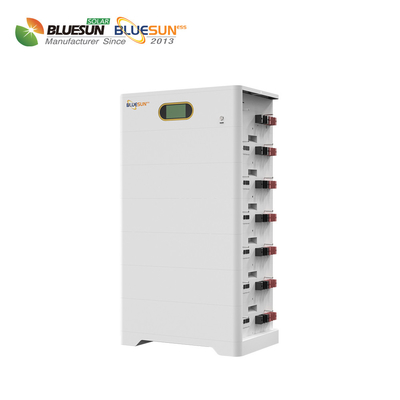

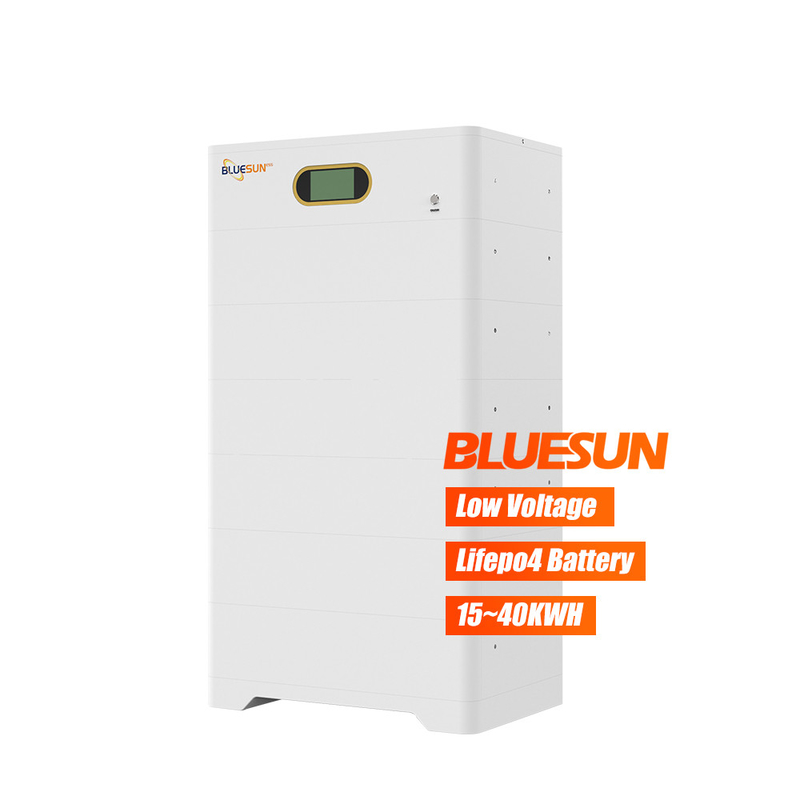

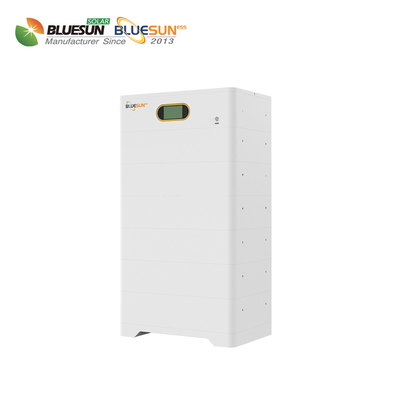

Name: Bluesun Battery 12v Lithium Battery 400ah 300ah 200ah 48v Low Voltage Battery Pack Stacked Use
Brand: Bluesun Solar Co., Ltd.
SKU: BSM48106LP
Availability: InStock

Home Products New Arrivals

Bluesun Battery 12v Lithium Battery 400ah 300ah 200ah 48v Low Voltage Battery Pack Stacked Use

Product Details:

Place of Origin:	Anhui, China
Brand Name:	BLUESUN
Model Number:	BSM48106LP

Contact Now

Detailed Product Description

Battery Type:	Lithium Ion, Lithium Ion	System Voltage:	51.2 V
Output Power Range:	20-50 KWh	Dimension (LWH):	600400167
Weight:	46KG*N+Control Module:13KG+ Battery Base:8KG	System Type:	Stackable
Type:	All-in-one	Communication Port:	CAN, Rs232, Rs485
Protection Class:	IP54	Grid Connection:	Off Grid, Hybrid Grid
Voltage:	51.2V	Cycle Life:	6000 Times
Operating Temperature Range:	-20℃ -60℃	Capacity:	5-40KWH
SOC:	Intelligent Algorithm	Warranty:	10years
Communication:	CAN/RS-485

Products Description

Product Parameters

MODEL

BST-5.0LV

BST-10.0LV

BST-15.0LV

BST-20.0LV

BST-25.0LV

BST-30.0LV

Battery Type

LiFeP04(LFP)

Nominal Voltage(V)

51.2V

Nominal Capacity(KWH)

5.42KWH

10.85KWH

16.28KWH

21.7KWH

27.13KWH

32.56KWH

Usable Capacity(KWH)

4.87KWH

9.76KWH

14.65KWH

19.53KWH

24.41 KWH

29.30KWH

Design Life

10+Years （25 ℃/77F)

Physical

Dimension(mm)

600*400*385

600*400*534

600*400*683

600*400*832

600*400*981

600*400*1130

Weight (kg)

125

170

215

260

305

ELECTRICAL

Cycle Life

>6000. 25°C

Discharge Voltage(V)

40-48

Charge Voltage(V)

56 -58.4

Charge/Discharge Current(A)

83 (Recommended) 100A(Max)

Internal Resistance

≤30mΩ

BMS

Power Consumption

<2W (Work) < 100mW(Sleep)

Monitoring Parameters

System voltage, current, cell voltage,cell temperature, module temperature

SOC

Intelligent algorithm

Communication

CAN/RS-485/RS-232

OPERATION

Operating Temperature Range

-10℃-50℃

Transport or Storage Temperate Range

-20℃-45℃

Humidity

15% - 85% (No Condensing)

WARRANTY

Product Warranty

5 Years

Performance Warranty

10 Years

More Details Please Send Inquiry to Us

Matching inverter

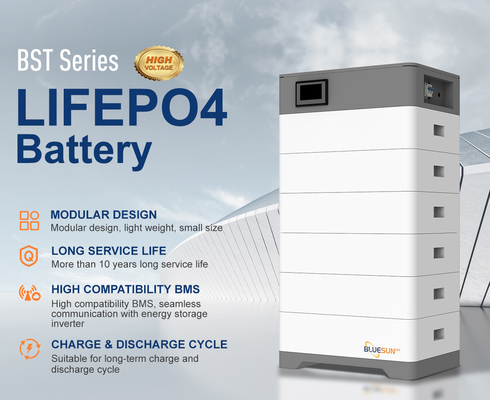

High compatibility BMS, seamless communication with energy storage inverter

Certifications

Projects

Payment

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
			30% T/T in advance, paid the balance before shipment		FOB
				CNF	30% T/T in advance, paid the balance against copy of B/L
				CIF	30% T/T in advance, paid the balance against copy of B/L
		L/C	L/C amount above 50,000 usd, we can accept L/C at sight
		West Union	Amount lower than 5000usd
Delivery Time	7~10days after receiving payment for one container

We welcome use Trade Assurance, you'll enjoy:

100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount

FAQS

1. who are we?
We are based in Anhui, China, start from 2020,sell to Eastern Asia(20.00%),North America(15.00%),Eastern Europe(10.00%),Southeast
Asia(10.00%),Western Europe(10.00%),South America(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),Domestic Market(5.00%),Africa(0.00%),South Asia(0.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;

3.what can you buy from us?
Solar Energy System/On Grid Inverter/Off Grid Inverter/Hybrid Solar Inverter/Lithium Solar Battery/Solar Panel/Hybrid Solar System

4. why should you buy from us not from other suppliers?
Bluesun Ess Co., Ltd. is a technology trade Internet company specializing in solar field, More than 10 years history,Export 400MW+ to over 150 countries annually, 3 Warehouses and 2 factories overseas,7 days 24 hours service,.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency: USD,EUR, JPY, CAD, AUD,HKD, GBP,CNY, CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,Money Gram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken: English, Spanish, Japanese, Portuguese, German, Arabic, French, Russian,Korean, Hindi, Italian

Contact Me
