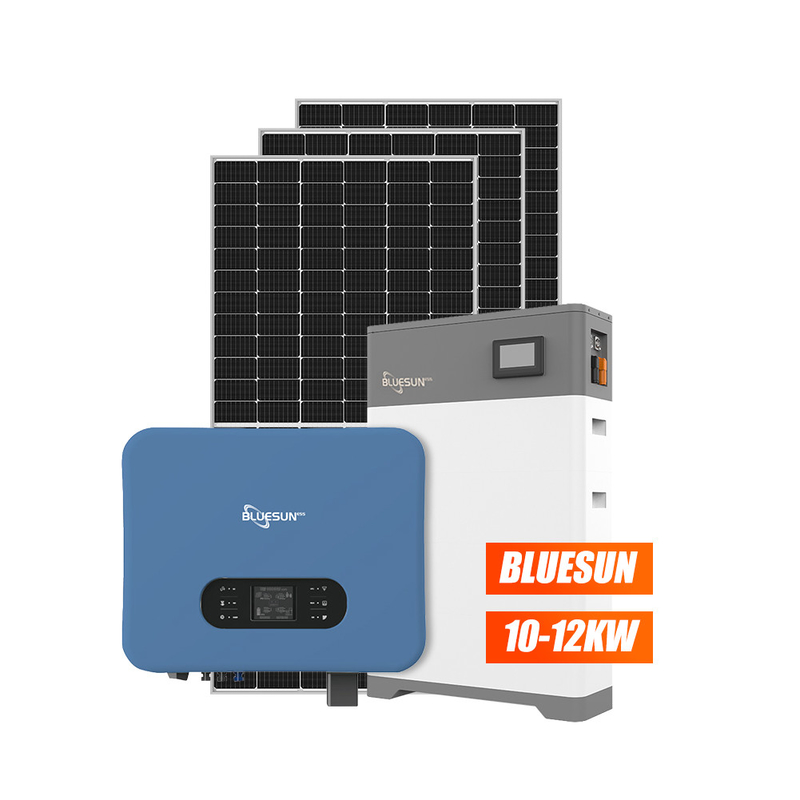

Name: Bluesun Factory All in One Complete Hybrid Solar Energy System 10kw 12kw 15kw Home Solar Power System Solution
Brand: Bluesun Solar Co., Ltd.
Availability: InStock

Home Products Hot Sale Products

Bluesun Factory All in One Complete Hybrid Solar Energy System 10kw 12kw 15kw Home Solar Power System Solution

Product Details:

Contact Now

Detailed Product Description

免费安装服务:	不支持	原产地:	Anhui
品牌:	Bluesun Solar	型号:	BSM10K-HY
用途:	Home	太阳能板类型:	单晶硅
电池类型:	铅酸, 锂离子电池, 铅酸 \ 锂 \ 凝胶	控制器类型:	MPPT
安装方式:	屋顶安装	负载功率:	10KW
输出电压(伏):	230V/380V/480V	输出频率:	60Hz/50Hz
工作时长(小时):	24小时	售前项目设计:	Y
应用程序:	家用太阳能发电系统:	太阳能电池板:	单声道
关键词:	10kw家用太阳能系统	系统类型:	离网/混合
安装结构:	屋顶/地面	电池容量:	48V 200Ah 400Ah / 10Kwh 20Kwh
技术支持:	完整的技术支持	逆变器:	混合逆变器
附件:	连接器	保修期:	5年
认证:	CE, ROHS, TUV, IEC

Products Description

10KW Hybrid Solar Power System Components List
Item	Model	Description	Quantity
1	Solar Panel	Half cut mono solar panel 560w	18 pcs
2	Combiner Box	Optional	1 pc
3	Lithium Battery or Lead Acid Battery	12.8kWh stacked battery	1pc
4	Hybrid Inverter	10kva	1pc
5	Wi-Fi Module	Monitoring device	1 pc
6	Mounting Support	Roof/Ground	1 set
7	Cable	4mm² PV cable	200 m
8	Connector	Solar connector	10pairs
9	Tools Bag	Solar Installation tools	1 set
Kindly Reminder: The Above System Configuration For Initial Designing, The System Configuration Are Subject to Changing Depends on Your Final Installation Conditions and Requirements. More Details Please Send Inquiry to Us

12KW Hybrid Solar Power System Components List
Item	Model	Description	Quantity
1	Solar Panel	Half cut mono solar panel 560w	20 pcs
2	Combiner Box	Optional	1 pc
3	Lithium Battery or Lead Acid Battery	15.36kWh stacked battery	1pc
4	Hybrid Inverter	12kva	1pc
5	Wi-Fi Module	Monitoring device	1 pc
6	Mounting Support	Roof/Ground	1 set
7	Cable	4mm² PV cable	200 m
8	Connector	Solar connector	10 pairs
9	Tools Bag	Solar Installation tools	1 set
Kindly Reminder: The Above System Configuration For Initial Designing, The System Configuration Are Subject to Changing Depends on Your Final Installation Conditions and Requirements. More Details Please Send Inquiry to Us

Main Component

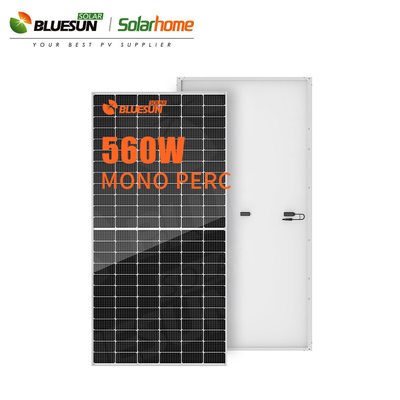

SOLAR PANELS

>BSM560M10-72HPH >Size:2278*1134*35mm >Application Class: A

>IEC 61215 / IEC 61730 /CE
>25 Years Warranty

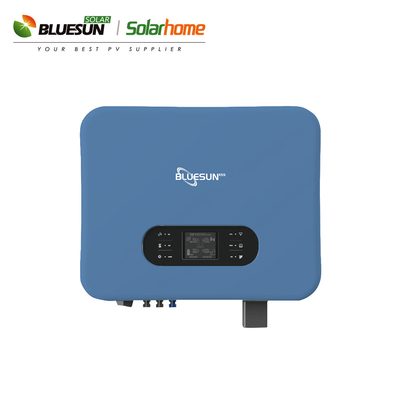

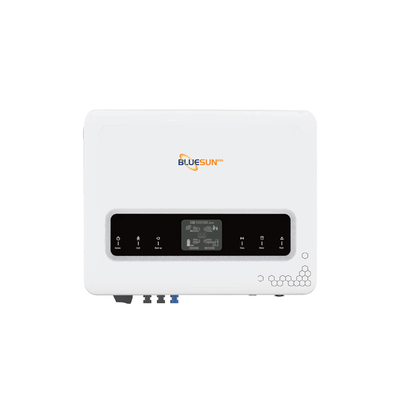

HYBRID SOLAR INVERTERS

> BSE10KH3/BSE12KH3

> With WIFI+CT

> 10/12KW Hybrid inverter

> 380/400V 50Hz three phase

> Built in MPPT controlle

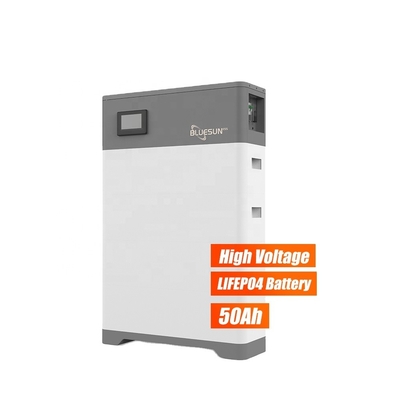

STACKABLE LITHIUM DATTERY

> BSM4850HP

> 51.2V 50AH
>Battery cables + BMS high voltage box + base.

ACCESSORIES

> PV Cable 4mm2 6mm2
> AC Cable
> DC Switches
> AC Breaker

MOUNTING STRUCTURE

> Residential Roof(Pitched Roof)
> Commercial Roof(Flat roof&workshop roof)
> Ground Solar Mounting system
> Vertical wall solar mounting system
> All aluminum structure solar mounting system
> Car parking solar mounting system
