Name: Flexible Shingle Solar Panel Monocrystalline Semi-flexible Solar Panel 100 Watt Solar Panel Set
Brand: Bluesun Solar Co., Ltd.
SKU: BSM-SFLEX-160W
Availability: InStock

Home Products Solar Panel

Flexible Shingle Solar Panel Monocrystalline Semi-flexible Solar Panel 100 Watt Solar Panel Set

Product Details:

Place of Origin:	Anhui, China
Brand Name:	Bluesun
Model Number:	BSM-SFLEX-160W

Contact Now

Detailed Product Description

Cell Size:	158.75mmx158.75mm	Panel Dimensions:	12206802mm
Panel Efficiency:	21.4%	Cell Type:	Monocrystalline
Module Structure:	ETFE / EVA / Backsheet	Weight:	3.5kg
Product Name:	Flexible Solar Panel	Output Tolerance:	+3%
Pieces Per Pallet:	33	Cable:	900mm / 2.5mm2
Module Dimensions:	12506802mm	Nominal Power:	160w
Cell Efficiency:	21.4%

Products Description

Innovative Shingled Technology

*Lightness, Thinness Flexibility
*New Tech , Thin Flip Power Panel
*Power Your Solar Ship

Technical Specification

Mechanical Data
Standard Test Conditions AM=1.5, E=1000W/m2, TC=25℃

Nominal Power

60W

110W

160W

Cell Type

Monocrystalline

Cell Efficiency

21.40%

Maximum Power Current (Impp)

3.30A

5.71A

7.27A

Maximum Power Voltage (Vmpp)

18.15V

19.25V

22V

Open-circuit Voltage (Voc)

21.45V

22.75V

26V

Short-circuit Current (Isc)

3.81A

6.22A

7.79A

Maximum System Voltage

100V

Output Tolerance

3.00%

Cable

900mm / 1.5mm2

900mm / 2.5mm2

Connector Type

MC4 / MC4 Compatible

Module Structure

ETFE / EVA / Backsheet

Junction box rating

≥IP67

Number of Diodes

One

Working Temperature

-40℃~+80℃

Packaging

Module Dimensions

880*350*2mm

1130*520*2mm

1220*680*2mm

Module Weight

1.3kg

2.5kg

3.5kg

Package

Single Package

Pieces per Pallet

Gross Weight per Pallet

120kg

115kg

135kg

Pallet Dimensions

1200*1100*700mm

1240*1100*840mm

Applications

Diverse Application

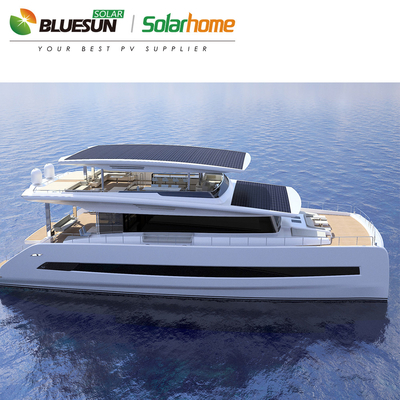

Cruise, Residential roof, Low Speed Vehicle (mopeds, sightseeing cars and buses, dining cars, less than 70 km/h)
