Name: Solar Panel Set up Cost N-type TopCon 590w Solar Panels Manufacturing Machine Solar Pv Panel Ground Mounting Brackets Structure
Brand: Bluesun Solar Co., Ltd.
Availability: InStock

Home Products 182mm Solar Panel

Solar Panel Set up Cost N-type TopCon 590w Solar Panels Manufacturing Machine Solar Pv Panel Ground Mounting Brackets Structure

Product Details:

Contact Now

Detailed Product Description

品牌:	BLUESUN	型号:	BSM590M10-72HNH
原产地:	Anhui, China	电池片尺寸:	182mmx182mm
类型:	半电池, 异面, 双层-玻璃, N型, 拓普康	尺寸:	22781134 30mm
组件效率:	22.8%	细胞类型:	N型Topcon
细胞排列:	144 (6*24	旁路二极管的编号:	3
重量:	32.7kg	模块尺寸:	22781134 30mm
电缆截面尺寸:	TUV: 4毫米 (0.006英寸)/UL: 12AWG	包装配置:	36pcs/纸箱，720pcs/40hq
框架:	阳极氧化铝合金	接线盒:	IP68
最大系统电压:	1500V DC	保修期:	25年

Products Description

SPECIFICATIONS
Module Type	BSM580M10-72HNH			BSM585M10-72HNH			BSM590M10-72HNH		BSM595M10-72HNH
	STC	NMOT	STC	NMOT	STC	NMOT	STC	NMOT
Maximum Power (Pmax/W)	580	436.2	585	440	590	444	595	448
Operating Voltage (VmpM	43.28	40.05	43.48	40.1	43.68	40.15	43.88	40.2
Operating Current (lmp/A)	13.41	10.86	13.47	10.94	13.53	10.86	13.59	11.1
Open-Circuit Voltage (Voc/ V)	51.64	49.05	51.84	49.24	52.04	49.05	52.24	49.62
Short-Circuit Current (lsc/A)	14.29	11.6	14.33	11.64	14.37	11.6	14.41	11.72
Module Efficiency(%)	22.5			22.7			22.8		23.0
STC: Iradiance 1000W/m²,Cell Temperature 25°C, Air Mass AM1.5 ; NMOT: Iradiance at 800W/m², Ambient Temperatue 20°C, Air Mass AM1.5, Wind Speed 1m/s
More Details Please Send Inquiry to Us

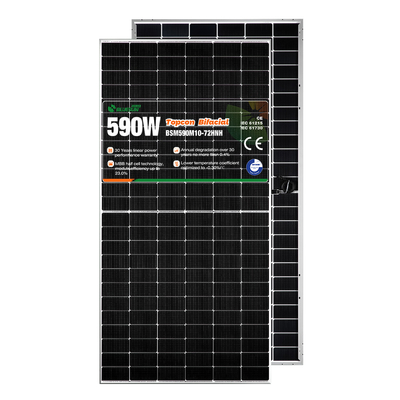

Bluesun Topcon Solar Panel

Projects

Bluesun‘s export volume is as high as 22GW, with projects in more than 185 countries around the world.

Our Company

Bluesun Solar---is one of the solar power solution leading companies in China. Specializing in research and development of solar panel, lithium battery and BMS. Bluesun product has exported to more than 185 countries and regions since 2022. We devote ourselves to provide excellent solar solution.

Our Exhibitions

2023 INTER SOLAR NORTH AMERICA

2023 SOLARTECH INDONESIA

SOLAR SOLUTIONS INT Amsterdam

Payment

Payment Term

T/T

EXW

30% T/T in advance, paid the balance before shipment

FOB

CFR(C&F)

30% T/T in advance, paid the balance against copy of B/L

CIF

L/C

L/C amount above 50,000 usd, we can accept L/C at sight

West Union

Amount lower than 5000usd

West Union

Delivery Time

7~10days after receiving payment for one container

We welcome use Trade Assurance, you'll enjoy:
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount
