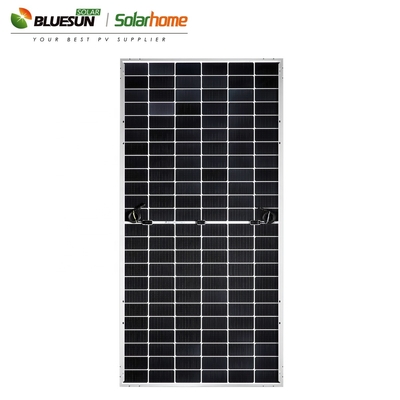

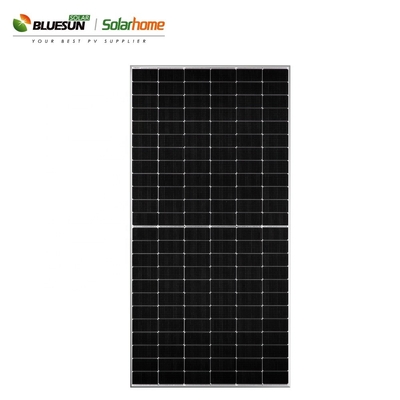

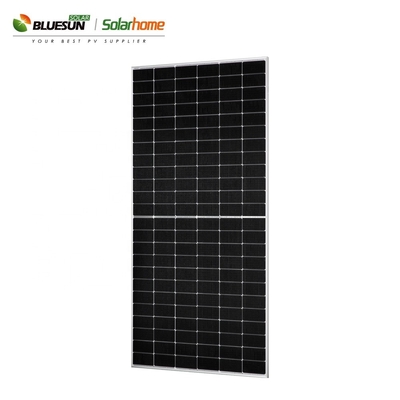

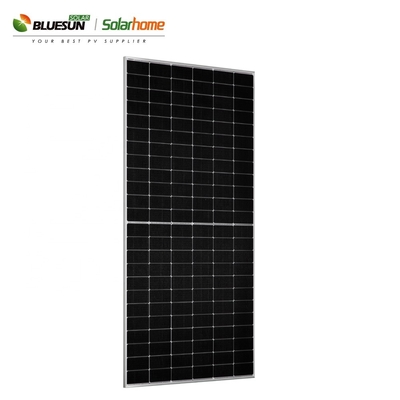

Name: Bluesun 550w Power Photovoltaic Supply Double Glass Bifacial Solar Energy Panel 530w 540w 590w Components European Inventory
Brand: Bluesun Solar Co., Ltd.
Availability: InStock

Home Products 182mm Solar Panel

Bluesun 550w Power Photovoltaic Supply Double Glass Bifacial Solar Energy Panel 530w 540w 590w Components European Inventory

Product Details:

Contact Now

Detailed Product Description

品牌:	Bluesun	型号:	BSM590M10-72HNH
原产地:	Anhui, China	电池片尺寸:	182mmx182mm
类型:	半电池, 异面, Topcon	尺寸:	22781134 30mm
组件效率:	22.7%	产品名称:	BSM590M10-72HNH
接线盒:	IP68额定	应用程序:	太阳能发电系统
连接器:	兼容连接器	玻璃:	3.2mm高透射钢化玻璃
电缆:	4mm2	框架颜色:	银黑色
底片:	2.0mm热强化玻璃	最大系统电压:	1000V/1500V DC
重量:	32.7kg	保修期:	30年

Products Description

SPECIFICATIONS
Module Type	BSM580M10-72HNH			BSM585M10-72HNH			BSM590M10-72HNH		BSM595M10-72HNH
	STC	NMOT	STC	NMOT	STC	NMOT	STC	NMOT
Maximum Power (Pmax/W)	580	436.2	585	440	590	444	595	448
Operating Voltage (VmpM	43.28	40.05	43.48	40.1	43.68	40.15	43.88	40.2
Operating Current (lmp/A)	13.41	10.86	13.47	10.94	13.53	10.86	13.59	11.1
Open-Circuit Voltage (Voc/ V)	51.64	49.05	51.84	49.24	52.04	49.05	52.24	49.62
Short-Circuit Current (lsc/A)	14.29	11.6	14.33	11.64	14.37	11.6	14.41	11.72
Module Efficiency(%)	22.5			22.7			22.8		23.0
STC: Iradiance 1000W/m²,Cell Temperature 25°C, Air Mass AM1.5 ; NMOT: Iradiance at 800W/m², Ambient Temperatue 20°C, Air Mass AM1.5, Wind Speed 1m/s
More Details Please Send Inquiry to Us

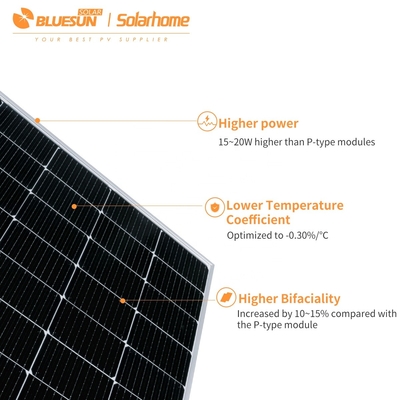

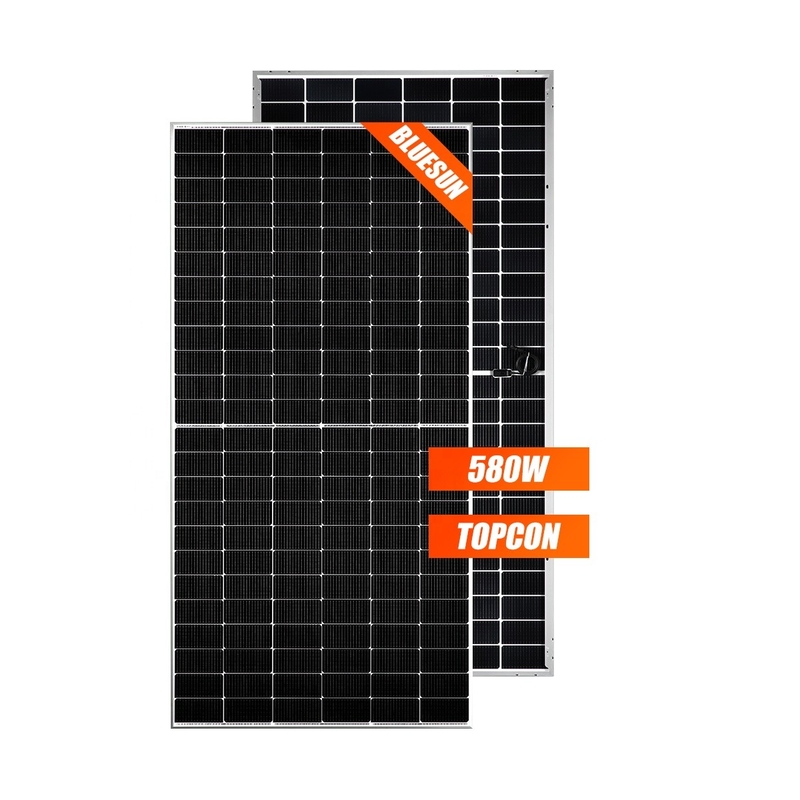

Bluesun Topcon Solar Panel

Projects

Bluesun‘s export volume is as high as 22GW, with projects in more than 185 countries around the world.

Our Company

Bluesun Solar---is one of the solar power solution leading companies in China. Specializing in research and development of solar panel, lithium battery and BMS. Bluesun product has exported to more than 185 countries and regions since 2022. We devote ourselves to provide excellent solar solution.

Our Exhibitions

2023 INTER SOLAR NORTH AMERICA

2023 SOLARTECH INDONESIA

SOLAR SOLUTIONS INT Amsterdam

Payment

Payment Term

T/T

EXW

30% T/T in advance, paid the balance before shipment

FOB

CFR(C&F)

30% T/T in advance, paid the balance against copy of B/L

CIF

L/C

L/C amount above 50,000 usd, we can accept L/C at sight

West Union

Amount lower than 5000usd

West Union

Delivery Time

7~10days after receiving payment for one container

We welcome use Trade Assurance, you'll enjoy:
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount
