Name: Bluesun BSM-SFLEX-60W 50W 60W 70W 80W Mono Solar Panel Semi-Flexible Shingled 60W Solar Panel Price
Brand: Bluesun Solar Co., Ltd.
Availability: InStock

Home Products Flexible Solar Panel

Bluesun BSM-SFLEX-60W 50W 60W 70W 80W Mono Solar Panel Semi-Flexible Shingled 60W Solar Panel Price

Product Details:

Contact Now

Detailed Product Description

品牌:	Bluesun	型号:	BSM-SFLEX-60W-ETFE
原产地:	Anhui, China	电池片尺寸:	158.75mmx158.75mm
面板尺寸:	880350 2mm	组件效率:	21.4%
产品名称:	柔性太阳能电池板	模块结构:	ETFE / EVA/背板
细胞类型:	单晶	电缆:	900mm / 1.5mm2
输出公差:	+ 3%	重量:	1.3kg
每个托盘的件数:	56	模块尺寸:	880350 2mm
电池效率:	21.4%	标称功率:	60瓦

Products Description

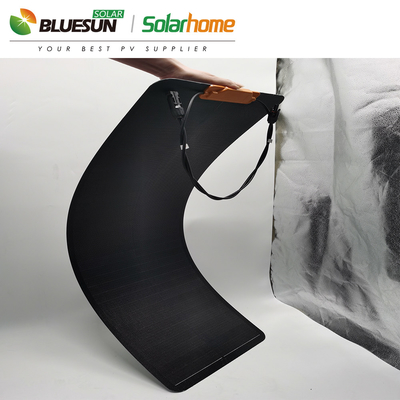

-Flexible Solar Panel as wafer thin, lightweight, and can mold to a curved surface

* Uses the highest efficiency mono-crystalline solar technology
* Ultra-light, waterproof, and corrosion resistant making them the perfect option for marine applications, RVs, camping and
emergency back-up charger
* Optional match charge controller required for safer battery charging

Technical Specification

Mechanical Data
Standard Test Conditions AM=1.5, E=1000W/m2, TC=25℃

Nominal Power

60W

110W

160W

Cell Type

Monocrystalline

Cell Efficiency

21.40%

Maximum Power Current (Impp)

3.30A

5.71A

7.27A

Maximum Power Voltage (Vmpp)

18.15V

19.25V

22V

Open-circuit Voltage (Voc)

21.45V

22.75V

26V

Short-circuit Current (Isc)

3.81A

6.22A

7.79A

Maximum System Voltage

100V

Output Tolerance

3.00%

Cable

900mm / 1.5mm2

900mm / 2.5mm2

Connector Type

PV Compatible

Module Structure

ETFE / EVA / Backsheet

Junction box rating

≥IP67

Number of Diodes

One

Working Temperature

-40℃~+80℃

Semi-flexible Panels are weather, water and corrosion resistant making them a perfect option for marine applications, RVs, camping and emergency back-up. These panels can continuously recharge batteries with the power of the sun. Light enough and durable enough to mount permanently outdoors on a range of vehicles.

Feature Display

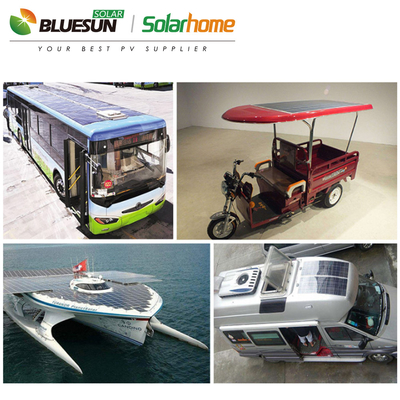

Application Scenario

* Camping trips, as power banks on your tent. They can also be safely rolled and stored when not in use. (These are also called camping solar panels.

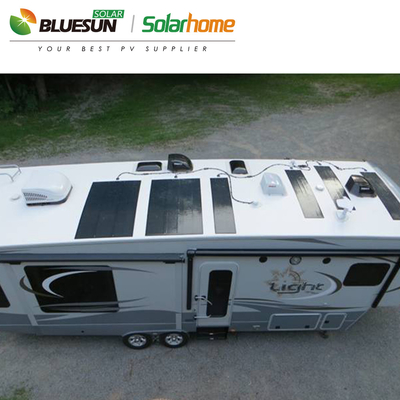

* Long-distance travel in an RV. Of course, you could also carry a noisy generator for your power needs, or simply enjoy a serene drive with a flexible solar panel installed on your RV!
* For boating/fishing/yachting trips. Again, ditch the generator, and let the fish be lured by the serenity of your noise-free environment.
* Daily power backup. Do you find yourself constantly on the road, perhaps off the grid, panicking about your phone losing charge? Instead, you can slap on a flexible solar panel on top of your vehicle and allow it to serve as your sleek, eco-friendly power-bank.

Packing & Delivery

*Exquisite Packaging is Suitable for E-Commerce Sales & Resale

Single Package

Packing specification 30/33/56 Pieces per Pallet

Packaging
Module Dimensions	8803502mm	11305202mm	12206802mm
Module Weight	1.3KG	2.5KG	3.5KG
Package	Single Package
Pieces per Pallet	56	33	30
Gross Weight per Pallet	12001100700mm	12001100700mm	12401100840mm

FAQS

Certifications

Payment

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
			30% T/T in advance, paid the balance before shipment		FOB
				CNF	30% T/T in advance, paid the balance against copy of B/L
				CIF	30% T/T in advance, paid the balance against copy of B/L
		L/C	L/C amount above 50,000 usd, we can accept L/C at sight
		West Union	Amount lower than 5000usd
Delivery Time	7~10days after receiving payment for one container
