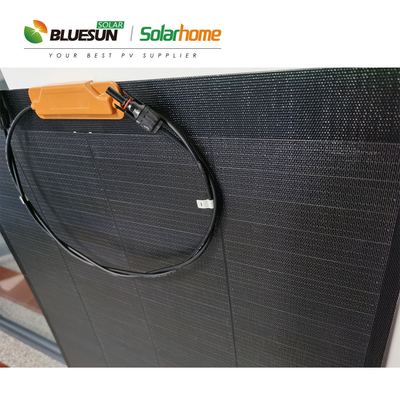

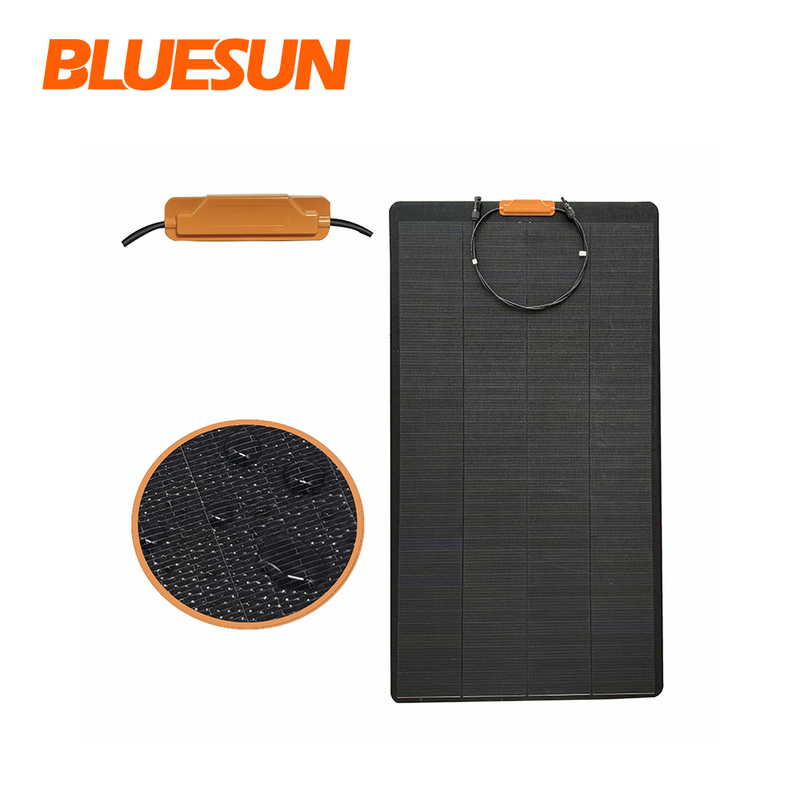

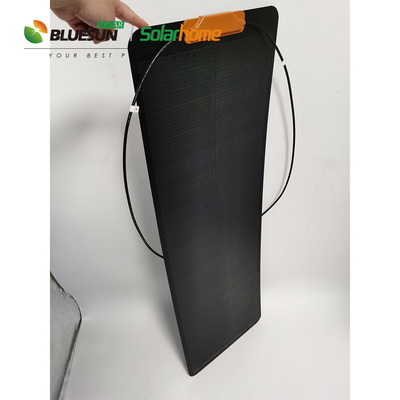

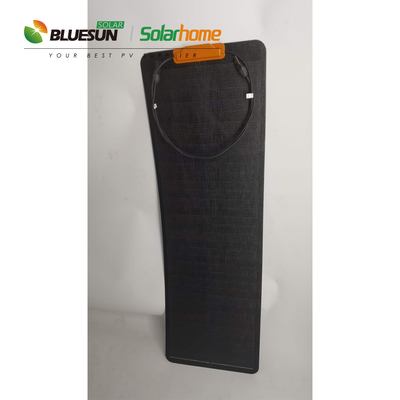

Name: BLUESUN All Black 100W 18V ETFE 200W Flexible 180W Solar Panel 110W 160W Free Shipping
Brand: Bluesun Solar Co., Ltd.
SKU: BSM-SFLEX-160W
Availability: InStock

Home Products Flexible Solar Panel

BLUESUN All Black 100W 18V ETFE 200W Flexible 180W Solar Panel 110W 160W Free Shipping

Product Details:

Place of Origin:	Anhui
Brand Name:	BLUESUN
Model Number:	BSM-SFLEX-160W

Contact Now

Detailed Product Description

Cell Size:	166mmx166mm	Panel Dimensions:	12206802mm
Panel Efficiency:	21.4%	Product Name:	160W Shingled Semi-Flexible Solar Panels
Maximum System Voltage:	100V	Module Weight:	3.5KG
Cable:	900mm / 2.5mm2	Warranty:	2 Years Manufacturer Warranty, 10 Years 80% Of Power Output
Working Temperature:	-40℃~+80℃	Module Structure:	Aluminum Frame / Glass / EVA / Backsheet (Black/White)
Pallet Dimensions:	12401100840mm	Gross Weight Per Pallet:	135KG
Certificate:	CE

Products Description

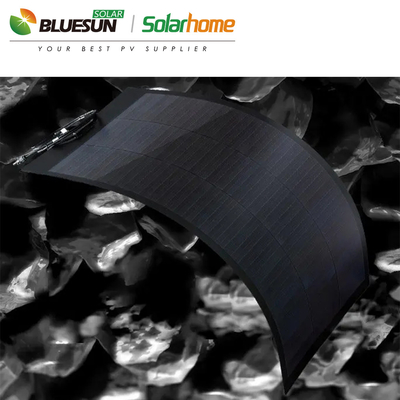

-Flexible Solar Panel as wafer thin, lightweight, and can mold to a curved surface

* Uses the highest efficiency mono-crystalline solar technology
* Ultra-light, waterproof, and corrosion resistant making them the perfect option for marine applications, RVs, camping and
emergency back-up charger
* Optional match charge controller required for safer battery charging

Technical Specification

Mechanical Data
Standard Test Conditions AM=1.5, E=1000W/m2, TC=25℃

Nominal Power

60W

110W

160W

Cell Type

Monocrystalline

Cell Efficiency

21.40%

Maximum Power Current (Impp)

3.30A

5.71A

7.27A

Maximum Power Voltage (Vmpp)

18.15V

19.25V

22V

Open-circuit Voltage (Voc)

21.45V

22.75V

26V

Short-circuit Current (Isc)

3.81A

6.22A

7.79A

Maximum System Voltage

100V

Output Tolerance

3.00%

Cable

900mm / 1.5mm2

900mm / 2.5mm2

Connector Type

PV Compatible

Module Structure

ETFE / EVA / Backsheet

Junction box rating

≥IP67

Number of Diodes

One

Working Temperature

-40℃~+80℃

Semi-flexible Panels are weather, water and corrosion resistant making them a perfect option for marine applications, RVs, camping and emergency back-up. These panels can continuously recharge batteries with the power of the sun. Light enough and durable enough to mount permanently outdoors on a range of vehicles.

Feature Display

Application Scenario

* Camping trips, as power banks on your tent. They can also be safely rolled and stored when not in use. (These are also called camping solar panels.
* Long-distance travel in an RV. Of course, you could also carry a noisy generator for your power needs, or simply enjoy a serene drive with a flexible solar panel installed on your RV!

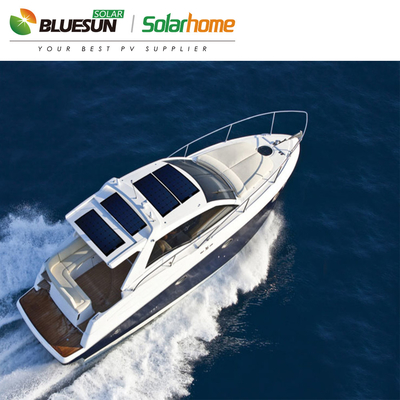

* For boating/fishing/yachting trips. Again, ditch the generator, and let the fish be lured by the serenity of your noise-free environment.
* Daily power backup. Do you find yourself constantly on the road, perhaps off the grid, panicking about your phone losing charge? Instead, you can slap on a flexible solar panel on top of your vehicle and allow it to serve as your sleek, eco-friendly power-bank.

Packing & Delivery

*Exquisite Packaging is Suitable for E-Commerce Sales & Resale

Single Package

Packing specification 30/33/56 Pieces per Pallet

Packaging
Module Dimensions	8803502mm	11305202mm	12206802mm
Module Weight	1.3KG	2.5KG	3.5KG
Package	Single Package
Pieces per Pallet	56	33	30
Gross Weight per Pallet	12001100700mm	12001100700mm	12401100840mm
