Name: Bluesun Custom 135W Semi Flexible Solar Panel 60W 110W 160W Solar Panel Flexible Folder
Brand: Bluesun Solar Co., Ltd.
SKU: BSM-SFLEX-160W
Availability: InStock

Home Products Flexible Solar Panel

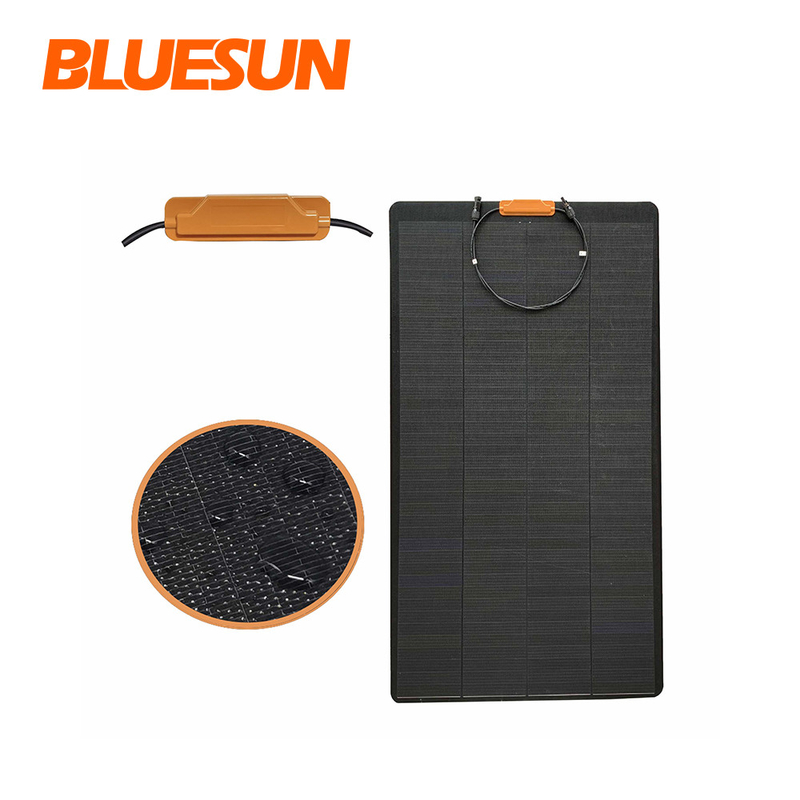

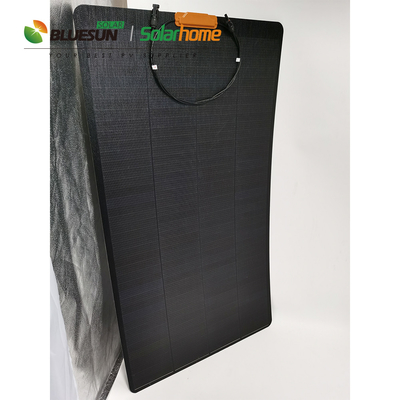

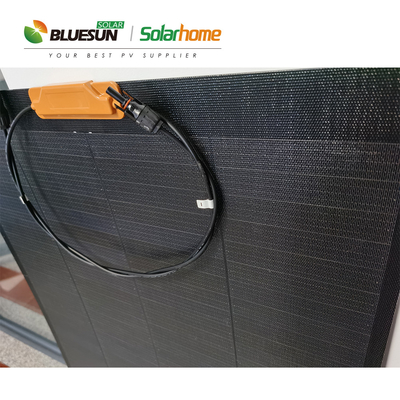

Bluesun Custom 135W Semi Flexible Solar Panel 60W 110W 160W Solar Panel Flexible Folder

Product Details:

Place of Origin:	Anhui, China
Brand Name:	Bluesun
Model Number:	BSM-SFLEX-160W

Contact Now

Detailed Product Description

Cell Size:	125mmx125mm	Type:	Flexible, Overlapping
Panel Dimensions:	12206802mm	Panel Efficiency:	21.4%
Cell Type:	Monocrystalline	Weight:	3.5kg
Product Name:	Flexible Solar Panel	Module Structure:	ETFE / EVA / Backsheet
Output Tolerance:	+3%	Nominal Power:	160w
Pieces Per Pallet:	33	Module Dimensions:	12506802mm
Cable:	900mm / 2.5mm2	Cell Efficiency:	21.4%
Warranty:	25 Years

Products Description

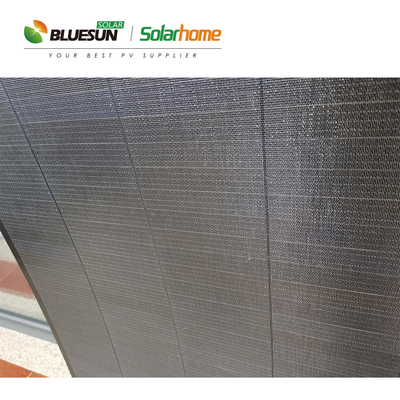

Innovative Shingled Technology

*Lightness, Thinness Flexibility
*New Tech , Thin Flip Power Panel
*Power Your Solar Ship

Technical Specification

Mechanical Data
Standard Test Conditions AM=1.5, E=1000W/m2, TC=25℃

Nominal Power

60W

110W

160W

Cell Type

Monocrystalline

Cell Efficiency

21.40%

Maximum Power Current (Impp)

3.30A

5.71A

7.27A

Maximum Power Voltage (Vmpp)

18.15V

19.25V

22V

Open-circuit Voltage (Voc)

21.45V

22.75V

26V

Short-circuit Current (Isc)

3.81A

6.22A

7.79A

Maximum System Voltage

100V

Output Tolerance

3.00%

Cable

900mm / 1.5mm2

900mm / 2.5mm2

Connector Type

MC4 / MC4 Compatible

Module Structure

ETFE / EVA / Backsheet

Junction box rating

≥IP67

Number of Diodes

One

Working Temperature

-40℃~+80℃

Packaging

Module Dimensions

880*350*2mm

1130*520*2mm

1220*680*2mm

Module Weight

1.3kg

2.5kg

3.5kg

Package

Single Package

Pieces per Pallet

Gross Weight per Pallet

120kg

115kg

135kg

Pallet Dimensions

1200*1100*700mm

1240*1100*840mm

Applications

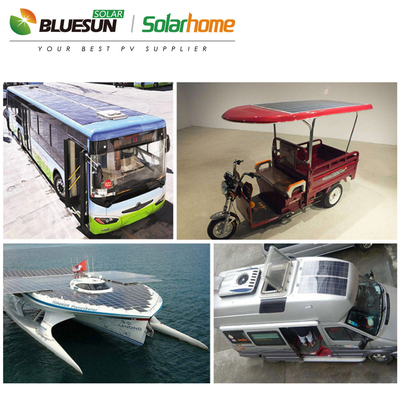

Diverse Application

Cruise, Residential roof, Low Speed Vehicle (mopeds, sightseeing cars and buses, dining cars, less than 70 km/h)

Product packaging

Global Exhibition

Projects

Payment

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
			30% T/T in advance, paid the balance before shipment		FOB
				CNF	30% T/T in advance, paid the balance against copy of B/L
				CIF	30% T/T in advance, paid the balance against copy of B/L
		L/C	L/C amount above 50,000 usd, we can accept L/C at sight
		West Union	Amount lower than 5000usd
Delivery Time	7~10days after receiving payment for one container
