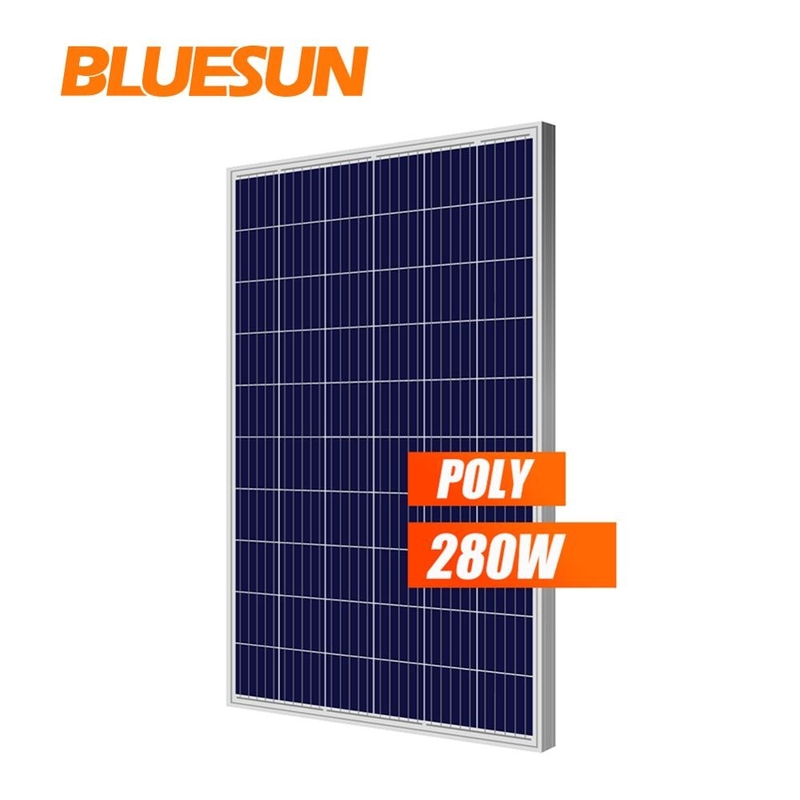

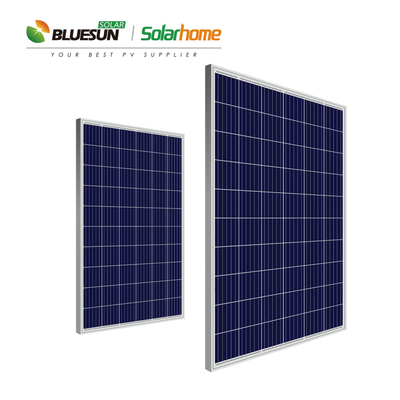

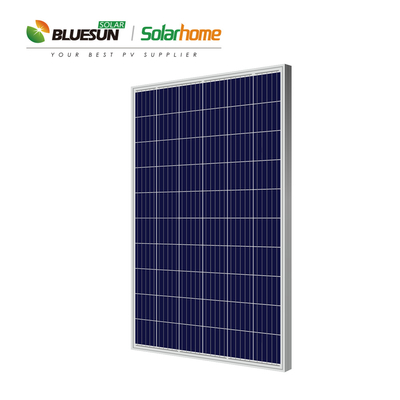

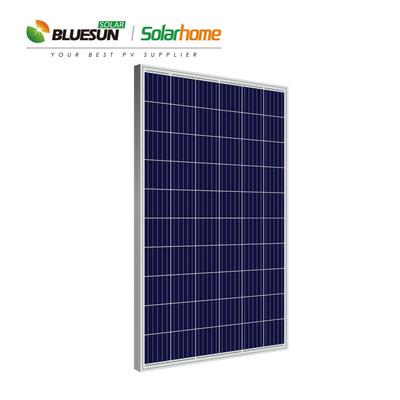

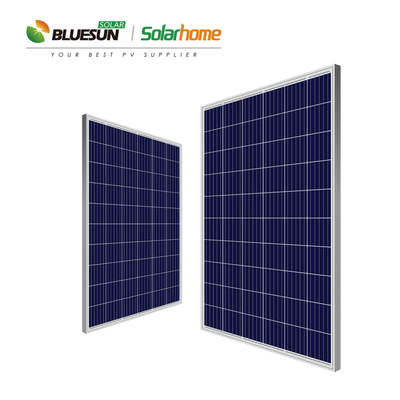

Best Price Amerisolar 250w Solar Panel 250w 270w 280w 290w Panel Solar Price

Product Details:

Place of Origin:	Anhui, China
Brand Name:	Bluesun Solar
Model Number:	BSM280P-60

Contact Now

Detailed Product Description

Cell Size:	125mmx125mm	Type:	PERC, Poly, Solar Panel
Panel Dimensions:	164099240mm	Panel Efficiency:	280W
Certificate:	TUV	Solar Cell:	Poly 156x156mm
Junction Box:	IP65 Rated	Warranty:	25 Years Output Power Guarantee, 25years
Frame:	Anodized Aluminium Alloy	Color:	Blue Ad Black
OEM Order:	Acceptable	Front Cover:	3.2mm High Transmission, Low Iron

Product Description

Moduel	BSM270P-60	BSM275P-60	BSM280P-60	BSM285P-60	BSM290P-60
Rated Maximum Power at STC	270W	275W	280W	285W	290W
Open CircuitVoltage(Voc/V)	38.3	38.46	38.85	38.95	40.03
Maximum Power Voltage(Vmp/V)	31.21	31.54	31.88	32.19	32.43
Short Circuit Current(Isc/A)	9.16	9.22	9.33	9.43	9.54
Maximum Power Current(Imp/A)	8.65	8.72	8.78	8.85	8.92
Module Efficiency(%)	16.51	16.82	17.12	17.55	17.82
Power Tolerance	-0~+5W
Standard Test Condition(STC)	Irradiance 1000W/m2,Cell Temperature 25℃,Air Mass1.5

Detailed

Glass

> Antireflective glass
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years (30 years optional)

Solar Cell

> High Efficiency PV Cells
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID

Frame

> Conventional frame
> Silver or black frames are optional
> Boost bearing capability and prolong service life
> Serrated-clip design tensile strength
> Seal-lip designglue injection

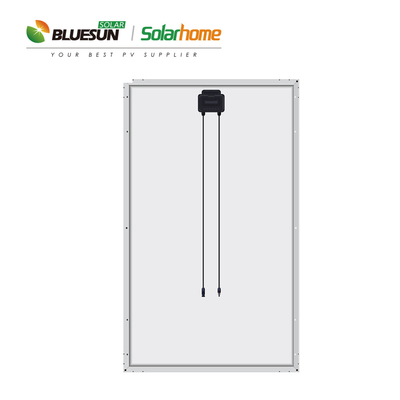

Junction box

> Conventional standalone edition and engineering custom edition
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life
