Name: Bluessun 10kw 12kw 20kw Solar Home Energyu Storage System for 200ah Home Powered System
Brand: Bluesun Solar Co., Ltd.
SKU: BSE20KH3
Availability: InStock

Home Products New Arrivals

Bluessun 10kw 12kw 20kw Solar Home Energyu Storage System for 200ah Home Powered System

Product Details:

Place of Origin:	Anhui, China
Brand Name:	Bluesun
Model Number:	BSE20KH3

Contact Now

Detailed Product Description

Battery Type:	Lithium Ion	Output Power Range:	20-50 KWh
System Type:	Wall-mounted, Stackable, Rack-mounted	Type:	All-in-one
Communication Port:	CAN, Rs232, Rs485	Protection Class:	IP65
Grid Connection:	Off Grid, Hybrid Grid	Maximum PV Input Power:	10200W
Rated Output Power:	10200W/10200VA	Maximum Solar Charging Current:	160A
MPPT Voltage Range:	90VDC~450VDC	Number Of MPPT Trachers:	2/18A
Nominal Output Voltage:	200/230/240VAC	Output Voltage Range:	195.5~253VAC
Nominal Output Current:	44.3A	Output Wavefrom:	Pure Sinewave
Application:	Home Appliances

Products Description

15KW Hybird Solar Power System Components List
Item	Model	Description	Quantity
1	Solar Panel	Half cut mono solar panel 560w	26 pcs
2	Combiner Box	Optional	1 pc
3	Lithium Battery or Lead Acid Battery	21.7kWh Stacked Battery	1 pc
4	Hybrid Inverter	15kva	1 pc
5	Mounting Support	Roof/Ground	1 set
6	Cable	4mm² PV cable	200 m
7	Connector	Solar connector	8 pairs
8	Tools Bag	Solar Installation tools	1 set

20KW Hybrid Solar Power System Components List
Item	Model	Description	Quantity
1	Solar Panel	Half cut mono solar panel 560w	42 pcs
2	Combiner Box	Optional	1 pc
3	Lithium Battery or Lead Acid Battery	21.7kWh Stacked Battery	1 pc
4	Hybrid Inverter	20kva	1 pc
5	Mounting Support	Roof/Ground	1 set
6	Cable	4mm² PV cable	200 m
7	Connector	Solar connector	10 pairs
8	Tools Bag	Solar Installation tools	1 set

30KW Hybird Solar Power System Components List
Item	Model	Description	Quantity
1	Solar Panel	Half cut mono solar panel 560w	58 pcs
2	Combiner Box	Optional	1 pc
3	Lithium Battery or Lead Acid Battery	32.56kWh Stacked Battery	1 pc
4	Hybrid Inverter	30kva	1 pc
5	Mounting Support	Roof/Ground	1 set
6	Cable	4mm² PV cable	300 m
7	Connector	Solar connector	12 pairs
8	Tools Bag	Solar Installation tools	1 set

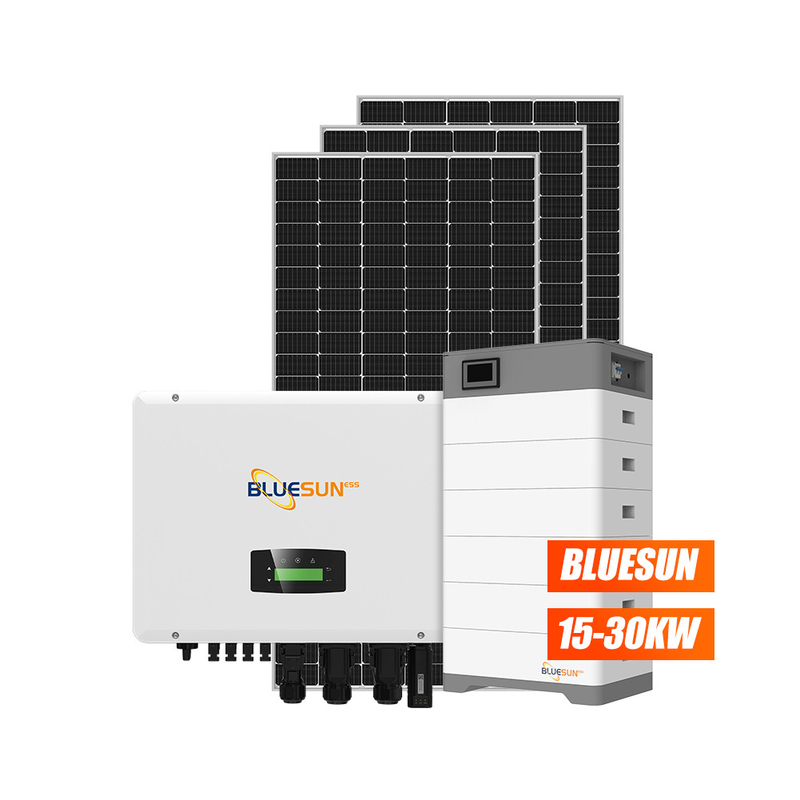

Main Component

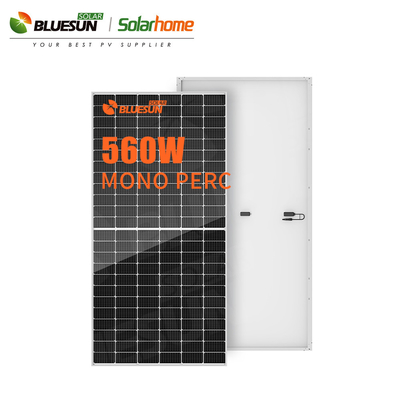

SOLAR PANELS

> 25 years Warranty

>Optimized to -0.30%℃
> Highest conversion efficiency of 17%
> Anti-reflective and anti-soiling surface power loss from dirt and dust

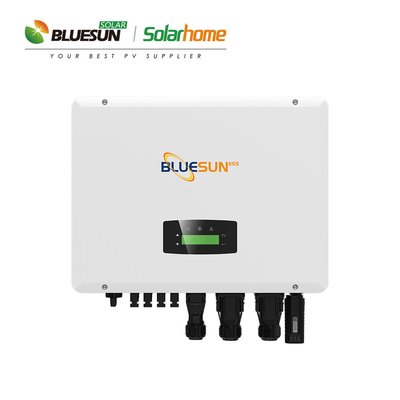

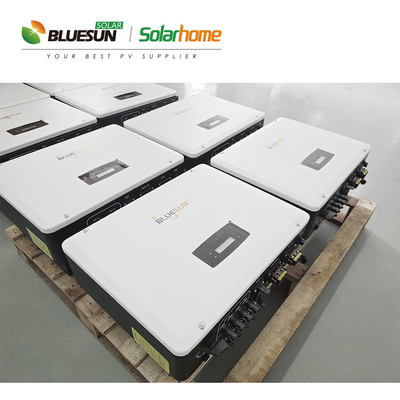

HYBRID SOLAR INVERTERS

> 15/20/30KW grid hybrid inverter

> 380v 50Hz three phase
> With WIFI+CT
> Built in MPPT controlle

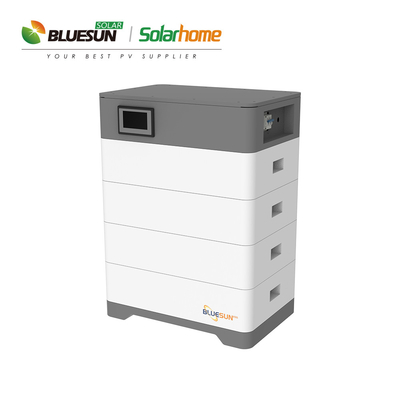

STACKABLE LITHIUM BATTERY

> BSM48106HP

> 51.2V 106AH
>Battery cables + BMS high voltage box + base.

ACCESSORIES

> PV Cable 4mm2 6mm2
> AC Cable
> DC Switches
> AC Breaker
> AC/DC Combiner box

MOUNTING STRUCTURE

> Residential Roof(Pitched Roof)
> Commercial Roof(Flat roof&workshop roof)
> Ground Solar Mounting system
> Vertical wall solar mounting system
> All aluminum structure solar mounting system
> Car parking solar mounting system
