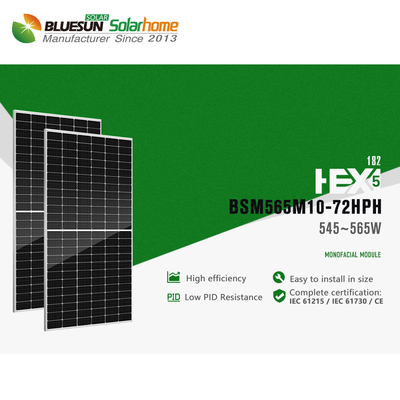

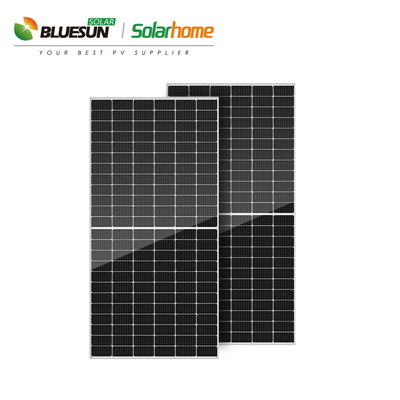

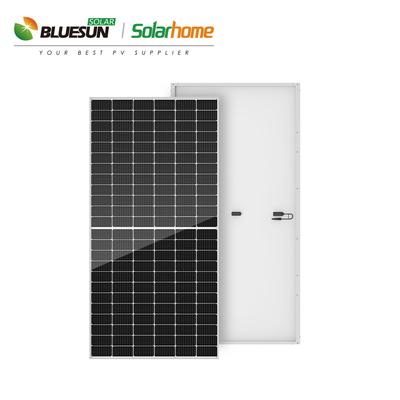

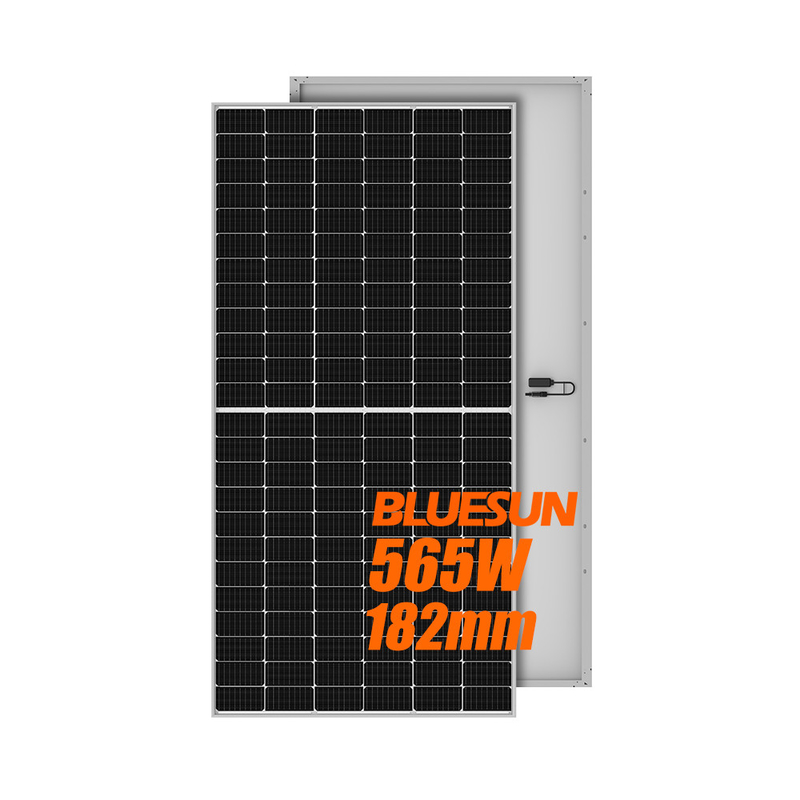

Name: Best Price 565w Shingled Mono Industrial Solar Panel with High Efficiency
Brand: Bluesun Solar Co., Ltd.
SKU: BSM565M10-72HPH
Availability: InStock

Home Products 182mm Solar Panel

Best Price 565w Shingled Mono Industrial Solar Panel with High Efficiency

Product Details:

Place of Origin:	Anhui, China
Brand Name:	Bluesun
Model Number:	BSM565M10-72HPH

Contact Now

Detailed Product Description

Cell Size:	210mmx210mm	Type:	PERC, Half Cell, Bifacial, Double-glass, HJT
Panel Dimensions:	2384109635mm	Panel Efficiency:	22.4%
Open Circuit Voltage(V):	47.8	Load Power (W):	585w
Module:	BSM585PMB6-60SC	Dimensions(MM):	2384109635mm
Short Circuit Current(A):	15.65	Weight::	28.3
Connector Type:	PV Connector	Warranty:	25 Years, 25 Years Warranty
Packing:	31pcs/box;682pcs/40'container	Cable Type::	2.5mm Solar Cable 450 (+10/-0) Mm

Products Description

	BSM570PMB6-60SC	BSM575PMB6-60SC	BSM580PMB6-60SC	BSM585PMB6-60SC	BSM590PMB6-60SC
	STC	STC	STC	STC	STC
Maximum Power(Pmax/W)	570	575	580	585	590
Operating Voltage(Vmp/V)	39.5	39.6	39.7	39.8	39.9
Operating Current(Imp/A)	14.44	14.53	14.62	14.71	14.8
Open-Circuit Voltage(Voc/V)	47.5	47.6	47.7	47.8	47.9
Short-Circuit Current(Isc/A)	15.36	15.46	15.56	15.65	15.75
Module Efficiency （%）	21.6	22	22.2	22.4	22.6
STC: Irradiance 1000W/m², Cell Temperature 25℃, Air Mass AM1.5
More details please send inquiry to us

N Type Technology

N-type cells are more efficient than P-type cells and are not affected by light-induced degradation (LID).

Certifications

Our Company

Bluesun Solar Co., Ltd. is a global clean energy solution service provider and high-tech photovoltaic module manufacturer. We are committed to providing one-stop energy solutions including energy supply, energy management and energy storage to customers around the world.

Feedback from our customers，if you want to know more information,please feel free to contact us,thanks!

Global Exhibition

Payment

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
			30% T/T in advance, paid the balance before shipment		FOB
				CNF	30% T/T in advance, paid the balance against copy of B/L
				CIF	30% T/T in advance, paid the balance against copy of B/L
		L/C	L/C amount above 50,000 usd, we can accept L/C at sight
		West Union	Amount lower than 5000usd
Delivery Time	7~10days after receiving payment for one container
