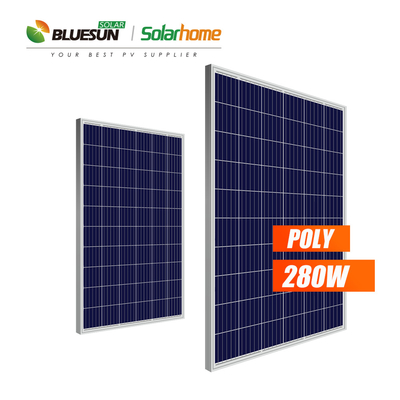

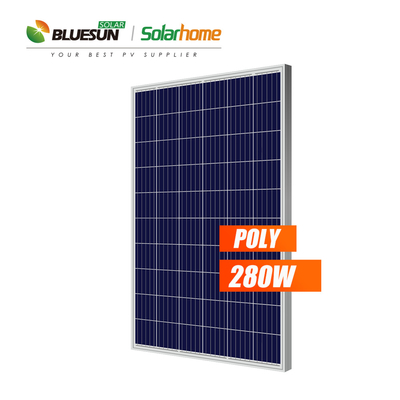

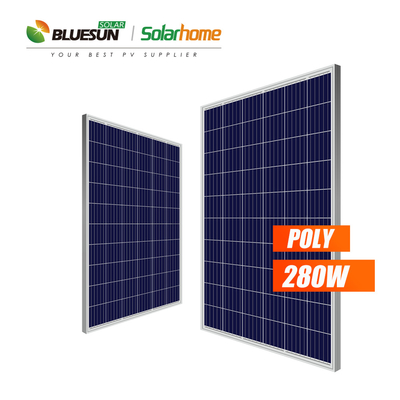

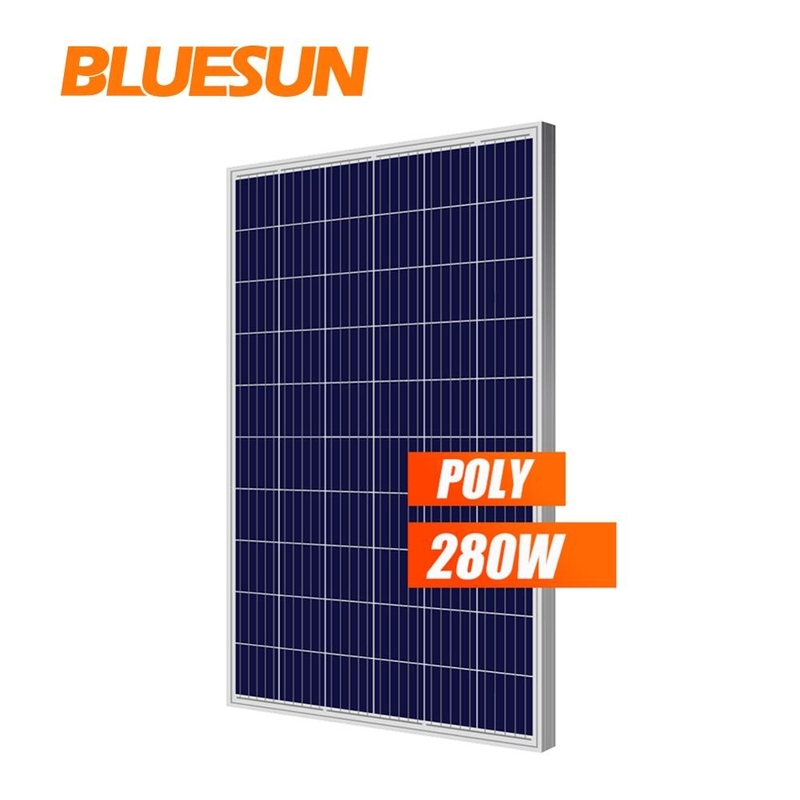

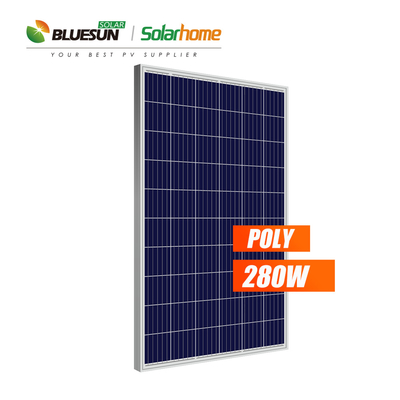

Name: Bluesun High Quality Panel Solar 250w Poly 270w 280w Solar Panel Price for Germany Market
Brand: Bluesun Solar Co., Ltd.
SKU: BSM270P-60
Availability: InStock

Home Products Small Solar Panel

Bluesun High Quality Panel Solar 250w Poly 270w 280w Solar Panel Price for Germany Market

Product Details:

Place of Origin:	Anhui, China
Brand Name:	Solar home
Model Number:	BSM270P-60

Contact Now

Detailed Product Description

Cell Size:	166mmx166mm	Type:	PERC, Standard Solar Panel
Panel Dimensions:	164099240mm	Panel Efficiency:	20%
Front Cover:	3.2mm High Transmission, Low Iron	Certificate:	TUV
Solar Cell:	Poly 156x156mm	Junction Box:	IP65 Rated
Warranty:	25 Years Output Power Guarantee, 25 Years	Frame:	Anodized Aluminium Alloy
Color:	Blue And Black	OEM Order:	Acceptable
Application:	Solar Power System

Product Description

Moduel	BSM270P-60	BSM275P-60	BSM280P-60	BSM285P-60	BSM290P-60
Rated Maximum Power at STC	270W	275W	280W	285W	290W
Open CircuitVoltage(Voc/V)	38.3	38.46	38.85	38.95	40.03
Maximum Power Voltage(Vmp/V)	31.21	31.54	31.88	32.19	32.43
Short Circuit Current(Isc/A)	9.16	9.22	9.33	9.43	9.54
Maximum Power Current(Imp/A)	8.65	8.72	8.78	8.85	8.92
Module Efficiency(%)	16.51	16.82	17.12	17.55	17.82
Power Tolerance	-0~+5W
Standard Test Condition(STC)	Irradiance 1000W/m2,Cell Temperature 25℃,Air Mass1.5

Detailed

Glass

> Antireflective glass
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years (30 years optional)

Solar Cell

> High Efficiency PV Cells
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID

Frame

> Conventional frame
> Silver or black frames are optional
> Boost bearing capability and prolong service life
> Serrated-clip design tensile strength
> Seal-lip designglue injection

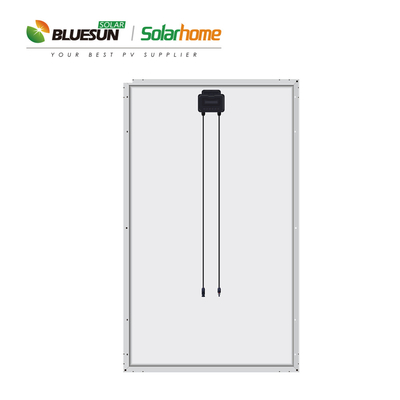

Junction box

> Conventional standalone edition and engineering custom edition
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life

Packing & Delivery

By Sea	Delivery from Shanghai or Ningbo seaport
By Air	Departure from Shanghai Pudong Airport
By Express	By TNT/DHL

Project

Global Exhibitions

Our Company

Payment

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
			30% T/T in advance, paid the balance before shipment		FOB
				CFR(C&F)	30% T/T in advance, paid the balance against copy of B/L
				CIF	30% T/T in advance, paid the balance against copy of B/L
		L/C	L/C amount above 50,000 usd, we can accept L/C at sight
		Paypal	Amount lower than 5000usd
		West Union	Amount lower than 5000usd
Delivery Time	7~10days after receiving payment for one container
