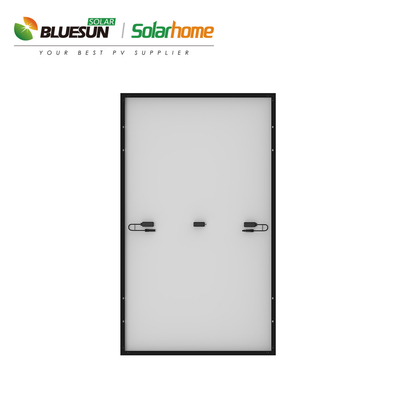

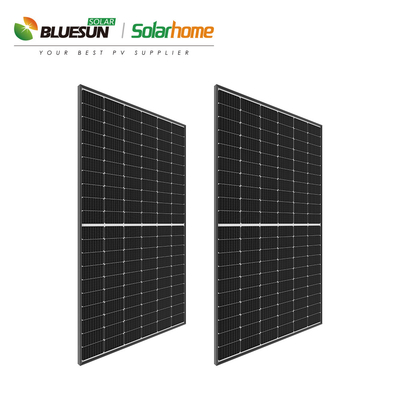

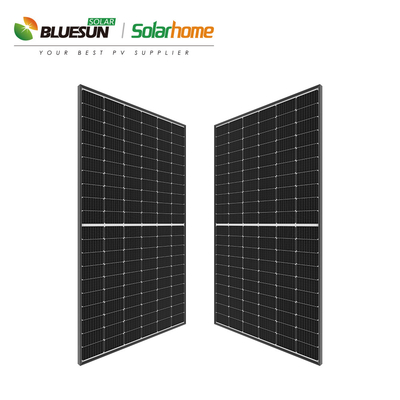

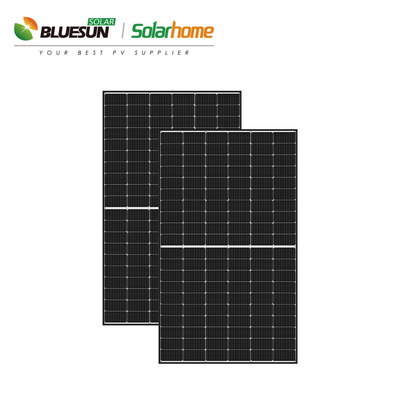

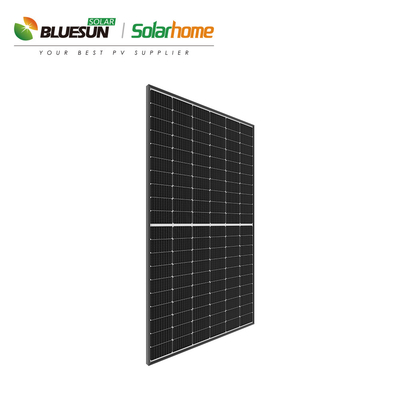

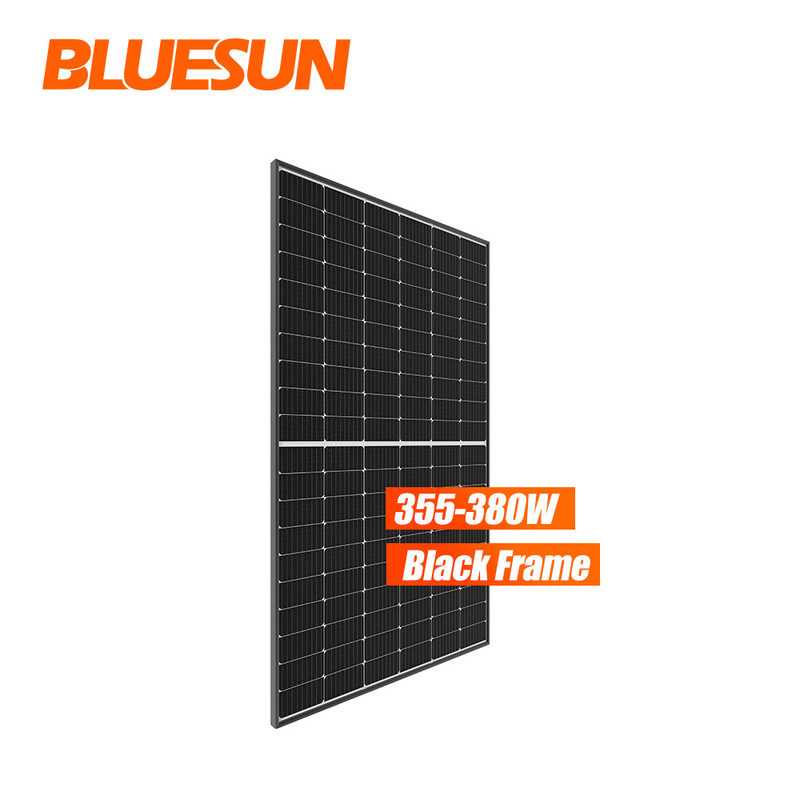

Name: Bluesun BSM375M-72HPH 375 370 Watts Half Cell Perc Mono Solar Panel with Black Frame USA Warehouse Stock
Brand: Bluesun Solar Co., Ltd.
Availability: InStock

Home Products 166mm Solar Panels

Bluesun BSM375M-72HPH 375 370 Watts Half Cell Perc Mono Solar Panel with Black Frame USA Warehouse Stock

Product Details:

Contact Now

Detailed Product Description

品牌:	Bluesun	型号:	BSM370M-60HPH
原产地:	Anhui, China	电池片尺寸:	166mmx166mm
类型:	打击乐, 半电池, 全黑色, BIPV	尺寸:	1755103835
组件效率:	20.1%	产品名称:	单声道太阳能电池板
证书:	TUV/IEC61215/IEC61730/CEC/CE/PID/ISO	应用程序:	太阳能发电系统
背衬颜色:	白色黑色透明	保修:	25年输出功率保证
接线盒:	IP67额定	框架:	阳极氧化铝合金
重量:	19.5kg	OEM订单:	可接受
保修期:	10YEARS

Products Description

Perc Cell

The PERC cell has a passivated rear side and a laser grooving process, which significantly improves the cell efficiency.

Technical Specification

Model	BSM360M-60HPH	BSM365M-60HPH	BSM370M-60HPH	BSM375M-60HPH	BSM380M -60HPH
Max Power(Pmax) [W]	360	365	370	375	380
Open Circuit Voltage(Voc) [V]	40.7	40.9	41.1	41.3	41.5
Short Circuit Current(lsc) [A]	11.15	11.20	11.26	11.31	11.36
Max Power Voltage(Vmp) [V]	34.3	34.6	34.9	35.2	35.5
Max Power Current(lmp) [A]	10.50	10.56	10.61	10.66	10.71
Module Efficiency [%]	19.6	19.8	20.1	20.4	20.8
Power Tolerance	0-5W
Max System Voltage	DC 1500/1000(1 EC)
Max Series Fuse Rating	20A
Operating Temperature	-40 C to + 85 C
STC	Irradiance 1000W/m2, cell temperature 25C, AM 1.5

Packing & Delivery

Global Exhibition

Projects

Our Company

Bluesun Solar Co., Ltd. is a global clean energy solution service provider and high-tech photovoltaic module manufacturer. We are committed to providing one-stop energy solutions including energy supply, energy management and energy storage to customers around the world.
