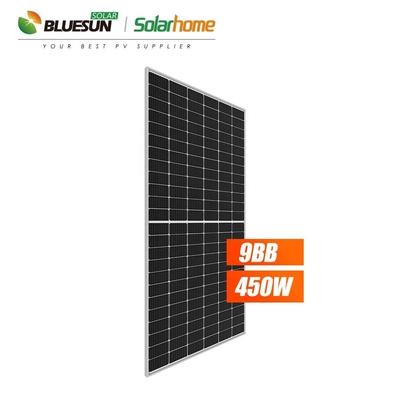

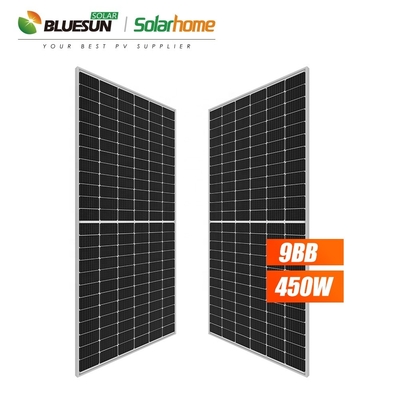

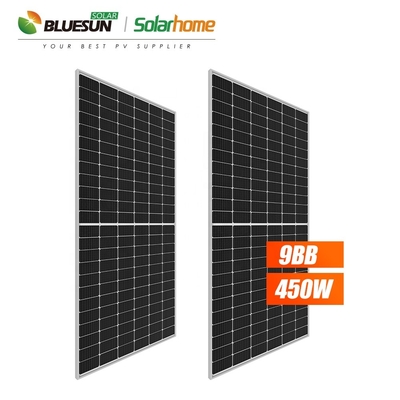

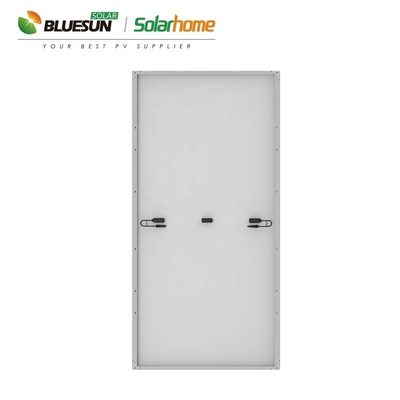

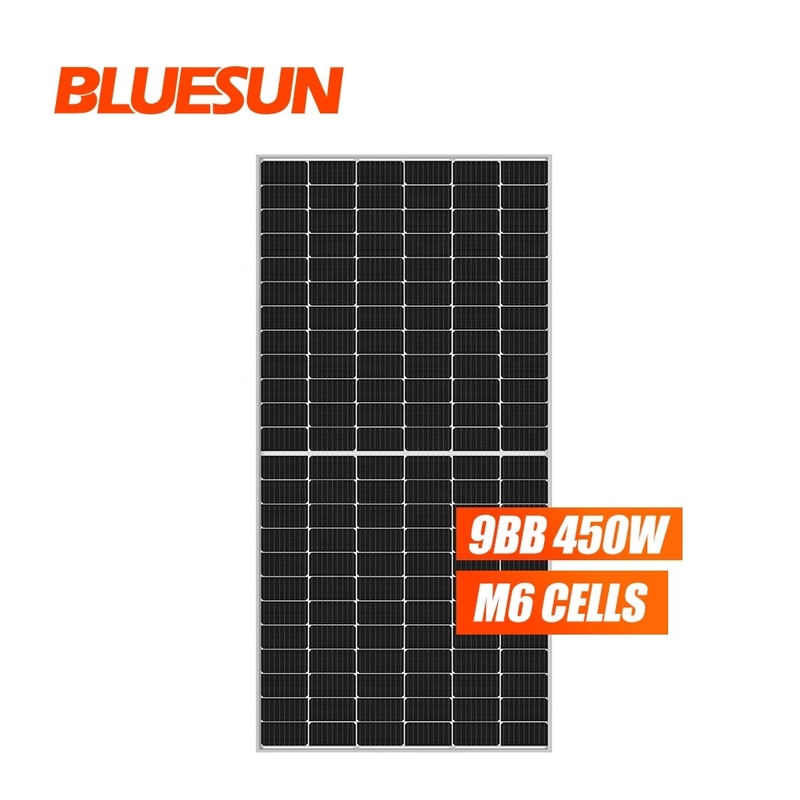

Name: Bluesun Perc Half Cut 9bb 455w 450w 440w 400w Solar Panel Factory Price 144cell Half Cell New Panel Solar Energy Product
Brand: Bluesun Solar Co., Ltd.
Availability: InStock

Home Products 166mm Solar Panels

Bluesun Perc Half Cut 9bb 455w 450w 440w 400w Solar Panel Factory Price 144cell Half Cell New Panel Solar Energy Product

Product Details:

Contact Now

Detailed Product Description

品牌:	Bluesun/OEM	型号:	BSM425G12-54HPH
原产地:	Anhui, China	电池片尺寸:	166mmx166mm
类型:	打击乐, 半电池	尺寸:	201599640mm
组件效率:	20.4	Type:	Standard Solar Panel
Weight:	23kg	Product Name:	Half Cell Solar Panels 144cells Mono 390w
Solar Panel:	Mono 455w	Warranty:	25 Years Output Power Guarantee
Application:	Solar Power System	Solar Cell:	Mono 156.75 * 78.375mm
Certificate:	TUV/IEC61215/IEC61730/CEC/CE/PID/ISO	TPT Back Sheet:	White Or Black
Junction Box:	IP68 Rated	保修期:	10year

Contact Me

Products Description

Product Paramenters

SPECIFICATIONS
Module Type	BSM410G12-54HPH			BSM415G12-54HPH			BSM420G12-54HPH		BSM425G12-54HPH
	STC	NMOT	STC	NMOT	STC	NMOT	STC	NMOT
Maximum Power (Pmax/W)	410	306	415	310	420	314	425	318
Operating Voltage (Vmpp/V)	31.43	29.3	31.64	29.6	31.83	29.8	32.03	30.0
Operating Current(Impp/A)	13.05	10.42	13.13	10.48	13.21	10.54	13.29	10.60
Open-Circuit Voltage (Voc/V)	37.50	35.30	37.75	35.50	38.00	35.70	38.25	35.90
Short-Circuit Current (Isc/A)	13.94	11.24	14.02	11.30	14.10	11.36	14.18	11.42
Module Efficiency qm(%)	21			21.3			21.5		21.7
STC: Irradiance 1000W/m . Cell Temperature 25℃, Air Mass AM1.5 NMOT: Irradiance at 800Wm . Ambient Temperature 2(TC. Air Mass AM1.5, Wind Speed 1m/s
