Name: Bluesun Solar 415w Bifacial Glass Solar Panel 420w 430 w 440 Watt Perc Solar Cell 6 Inch
Brand: Bluesun Solar Co., Ltd.
Availability: InStock

Home Products 166mm Solar Panels

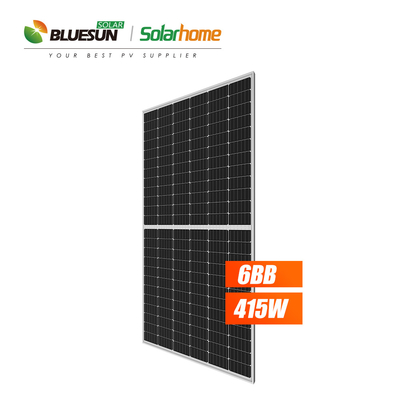

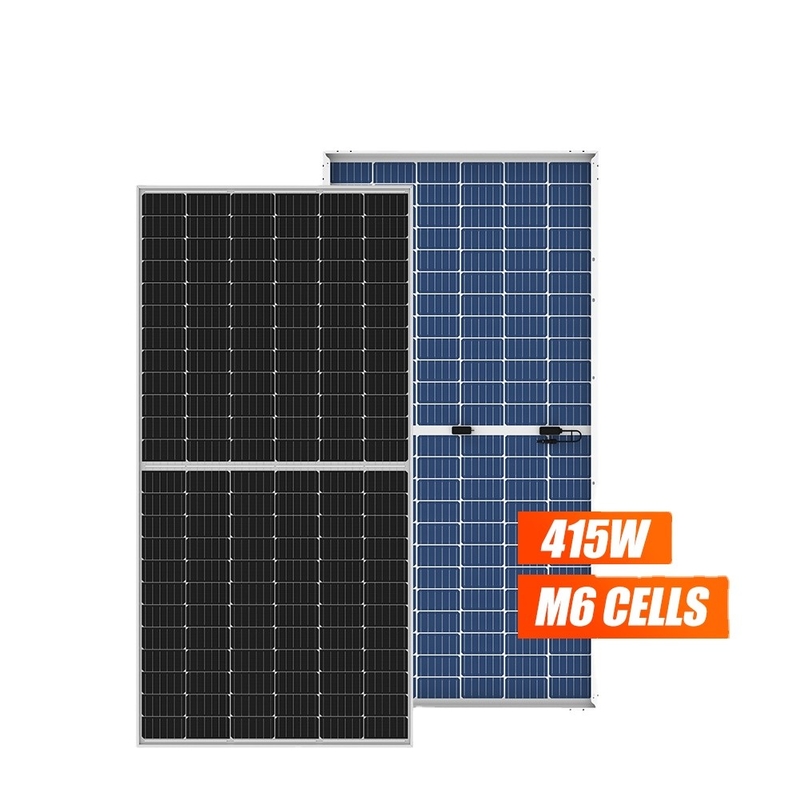

Bluesun Solar 415w Bifacial Glass Solar Panel 420w 430 w 440 Watt Perc Solar Cell 6 Inch

Product Details:

Contact Now

Detailed Product Description

品牌:	Bluesun	型号:	BSM415M-72HBD
材质:	单晶硅	原产地:	Anhui, China
电池片尺寸:	156.75mmx156.75mm	面板尺寸:	2131105235mm
组件效率:	19.1%	类型:	打击乐, 半电池, 异面, 双层-玻璃
Product Name:	Double Glass Bifacial Solar Panel	Module:	BSM415M-72HBD
Certificate:	BSI/TUV/IEC61215/IEC61730/CEC/CE/PID/ISO	Junction Box:	IP68
Glas:	Dual Glass 2.0mm	Frame:	Anodized Aluminum Alloy Frame
Warranty:	25 Years	Cell Efficiency:	19.40%
Weight:	29.5kg	Power:	415w-435w

Products Description

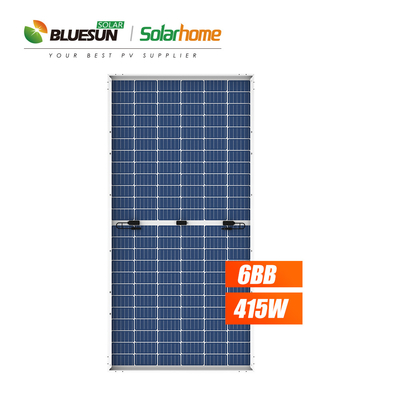

Bifacial PERC

For a bifacial PERC cell, the Al back surface field is replaced by Al grid, hence render the majority of rear side transparent which enable the cell to absorb light and generate electricity from both sides.

Electrical Characteristics
Model Number	BSM415M-72HBD	BSM420M-72HBD	BSM425M-72HBD	BSM430M-72HBD	BSM435M-72HBD
Testing Condition	STC
Maximum Power (Pmax/W)	415	420	425	430	435
Open Circuit Voltage (Voc/V)	49	49.2	49.4	49.6	49.8
Short Circuit Current (Isc/A)	10.89	10.96	11.02	11.09	11.16
Voltage at Maximum Power (Vmp/V)	40.6	40.8	41	41.2	41.4
Current at Maximum Power (Imp/A)	10.23	10.3	10.37	10.44	10.51
Module Efficiency(%)	18.5	18.7	19	19.2	19.4
STC (Standard Testing Conditions): Irradiance 1000W/m2, Cell Temperature 25 ℃, Spectra at AM1.5

Packing & Delivery

Certifications

Payment

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
			30% T/T in advance, paid the balance before shipment		FOB
				CNF	30% T/T in advance, paid the balance against copy of B/L
				CIF	30% T/T in advance, paid the balance against copy of B/L
		L/C	L/C amount above 50,000 usd, we can accept L/C at sight
		West Union	Amount lower than 5000usd
Delivery Time	7~10days after receiving payment for one container

We welcome use Trade Assurance, you'll enjoy:

100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount

Our Company

Bluesun Solar Co., Ltd. is a global clean energy solution service provider and high-tech photovoltaic module manufacturer. We are committed to providing one-stop energy solutions including energy supply, energy management and energy storage to customers around the world.
