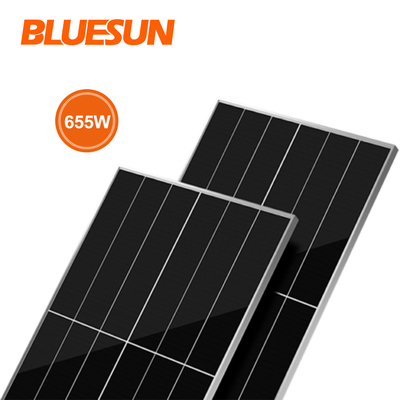

Name: BLUESUN Best Supplier Solar Panels 550w 585w 600w Double Glass Shingled Solar Panel Solar Energy System Use
Brand: Bluesun Solar Co., Ltd.
SKU: BSM600PMB6-60SDC
Availability: InStock

Home Products 210mm Solar Panel

BLUESUN Best Supplier Solar Panels 550w 585w 600w Double Glass Shingled Solar Panel Solar Energy System Use

Product Details:

Place of Origin:	Anhui, China
Brand Name:	Bluesun
Model Number:	BSM600PMB6-60SDC

Contact Now

Detailed Product Description

Cell Size:	210mmx210mm	Type:	PERC, Monocrystalline Shingled Solar Panel
Panel Dimensions:	2355130335mm	Panel Efficiency:	21.3%
Weight:	38.5kg	Warranty:	25 Years, 25 Years
Junction Box:	IP68, 3 Bypass Diodes	Max System Voltage:	DC 1500V(IEC)
Dimensions:	2355130335mm	Frame:	Anodized Aluminium Alloy
Voltage:	44.1V	Efficiency:	21.3%
Certificate:	CE/TUV

Products Description

Product Parameters

SPECIFICATIONS
Module Type	BSM585PMB6-60SDC	BSM590PMB6-60SDC	BSM595PMB6-60SDC	BSM600PMB6-60SDC	BSM605PMB6-60SDC	BSM610PMB6-60SDC
	STC	STC	STC	STC	STC	STC
Maximum Power (Pmax/W)	585	590	595	600	605	610
Operating Voltage (Vmp/V)	39.80	39.90	40.00	40.10	40.20	40.30
Operating Current (Imp/A)	14.71	14.80	14.89	14.98	15.07	15.16
Open-Circuit Voltage(Voc/V)	47.80	47.90	48.00	48.10	48.20	48.30
Short-Circuit Current(Isc/A)	15.67	15.77	15.87	15.97	16.07	16.17
Module Efficiency in STCηm(%)	22.40	22.60	22.80	23.00	23.20	23.40
STC: Irradiance 1000w/m2, Cell Temperature 25°C, Air Mass AM1.5
More details, please send us inquiry
