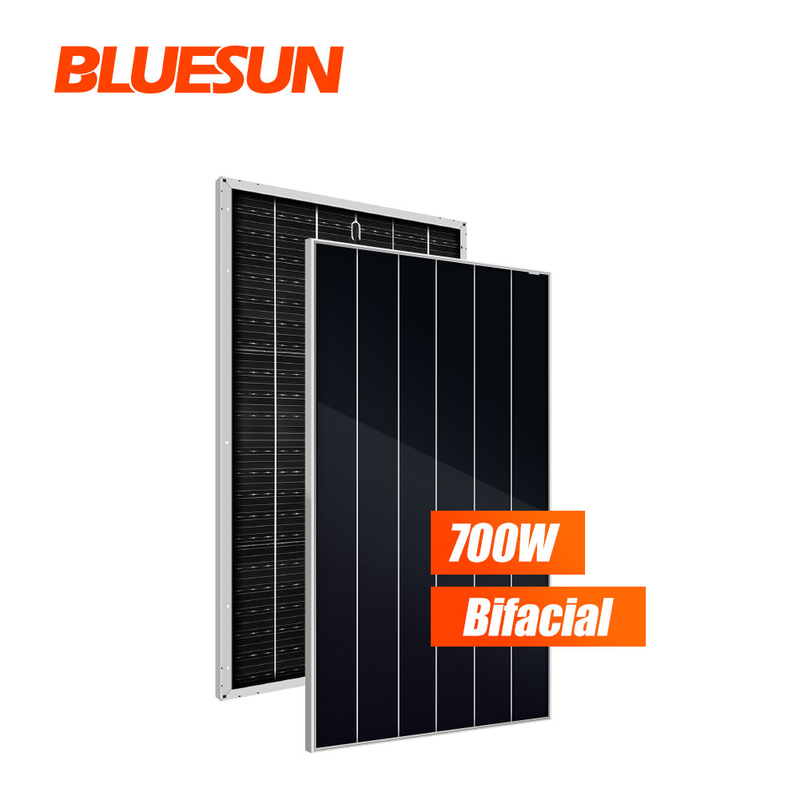

Name: Bluesun Mono 210 Half Cell Original Shingled Solar Panel 700W 550W Solar Panels Film on Roof 415W 425W
Brand: Bluesun Solar Co., Ltd.
Availability: InStock

Home Products 210mm Solar Panel

Bluesun Mono 210 Half Cell Original Shingled Solar Panel 700W 550W Solar Panels Film on Roof 415W 425W

Product Details:

Contact Now

Detailed Product Description

品牌:	BLUESUN	型号:	BSM700PMB6-69SDC
原产地:	Anhui, China	电池片尺寸:	210mmx210mm
面板尺寸:	2355130335mm	组件效率:	21.6%
Cell Type:	Monocrystalline	Cell Dimensions:	210*210mm
Weight:	38.5kg	Cable Length:	Portrait 300mm/Landscape 1200mm/Customized
Cable Cross Section Size:	TUV: 4mm (0.006inches )/UL: 12AWG	Module Dimensions:	2355130335mm
Packing Configuration:	31pcs/carton, 558pcs/40hq	Frame:	Anodized Aluminium Alloy
Efficiency:	21.6%	Junction Box:	IP68

Products Description

Product Parameters

SPECIFICATIONS
Module Type	BSM675PMB6-69SDC	BSM680PMB6-69SDC	BSM685PMB6-69SDC	BSM690PMB6-69SDC	BSM695PMB6-69SDC	BSM700PMB6-69SDC
	STC	STC	STC	STC	STC	STC
Maximum Power	675	680	685	690	695	700
Operating Voltage (Vmpp/V)	39.20	39.30	39.40	39.50	39.60	39.70
Operating Current (Impp/A)	17.23	17.32	17.41	17.49	17.57	17.65
Open-Circuit Voltage (Voc/V)	47.20	47.30	47.40	47.50	47.60	47.70
Short-Circuit Current (Isc/A)	18.32	18.41	18.50	18.59	18.68	18.77
Module Efficiency n（%）	21.90	22.10	22.30	22.50	22.60	22.80
STC: Irradiance 1000W/㎡ , Cell Temperature 25°C, Air Mass AM1.5 NMOT: Irradiance at 800W/㎡ , Ambient Temperature 20°C, Air Mass AM1.5, Wind Speed 1m/s
More details please send Inquiry to us

Advantages Of Shingled Panel

* When the shingled module is installed vertically and the single cell string is shaded, the output power of the shingled module can reach 86.65% of the normal operation. That's 35% more power than the half-cell module.
