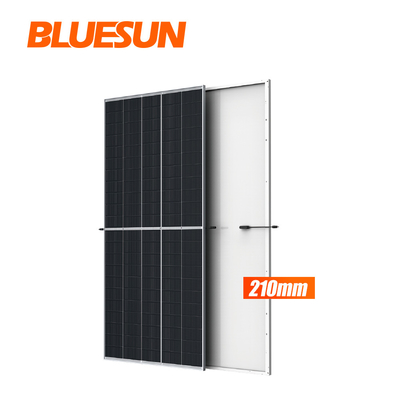

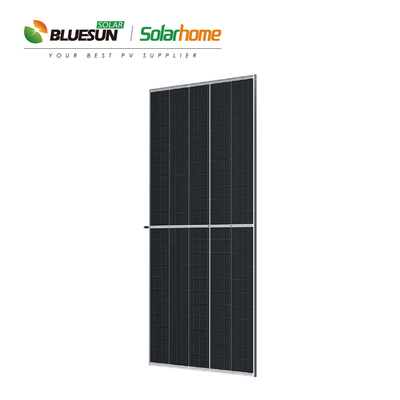

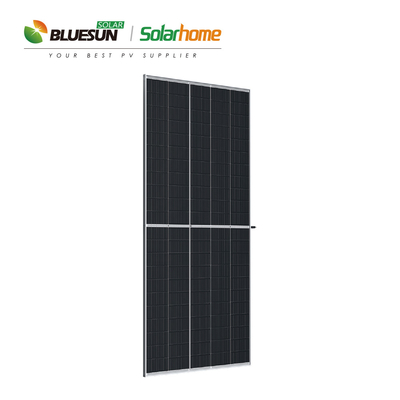

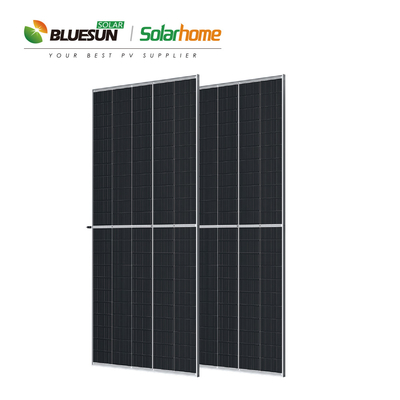

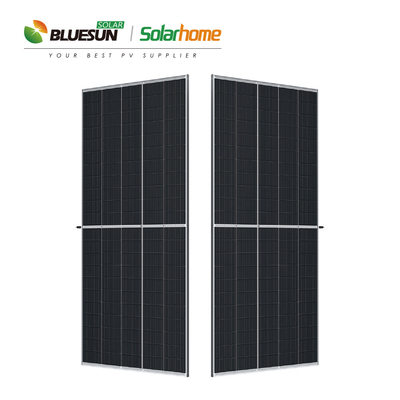

Name: Bluesun Bificial 535w Half Cells Panels 530w 540w 550w Bifacial Solar Panes with High Power Kits
Brand: Bluesun Solar Co., Ltd.
Availability: InStock

Home Products 210mm Solar Panel

Bluesun Bificial 535w Half Cells Panels 530w 540w 550w Bifacial Solar Panes with High Power Kits

Product Details:

Contact Now

Detailed Product Description

品牌:	Bluesun, Bluesun	型号:	BSM535M-72HBD
原产地:	Anhui, China	电池片尺寸:	182mmx182mm
类型:	打击乐, 半电池, 异面, 双层-玻璃, 双面半电池	尺寸:	23841047 40mm
组件效率:	21.6%	框架:	阳极氧化铝合金
产品名称:	535W双半电池面板	效率:	20%-23%
接线盒:	额定IP 68	细胞类型:	单晶210 * 210mm
尺寸 (MM):	23841047 40mm	玻璃:	3.2mm高传输
保修:	25年	保修期:	25年

Products Description

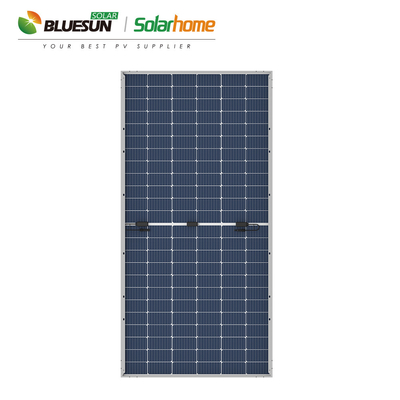

Bifacial PERC

For a bifacial PERC cell, the Al back surface field is replaced by Al grid, hence render the majority of rear side transparent which enable the cell to absorb light and generate electricity from both sides.

ELECTRICAL PARAMETERS
TYPE	BSM530M-72HBD	BSM535M-72HBD	BSM540M-72HBD	BSM545M-72HBD	BSM550M-72HBD
Rated Maximum Power(Pmax) [W]	530	535	540	545	550
Open Circuit Voltage(Voc) [V]	37.3	37.5	37.7	37.9	38.1
Maximum Power Voltage(Vmp) [V]	31.0	31.2	31.4	31.6	31.8
Short Circuit Current(lsc) [A]	18.19	18.24	18.30	18.35	18.39
Maximum Power Current(lmp) [A]	17.11	17.16	17.21	17.24	17.29
Module Efficiency [%]	20.3	20.5	20.7	20.9	21.0
Power Tolerance	0 ~ +5
Temperature Coefficient of Isc(α-jsc)	0.04%/°C
Temperature Coefficient of Voc(β_Voc)	-0.25%/°C
Temperature Coefficient of Pmax(γ_Pmp)	-0.34%/°C
STC	Irradiance 1000W/m², cell temperature 25°C, AM1.5G

Remark: Electrical data in this catalog do not refer to a single module and they are not part of the offer.They only serve for comparison among different module types.

ELECTRICAL CHARACTERISTICS WITH DIFFERENT REAR SIDE POWER GAIN
Backside Power Gain	10%	10%	10%	10%	10%
Rated Max Power(Pmax) [W]	567	573	578	583	589
Open Circuit Voltage(Voc) [V]	37.3	37.5	37.7	37.9	38.1
Max Power Voltage(Vmp) [V]	31.0	31.2	31.4	31.6	31.8
Short Circuit Current(lsc) [A]	18.31	18.36	18.41	18.45	18.50
Max Power Current(lmp) [A]	19.46	19.52	19.58	19.63	19.68

Packing & Delivery

Certifications

Our Company

Bluesun Solar Co., Ltd. is a global clean energy solution service provider and high-tech photovoltaic module manufacturer. We are committed to providing one-stop energy solutions including energy supply, energy management and energy storage to customers around the world.

Feedback from our customers，if you want to know more information,please feel free to contact us,thanks!

Global Exhibition

Projects

Payment

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
			30% T/T in advance, paid the balance before shipment		FOB
				CNF	30% T/T in advance, paid the balance against copy of B/L
				CIF	30% T/T in advance, paid the balance against copy of B/L
		L/C	L/C amount above 50,000 usd, we can accept L/C at sight
		West Union	Amount lower than 5000usd
Delivery Time	7~10days after receiving payment for one container
