Name: Bluesun 160W Flexible Solar Panels 1000W 550W 650W Solar Panel Price 670W 700W Factory
Brand: Bluesun Solar Co., Ltd.
Availability: InStock

Home Products 210mm Solar Panel

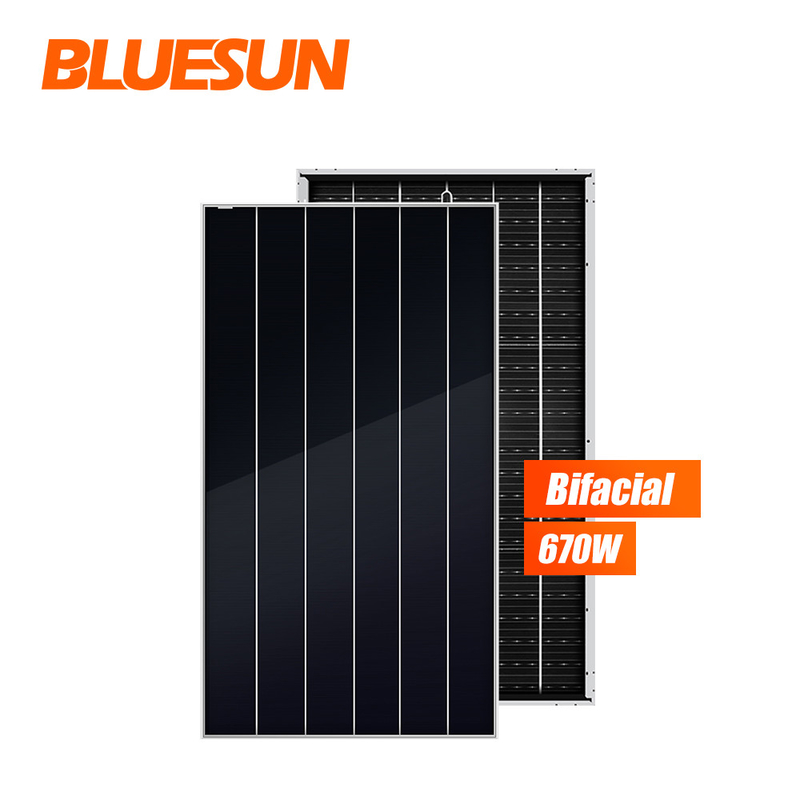

Bluesun 160W Flexible Solar Panels 1000W 550W 650W Solar Panel Price 670W 700W Factory

Product Details:

Contact Now

Detailed Product Description

品牌:	BLUESUN	型号:	BSM670PMB6-69SDC
原产地:	Anhui, China	电池片尺寸:	210mmx210mm
面板尺寸:	23551303 35mm	组件效率:	21.6%
细胞类型:	单晶	单元格尺寸:	210 * 210mm
重量:	38.5kg	电缆长度:	人像300mm/风景1200mm/定制
电缆截面尺寸:	TUV: 4毫米 (0.006英寸)/UL: 12AWG	模块尺寸:	23551303 35mm
包装配置:	31件/箱，558件/40hq	框架:	阳极氧化铝合金
效率:	21.6%	接线盒:	IP68

Products Description

Product Parameters

SPECIFICATIONS
Module Type	BSM650PMB6-69SDC	BSM655PMB6-69SDC	BSM660PMB6-69SDC	BSM665PMB6-69SDC	BSM670PMB6-69SDC
	STC	STC	STC	STC	STC
Maximum Power (Pmax/W)	650	655	660	665	670
Operating Voltage (Vmpp/V)	38.7	38.8	38.9	39.0	39.1
Operating Current (Impp/A)	16.8	16.86	16.95	17.05	17.14
Open-Circuit Voltage (Voc/V)	46.7	46.8	46.9	47.0	47.1
Short-Circuit Current (Isc/A)	17.84	17.94	18.04	18.14	18.23
Module Efficiency (%)	21.0	21.1	21.2	21.4	21.6
STC: Cell Temperature 25°C, Air Mass AM1.5
Electrical characteristics with different rear side power gain (refer to 670W front)
Pmax gain	Pmax/W	Vmpp/V	Impp/A	Voc/V	Isc/A
5%	683	38.2	17.80	46.1	18.9
10%	715	38.2	18.65	46.1	19.8
15%	748	38.2	19.49	46.1	20.7
20%	780	38.2	20.34	46.2	21.6
25%	813	38.2	21.19	46.2	22.5
More Details Please Send Inquiry to Us

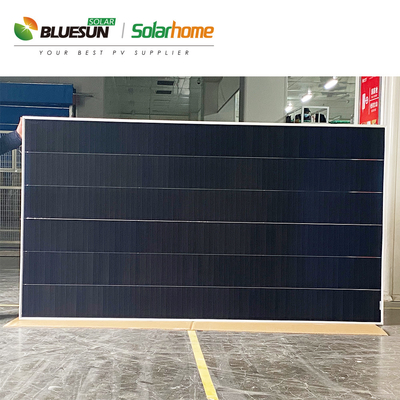

Advantages Of Shingled Panel

* When the shingled module is installed vertically and the single cell string is shaded, the output power of the shingled module can reach 86.65% of the normal operation. That's 35% more power than the half-cell module.
