Name: China Best Solar Panels 550w 560w 600w Suppliers Manufacture Solar Panels for Your House
Brand: Bluesun Solar Co., Ltd.
Availability: InStock

Home Products 210mm Solar Panel

China Best Solar Panels 550w 560w 600w Suppliers Manufacture Solar Panels for Your House

Product Details:

Contact Now

Detailed Product Description

品牌:	BLUESUN	型号:	BSM560M10-72HPH
原产地:	Anhui, China	电池片尺寸:	182mmx182mm
类型:	打击乐, 半电池, 全黑色, 标准	尺寸:	2278113435mm
组件效率:	21.3%	开路电压:	50 V
短路电流:	14.37A	证书:	TUV CE
重量:	28.6kg	框架:	阳极氧化铝合金
细胞类型:	182mm半切电池	旁路二极管的编号:	3
接线盒:	IP68	最大系统电压:	1500V DC
工作温度:	-40 °C ~ + 85 °C	保修期:	25年

Products Description

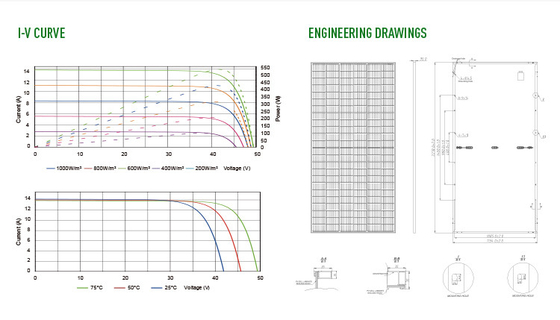

Product Paramenters

SPECIFICATIONS
Module Type	BSM540M10-72HPH	BSM545M10-72HPH	BSM550M10-72HPH	BSM555M10-72HPH	BSM560M10-72HPH
Module Type		STC	STC	STC	STC	STC
Maximum Power (Pmax/W)	540	545	550	555	560
Operating Voltage(Vmp/V)	41.96	42.06	42.16	42.24	42.33
Operating Current(Imp/A)	12.87	12.96	13.05	13.14	13.23
Open-Circuit Voltage(Voc/V)	49.60	49.70	49.80	49.90	50.00
Short-Circuit Current(Isc/A)	13.74	13.84	13.94	14.04	14.14
Module Efficiency（%）	20.90	21.10	21.30	21.49	21.68
STC: Irradiance 1000W/m², Cell Temperature 25°C Air Mass AM1.5
More details please send inquiry to us
