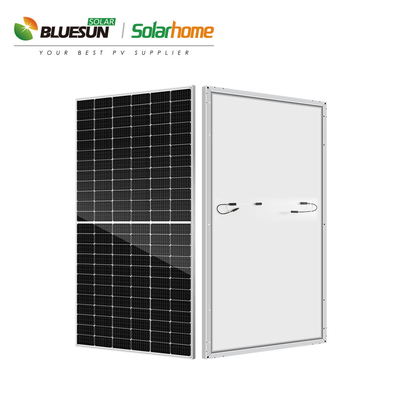

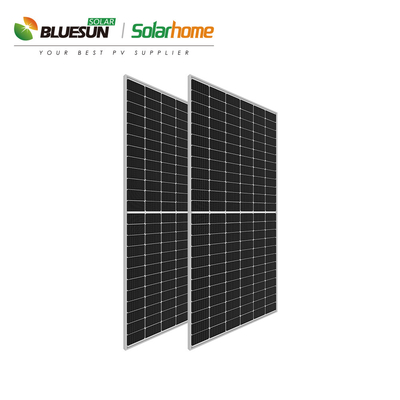

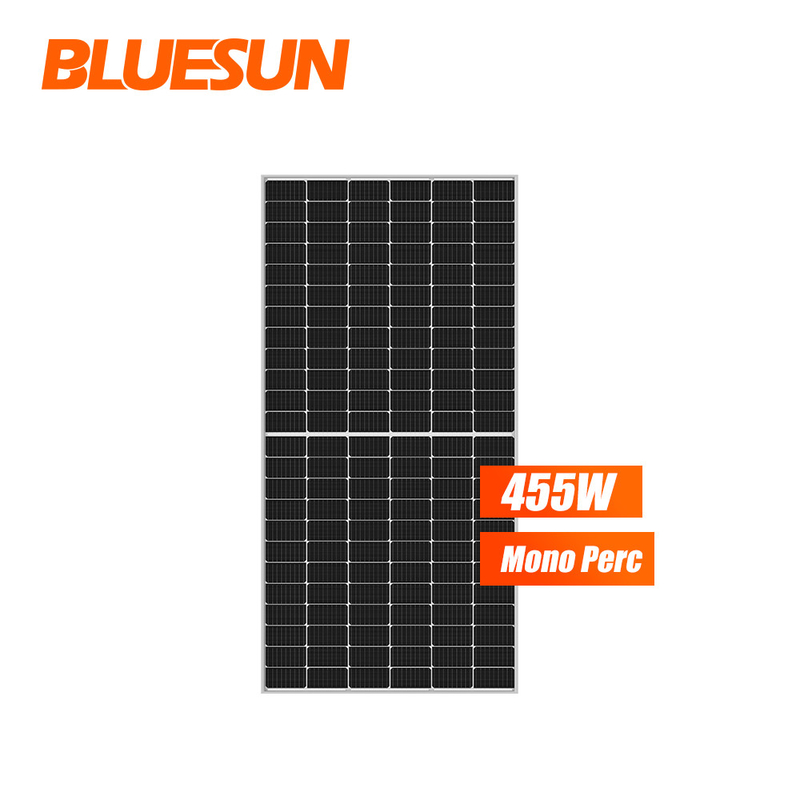

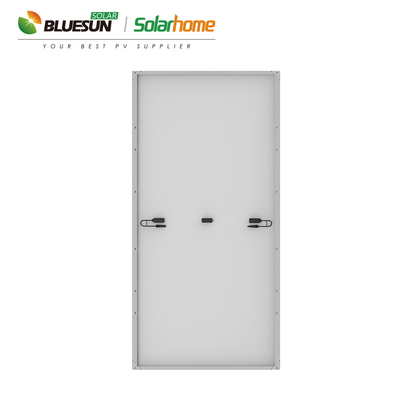

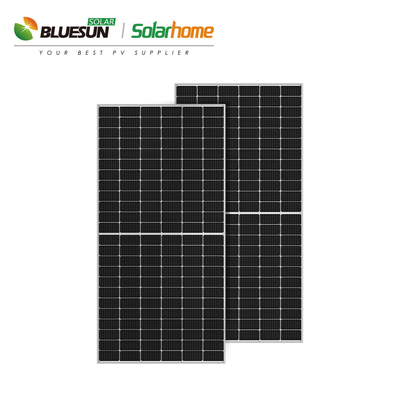

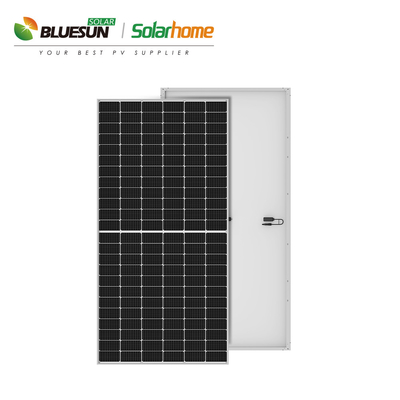

Name: Bluesun 166mm Solar Panel 72 BLUESUN Mono 460W 455W 450W Solar Half Cells Perc Half Cell Panels
Brand: Bluesun Solar Co., Ltd.
Availability: InStock

Home Products 166mm Solar Panels

Bluesun 166mm Solar Panel 72 BLUESUN Mono 460W 455W 450W Solar Half Cells Perc Half Cell Panels

Product Details:

Contact Now

Detailed Product Description

品牌:	BLUESUN, Bluesun	型号:	BSM455W-72HPH
原产地:	Anhui, China	电池片尺寸:	166mmx166mm
类型:	打击乐, 半电池, PERC，半电池，双面，双层玻璃，BIPV	尺寸:	20941038 35mm, 20941038 35mm
组件效率:	19.6%-20.9%	产品名称:	半电池单太阳能电池板
证书:	CE/IEC/ISO, BSI/TUV/IEC61215/IEC61730/CEC/CE/PID/ISO	重量:	23.5kg
电源:	425w-455w	接线盒:	IP68
框架:	阳极氧化铝合金框架	保修:	25年
保修期:	25 Years

Products Description

Perc Cell

The PERC cell has a passivated rear side and a laser grooving process, which significantly improves the cell efficiency.

Electrical Characteristics
Model Number	BSM425M-72HPH	BSM430M-72HPH	BSM435M-72HPH	BSM440M-72HPH	BSM445M-72HPH	BSM450M-72HPH	BSM455M-72HPH
Testing Condition	STC
Maximum Power (Pmax/W)	425	430	435	440	445	450	455
Open Circuit Voltage (Voc/V)	48.3	48.5	48.7	48.9	49.1	49.3	49.5
Short Circuit Current (Isc/A)	11.23	11.31	11.39	11.46	11.53	11.60	11.66
Voltage at Maximum Power (Vmp/V)	40.5	40.7	40.9	41.1	41.3	41.5	41.7
Current at Maximum Power (Imp/A)	10.50	10.57	10.64	10.71	10.78	10.85	10.92
Module Efficiency(%)	19.6	19.8	20	20.2	20.5	20.7	20.9
STC (Standard Testing Conditions): Irradiance 1000W/m², Cell Temperature 25 ℃, Spectra at AM1.5

Packing & Delivery

Certifications

Payment

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
			30% T/T in advance, paid the balance before shipment		FOB
				CNF	30% T/T in advance, paid the balance against copy of B/L
				CIF	30% T/T in advance, paid the balance against copy of B/L
		L/C	L/C amount above 50,000 usd, we can accept L/C at sight
		West Union	Amount lower than 5000usd
Delivery Time	7~10days after receiving payment for one container

We welcome use Trade Assurance, you'll enjoy:

100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount

Our Company

Bluesun Solar Co., Ltd. is a global clean energy solution service provider and high-tech photovoltaic module manufacturer. We are committed to providing one-stop energy solutions including energy supply, energy management and energy storage to customers around the world.
