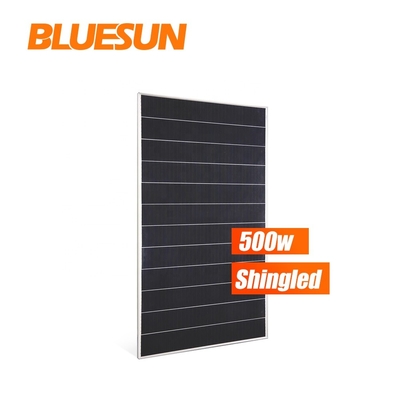

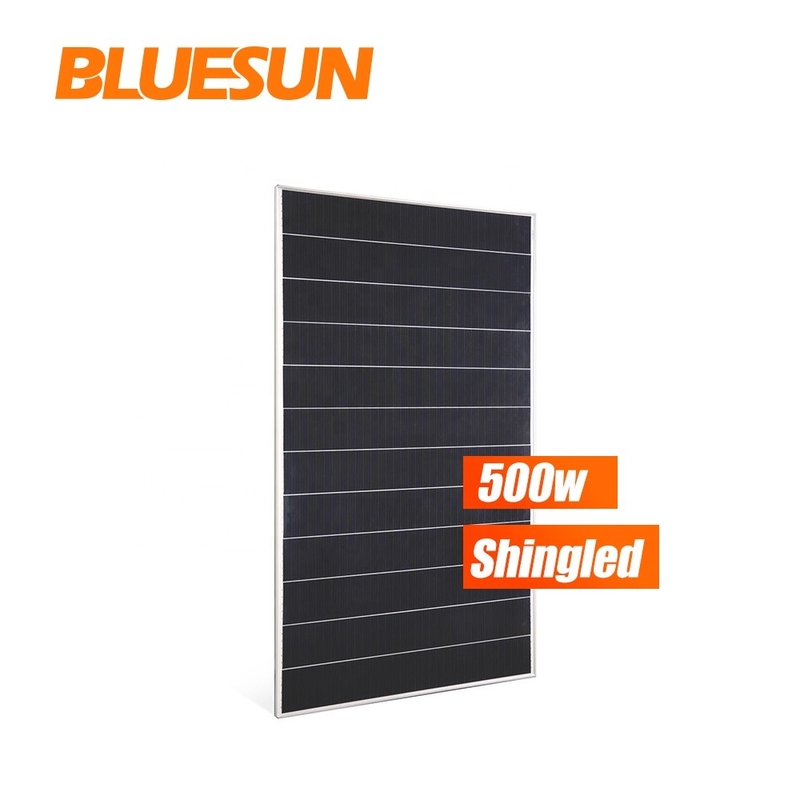

Name: Bluesun Solar Shingles Solar Roof Tiles Photovoltaic 500w Shingled Solar Panel 500watt for Household
Brand: Bluesun Solar Co., Ltd.
SKU: BSM500PM5-72SB
Availability: InStock

Home Products Shingled Solar Panel

Bluesun Solar Shingles Solar Roof Tiles Photovoltaic 500w Shingled Solar Panel 500watt for Household

Product Details:

Place of Origin:	Anhui, China
Brand Name:	BLUESUN
Model Number:	BSM500PM5-72SB

Contact Now

Detailed Product Description

Cell Size:	166mmx166mm	Panel Dimensions:	2056114035m
Panel Efficiency:	21.3%	Open Circuit Voltage(V):	46.8
Short Circuit Current(A):	13.4	Weight::	25KG
Dimensions(MM):	2056114035m	Color::	Black
Connector Type:	PV Connector	Cable Type::	2.5mm Solar Cable 450 (+10/-0) Mm
Packing:	31pcs/box;682pcs/40'container	Load Power (W):	500w
Power Output Warranty:	25years

Products Description

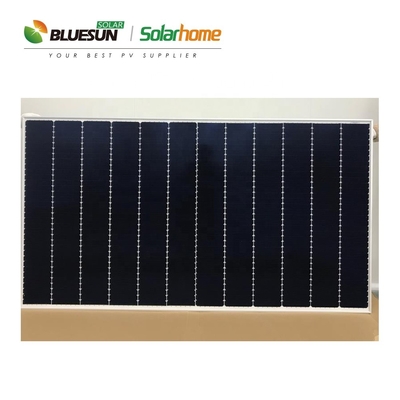

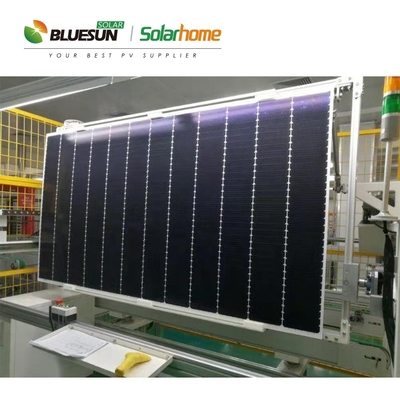

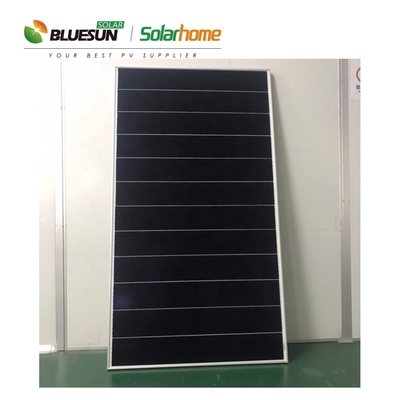

Shingled Module Technology

Compared with the normal module technology, the interconnected material of shingled module is different from that of normal module, whose technology is simpler and more reliable, avoiding the defects such as deviation of ribbon and cold soldering.

Product Paramenters

Electrical Characteristics
Model	BSM470PM5 -72SB	BSM475PM5 -72SB	BSM480PM5 -72SB	BSM485PM5 -72SB	BSM490PM5 -72SB	BSM500PM5 -72SB
Max Power(Pmax) [W]	470	475	480	485	490	500
Open Circuit Voltage(Voc) [V]	46.4	46.5	46.6	46.6	46.7	46.8
Short Circuit Current(lsc) [A]	13.04	13.10	13.16	13.22	13.28	13.40
Max Power Voltage(Vmp) [V]	38.6	38.7	38.8	38.8	38.9	39.0
Max Power Current(lmp) [A]	12.18	12.27	12.37	12.50	12.60	12.82
Module Efficiency [%]	20.1	20.3	20.5	20.7	20.9	21.3
Power Tolerance	0-5W
Max System Voltage	1000V/1500V/DC(IEC)
Max Series Fuse Rating	20A
Operating Temperature	-40 °C to + 85°C
STC	Irradiance 1000W/m2, cell temperature 25 °C , AM1.5

Advantages Of Shingled Module

Advantages

*Under the load of IEC 5400Pa, shingled has no new micro-cracks, although both shingled module and half-cell module passed the test(attenuation < 5%).

*High load resisting capacity reduces the production of micro-crack during transportation and power station installation.

Packing & Delivery

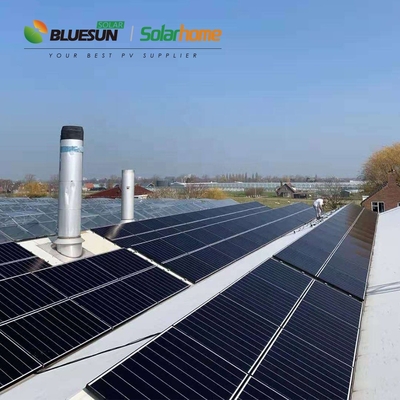

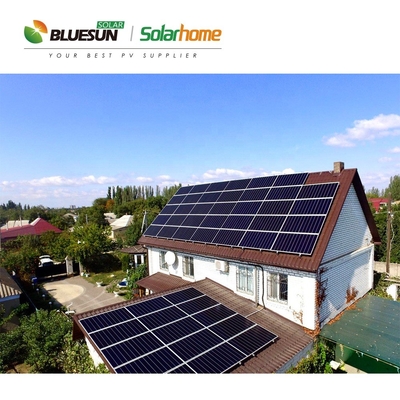

Projects

Payment

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
			30% T/T in advance, paid the balance before shipment		FOB
				CFR(C&F)	30% T/T in advance, paid the balance against copy of B/L
				CIF	30% T/T in advance, paid the balance against copy of B/L
		L/C	L/C amount above 50,000 usd, we can accept L/C at sight
		Paypal	Amount lower than 5000usd
		West Union	Amount lower than 5000usd
Delivery Time	7~10days after receiving payment for one container
