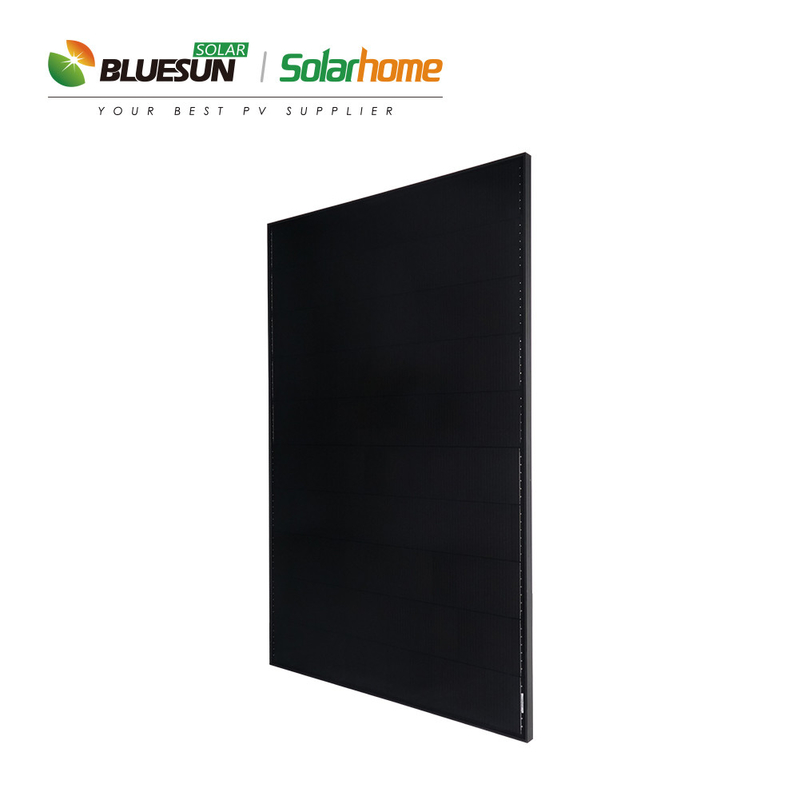

Name: Bluesun Half Cell Shingled Solar Panel 410w 415W All Black Solar Panel
Brand: Bluesun Solar Co., Ltd.
SKU: BSM415PM5-60SB
Availability: InStock

Home Products Shingled Solar Panel

Bluesun Half Cell Shingled Solar Panel 410w 415W All Black Solar Panel

Product Details:

Place of Origin:	Anhui, China
Brand Name:	Bluesun
Model Number:	BSM415PM5-60SB

Contact Now

Detailed Product Description

Cell Size:	166mmx166mm	Type:	PERC, Half Cell, All Black, Overlap
Panel Dimensions:	1719114035mm	Panel Efficiency:	20.9%
Product Name:	Overlap Solar Panels	Application:	Solar Power System
Solar Panel:	Mono 410w	Weight:	23kg
Warranty:	25 Years Output Power Guarantee, 12YEAR	Solar Cell:	Mono 166*166mm

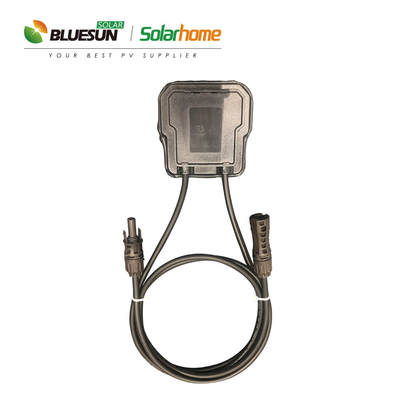

Certificate:	TUV/IEC61215/IEC61730/CEC/CE/PID/ISO/INMETRO	Junction Box:	IP67 Rated
Aluminium Alloy Frame:	Silvery Or Black	TPT Back Sheet:	White Or Black

Products Description

Shingled Module Technology

Compared with the normal module technology, the interconnected material of shingled module is different from that of normal module, whose technology is simpler and more reliable, avoiding the defects such as deviation of ribbon and cold soldering.

Product Paramenters

Electrical Characteristics
Model	BSM385PM5 -60SB	BSM390PM5 -60SB	BSM395PM5 -60SB	BSM400PM5 -60SB	BSM405PM5 -60SB	BSM410PM5 -60SB
Max Power(Pmax) [W]	385	390	395	400	405	410
Open Circuit Voltage(Voc) [V]	46.2	46.3	46.3	46.4	46.5	46.6
Short Circuit Current(lsc) [A]	10.82	10.87	10.92	10.97	11.02	11.07
Max Power Vdtage(Vmp) (VJ	38.4	38.5	38.5	38.6	38.7	38.8
Max Power Currentflmp) [A]	10.03	10.13	10.26	10.36	10.47	10.57
Module Efficiency [%]	19.6	19.9	202	20.4	20.7	20.9
Power Tolerance	0-5W
Max System Voltage	1000V/1500V/DC(IEC)
Max Series Fuse Rating	20A
Operating Temperature	-40 °C to + 85 C
STC	Irradiance 1000W/m2, cell temperature 25C, AM1.5

Advantages Of Shingled Module

Advantages

*Under the load of IEC 5400Pa, shingled has no new micro-cracks, although both shingled module and half-cell module passed the test(attenuation < 5%).

*High load resisting capacity reduces the production of micro-crack during transportation and power station installation.

Payment

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
			30% T/T in advance, paid the balance before shipment		FOB
				CFR(C&F)	30% T/T in advance, paid the balance against copy of B/L
				CIF	30% T/T in advance, paid the balance against copy of B/L
		L/C	L/C amount above 50,000 usd, we can accept L/C at sight
		Paypal	Amount lower than 5000usd
		West Union	Amount lower than 5000usd
Delivery Time	7~10days after receiving payment for one container

We welcome use Trade Assurance, you'll enjoy:

100% product quality protection

100% on-time shipment protection

100% payment protection for your covered amount

Certifications

Our Company

Bluesun Solar Co., Ltd. is a global clean energy solution service provider and high-tech photovoltaic module manufacturer. We are committed to providing one-stop energy solutions including energy supply, energy management and energy storage to customers around the world.
