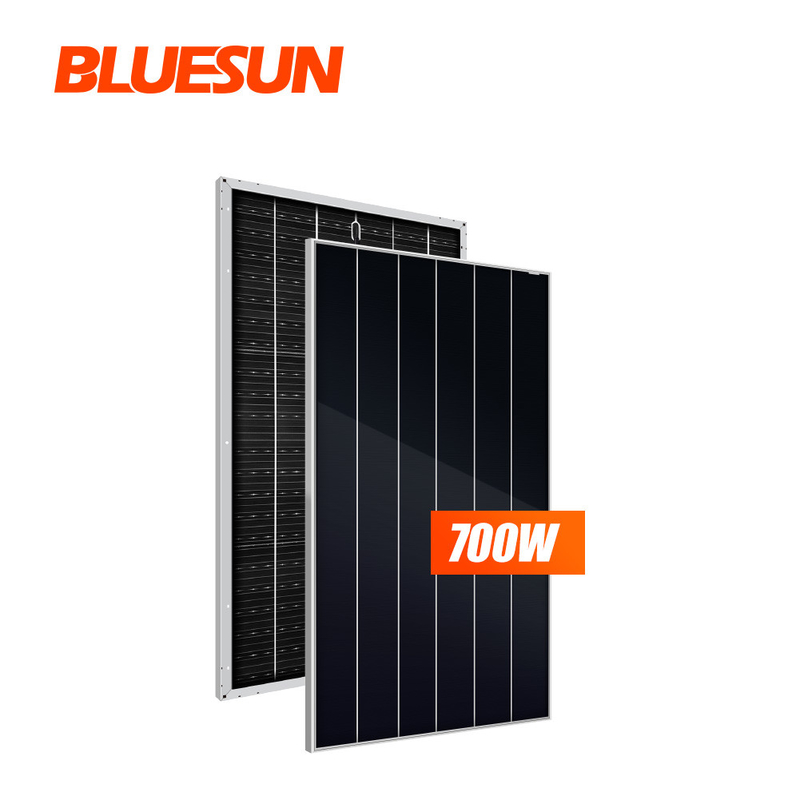

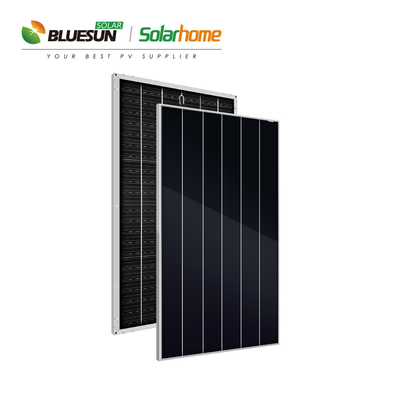

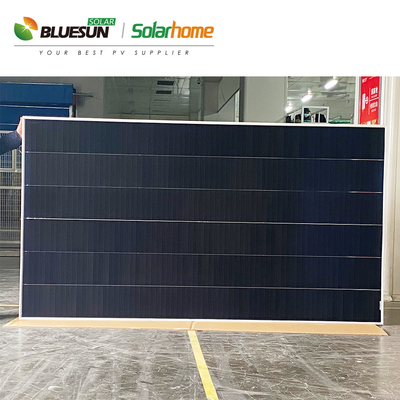

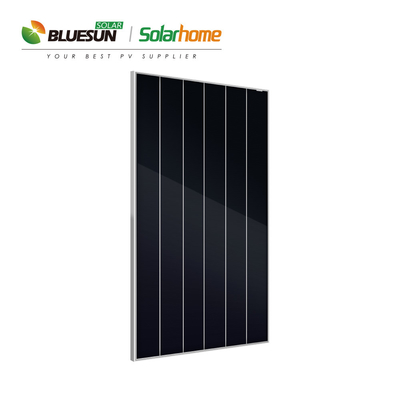

Name: High Efficiency Shingled Double Glass 700w 700watt 700wp Solar Panel for Home and Industrial Application
Brand: Bluesun Solar Co., Ltd.
SKU: BSM700PMB6-70SDC
Availability: InStock

Home Products Shingled Solar Panel

High Efficiency Shingled Double Glass 700w 700watt 700wp Solar Panel for Home and Industrial Application

Product Details:

Place of Origin:	Anhui, China
Brand Name:	BLUESUN
Model Number:	BSM700PMB6-70SDC

Contact Now

Detailed Product Description

Cell Size:	210mmx210mm	Panel Dimensions:	2384130335mm
Panel Efficiency:	22.81%	Product Name:	Solar Panel
Junction Box:	IP65 Waterproof	Certificate:	TUV/IEC61215/IEC61730/CEC/CE/PID/ISO
Warranty:	25 Years Solar Panel	Frame:	Anodized Aluminium Alloy
OEM:	Accepatable	Connector:	PV Compatible Connector
Solar Cell:	N-Type Monocrystalline	Type:	Monocrystalline Solar Panel
Application:	Solar Panel System

Products Description

Product Parameters

SPECIFICATIONS
SPECIFICATIONS
Module Type	BSM675PMB6-70SDC	BSM680PMB6-70SDC	BSM685PMB6-70SDC	BSM690PMB6-70SDC	BSM695PMB6-70SDC	BSM700PMB6-70SDC
	STC	STC	STC	STC	STC	STC
Maximum Power (Pmax/W)	675	680	685	690	695	700
Operating Voltage (Vmp/V)	39.20	39.30	39.40	39.50	39.60	39.60
Operating Current (Imp/A)	17.23	17.32	17.41	17.49	17.57	17.68
Open-Circuit Voltage (Voc/V)	47.20	47.30	47.40	47.50	47.60	47.70
Short-Circuit Current (Isc/A)	18.32	18.41	18.50	18.59	18.68	18.80
Module Efficiency (%)	21.90	22.10	22.30	22.50	22.60	22.81
STC: Irradiance 1000W/㎡, Cell Temperature 25°C, Air Mass AM1.5

Electrical characteristics with different rear side power gain(refer to700W front)
Pmax gain	Pmax/W	Vmpp/V	Impp/A	Voc/V	Isc/A
5%	735	39.6	18.56	47.7	19.74
10%	770	39.6	19.45	47.7	20.68
15%	805	39.6	20.33	47.7	21.62
20%	840	39.6	21.22	47.8	22.56
25%	875	39.6	22.10	47.8	23.50

Advantages Of Shingled Panel

* When the shingled module is installed vertically and the single cell string is shaded, the output power of the shingled module can reach 86.65% of the normal operation. That's 35% more power than the half-cell module.

Certificate

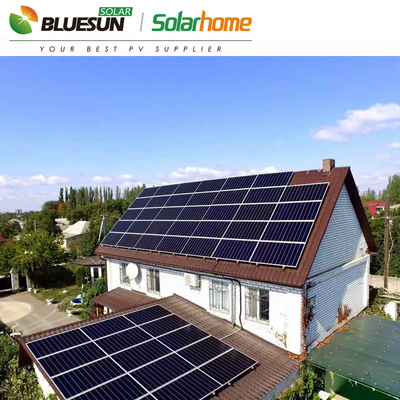

Projects

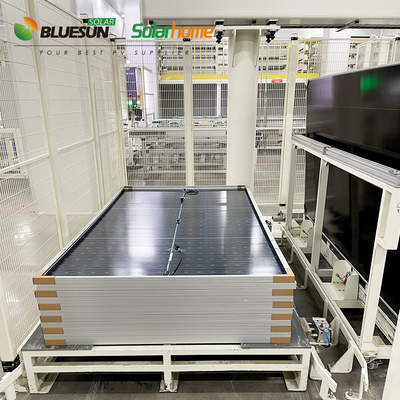

Packing & Delivery

Our Company

Bluesun Solar Co., Ltd. is a global clean energy solution service provider and high-tech photovoltaic module manufacturer. We are committed to providing one-stop energy solutions including energy supply, energy management and energy storage to customers around the world.

Feedback from our customers，if you want to know more information,please feel free to contact us,thanks!

Global Exhibition

Our Company

Payment

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
			30% T/T in advance, paid the balance before shipment		FOB
				CFR(C&F)	30% T/T in advance, paid the balance against copy of B/L
				CIF	30% T/T in advance, paid the balance against copy of B/L
		L/C	L/C amount above 50,000 usd, we can accept L/C at sight
		Paypal	Amount lower than 5000usd
		West Union	Amount lower than 5000usd
Delivery Time	7~10days after receiving payment for one container
