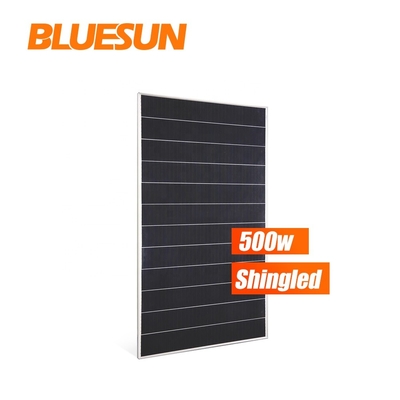

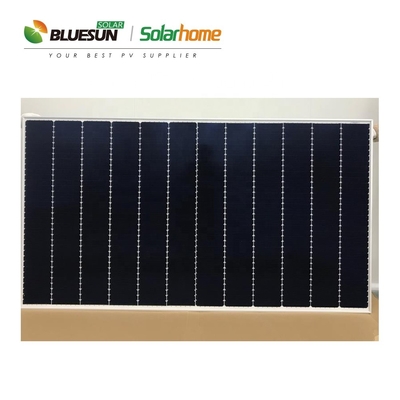

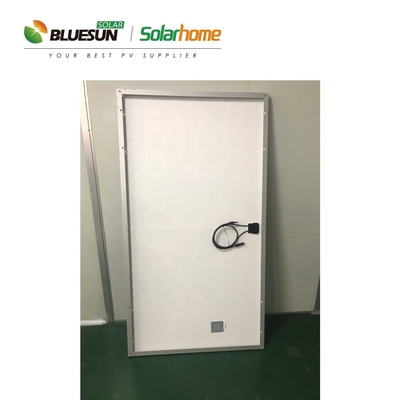

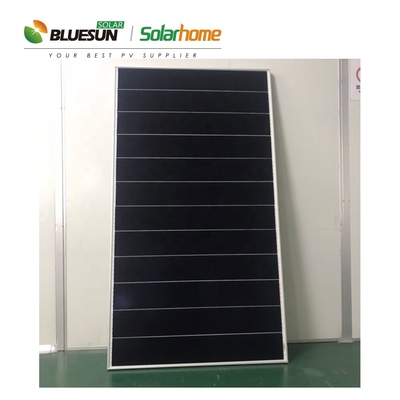

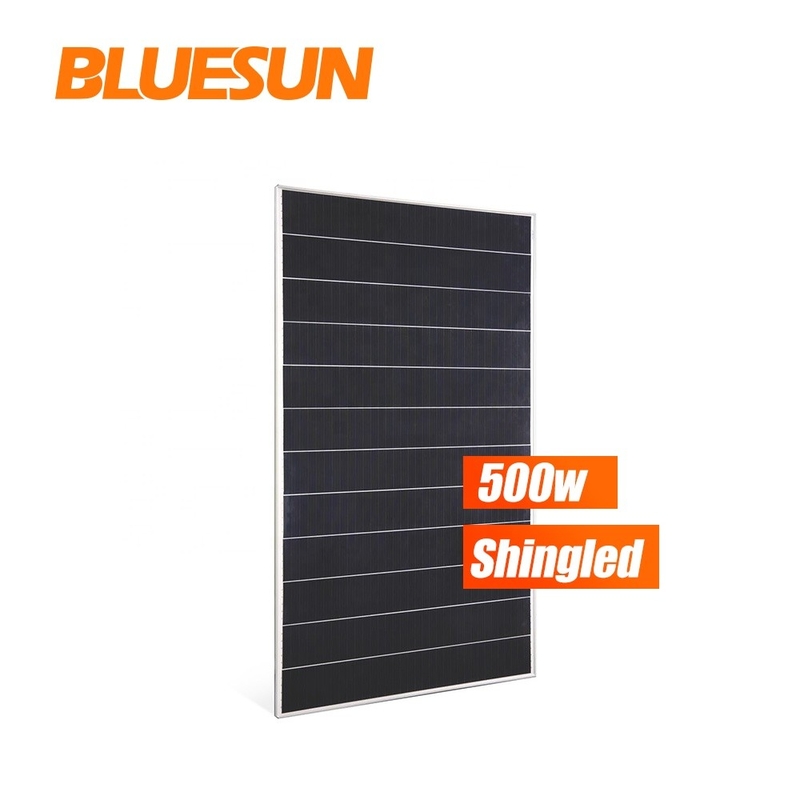

Bluesun HJT 500w 510w 520w 530w Shingled Sun Power Solar Panel Bificial in Good Price

Product Details:

Place of Origin:	Anhui, China
Brand Name:	Bluesun
Model Number:	BSM500PM5-72SB

Contact Now

Detailed Product Description

Cell Size:	166mmx166mm	Type:	PERC, All Black, HJT, Overlap, Shingled Solar Panel
Panel Dimensions:	2056114035mm	Panel Efficiency:	21.3%
Certificate:	ISO CE TUV	Solar Cell:	Mono Perc 166mm X 166mm
Junction Box:	IP67	Connector:	PV Compatible Connector
Warranty:	15 Years Product And 25 Years Linear Power, 25 Years	Frame:	Anodized Aluminium
Withstanding Hail:	Maximum Diameter Of 25 Mm With Impact Speed Of 23 Ms-1	OEM Order:	Acceptable
Front Cover:	High Transmission Tempered Glass

Products Description

Shingled Module Technology

Compared with the normal module technology, the interconnected material of shingled module is different from that of normal module, whose technology is simpler and more reliable, avoiding the defects such as deviation of ribbon and cold soldering.

Product Paramenters

Electrical Characteristics
Model	BSM470PM5 -72SB	BSM475PM5 -72SB	BSM480PM5 -72SB	BSM485PM5 -72SB	BSM490PM5 -72SB	BSM500PM5 -72SB
Max Power(Pmax) [W]	470	475	480	485	490	500
Open Circuit Voltage(Voc) [V]	46.4	46.5	46.6	46.6	46.7	46.8
Short Circuit Current(lsc) [A]	13.04	13.10	13.16	13.22	13.28	13.40
Max Power Voltage(Vmp) [V]	38.6	38.7	38.8	38.8	38.9	39.0
Max Power Current(lmp) [A]	12.18	12.27	12.37	12.50	12.60	12.82
Module Efficiency [%]	20.1	20.3	20.5	20.7	20.9	21.3
Power Tolerance	0-5W
Max System Voltage	1000V/1500V/DC(IEC)
Max Series Fuse Rating	20A
Operating Temperature	-40 °C to + 85°C
STC	Irradiance 1000W/m2, cell temperature 25 °C , AM1.5

Advantages Of Shingled Module

Advantages

*Under the load of IEC 5400Pa, shingled has no new micro-cracks, although both shingled module and half-cell module passed the test(attenuation < 5%).

*High load resisting capacity reduces the production of micro-crack during transportation and power station installation.
