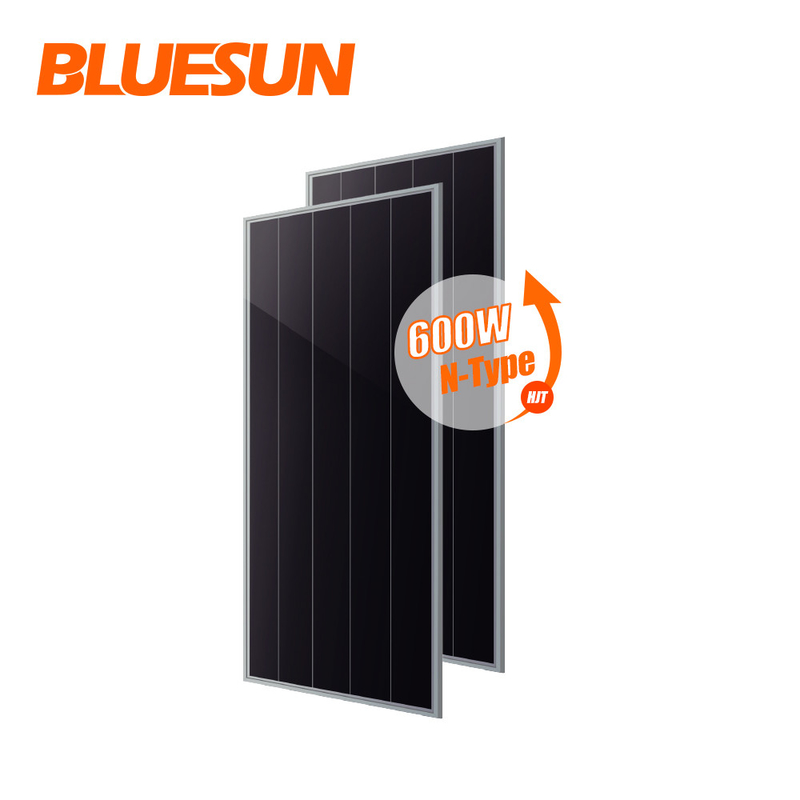

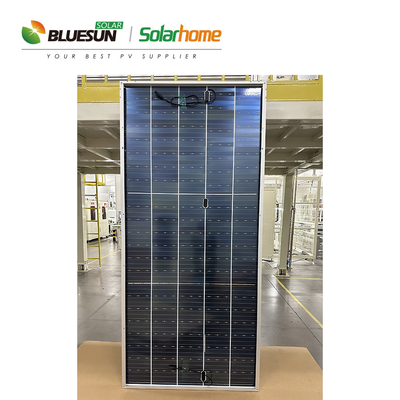

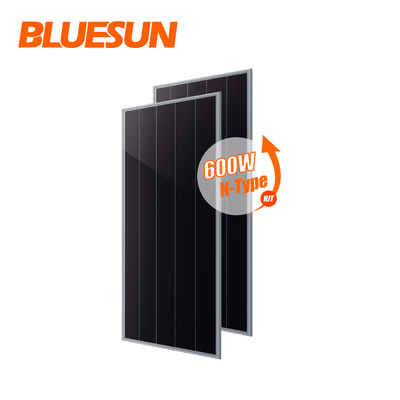

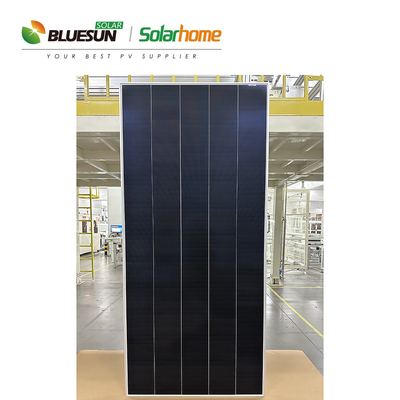

Name: High Efficiency 96 Cells Monocrystalline 600Watts Shingled Solar Panel Overlap Mono 600w 48v 24v Solar Panels
Brand: Bluesun Solar Co., Ltd.
SKU: BSM600PM5-72SB
Availability: InStock

Home Products Shingled Solar Panel

High Efficiency 96 Cells Monocrystalline 600Watts Shingled Solar Panel Overlap Mono 600w 48v 24v Solar Panels

Product Details:

Place of Origin:	Anhui, China
Brand Name:	Bluesun
Model Number:	BSM600PM5-72SB

Contact Now

Detailed Product Description

Cell Size:	182mmx182mm	Panel Dimensions:	2056114035mm
Panel Efficiency:	21.3%	Certificate:	TUV,CE,IEC,ETL,ROHS
Frame:	Anodized Aluminium Alloy	Solar Cell:	Mono 166*166mm
Junction Box:	IP67 Rated	Warranty:	25 Years Output Power Guarantee
Connector:	Compatible Connector	Front Cover:	3.2mm High Transmission, Low Iron
Module:	Shingled	Type:	Monocrystalline Solar Panel
Weight:	21kgs

Products Description

Product Parameters

SPECIFICATIONS
Module Type	BSM585PMB6-60SDC	BSM590PMB6-60SDC	BSM595PMB6-60SDC	BSM600PMB6-60SDC	BSM605PMB6-60SDC	BSM610PMB6-60SDC
	STC	STC	STC	STC	STC	STC
Maximum Power (Pmax/W)	585	590	595	600	605	610
Operating Voltage (Vmp/V)	39.80	39.90	40.00	40.10	40.20	40.30
Operating Current (Imp/A)	14.71	14.80	14.89	14.98	15.07	15.16
Open-Circuit Voltage(Voc/V)	47.80	47.90	48.00	48.10	48.20	48.30
Short-Circuit Current(Isc/A)	15.67	15.77	15.87	15.97	16.07	16.17
Module Efficiency in STCηm(%)	22.40	22.60	22.80	23.00	23.20	23.40
STC: Irradiance 1000w/m2, Cell Temperature 25°C, Air Mass AM1.5
More details, please send us inquiry

Advantages Of Shingled Panel

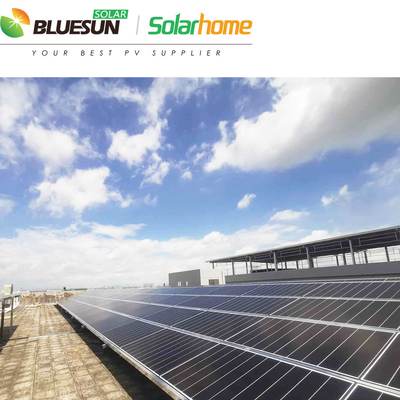

Projects

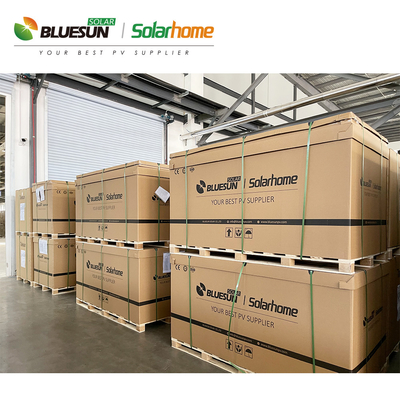

Packing & Delivery

Our Exhibitions

2023 SOLARTECH INDONESIA

2023 INTERSOLAR MEXICO

SOLAR & STORAGE LIVE UK 2023

2023 INTER SOLAR NORTH AMERICA

2023 SOLARTECH COLOMBIA

SOLAR SOLUTIONS INT AMSTERDAM

Payment

Payment Term

T/T

EXW

30% T/T in advance, paid the balance before shipment

FOB

CFR(C&F)

30% T/T in advance, paid the balance against copy of B/L

CIF

L/C

L/C amount above 50,000 usd, we can accept L/C at sight

West Union

Amount lower than 5000usd

West Union

Delivery Time

7~10days after receiving payment for one container

We welcome use Trade Assurance, you'll enjoy:
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount

Contact Me
