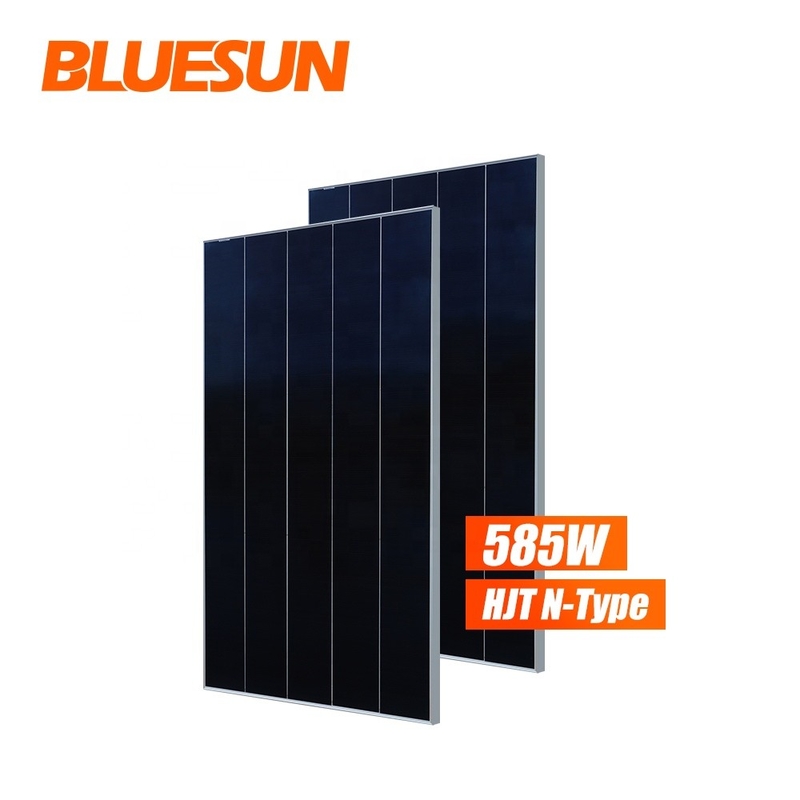

Name: Bluesun 585w Solar Panel High Efficiency Shingled Solar Panels Roof Power Station Pv Module 585watt Hjt Pv Panel
Brand: Bluesun Solar Co., Ltd.
SKU: BSM585PMB6-60SC
Availability: InStock

Home Products Shingled Solar Panel

Bluesun 585w Solar Panel High Efficiency Shingled Solar Panels Roof Power Station Pv Module 585watt Hjt Pv Panel

Product Details:

Place of Origin:	Anhui, China
Brand Name:	Bluesun
Model Number:	BSM585PMB6-60SC

Contact Now

Detailed Product Description

Cell Size:	210mmx210mm	Type:	HJT, N Type, N Type Panel
Panel Dimensions:	2108104835mm	Panel Efficiency:	22.4%
Product Name:	Shingled Solar Panels	Solar Panel:	HJT 585watt
Application:	Solar Power System	Junction Box:	IP68 Rated
Solar Cell:	210MM	Weight:	28.3kg
Warranty:	25 Years Output Power Guarantee	TPT Back Sheet:	White
Certificate:	TUV/IEC61215/IEC61730/CEC/CE/PID/ISO

Products Description

	BSM570PMB6-60SC	BSM575PMB6-60SC	BSM580PMB6-60SC	BSM585PMB6-60SC	BSM590PMB6-60SC
	STC	STC	STC	STC	STC
Maximum Power(Pmax/W)	570	575	580	585	590
Operating Voltage(Vmp/V)	39.5	39.6	39.7	39.8	39.9
Operating Current(Imp/A)	14.44	14.53	14.62	14.71	14.8
Open-Circuit Voltage(Voc/V)	47.5	47.6	47.7	47.8	47.9
Short-Circuit Current(Isc/A)	15.36	15.46	15.56	15.65	15.75
Module Efficiency （%）	21.6	22	22.2	22.4	22.6
STC: Irradiance 1000W/m², Cell Temperature 25℃, Air Mass AM1.5

N Type Technology

N-type cells are more efficient than P-type cells and are not affected by light-induced degradation (LID).

Bluesun Company

Bluesun Solar, as one of the top solar integrated solution provider in China, is a high-tech manufacturer specializing in R&D of solar panels,lithium battery and ESS.
