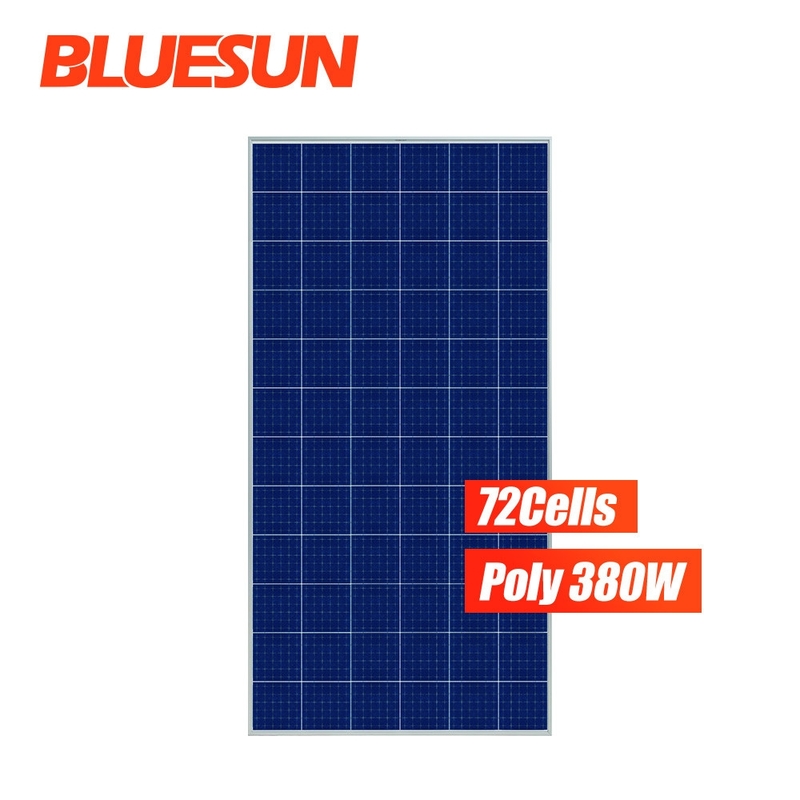

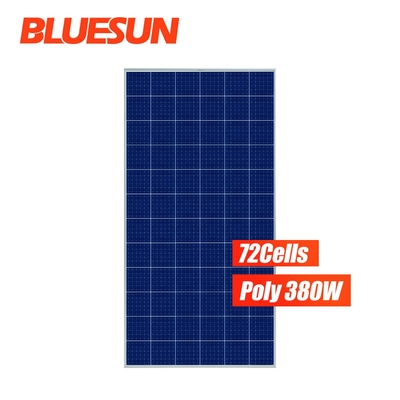

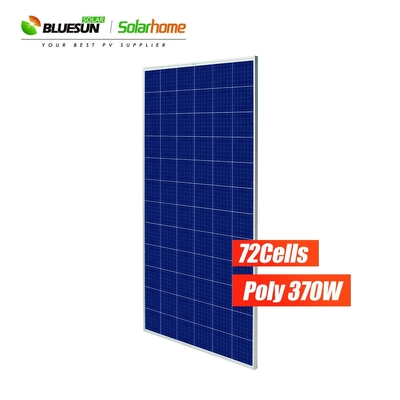

Name: Bluesun MWT Solar Panel 330W 340W 350W 380W Poly Solar Panels With MWT Technology Panel
Brand: Bluesun Solar Co., Ltd.
Availability: InStock

Home Products Other Solar Panel

Bluesun MWT Solar Panel 330W 340W 350W 380W Poly Solar Panels With MWT Technology Panel

Product Details:

Contact Now

Detailed Product Description

品牌:	Bluesun	型号:	BSM380P-72M
原产地:	Anhui, China	电池片尺寸:	158.75mmx158.75mm
类型:	打击乐, 兆瓦, 标准太阳能电池板	尺寸:	1956992 40mm
组件效率:	22%	太阳能电池:	聚156x156mm
证书:	TUV/CE/ETL	框架:	阳极氧化铝合金
接线盒:	IP65额定	颜色:	蓝色和黑色
保修:	25年输出功率保证	OEM订单:	可接受
前盖:	3.2mm高传动，低铁	保修期:	25年

Product Description

MWT Technology

MWT( Metal Wrap Though) is a newly developed back contact cell technology. It provides a new cell structure that eliminates electrodes on the front and maximizes the utilization of light and enhances reliability. MWT Back Contact cells converge the electrodes from the front to the rear side using conductive paste. This innovative design features with no bus-bar and no ribbon at the front.

Technical Features

1.Improved Usage of Light

2.Improved Absorption of Electrodes

3.Better Response to Shading, Cracks and Breakage

Max power (Pm) (W)	350W	355W	360W	365W	370W	375W	380W
Power Tolerance (%)	0~+3
Max-Power Voltage (Vm) (V)	37.5	37.7	37.9	38.1	38.3	38.5	38.7
Max-Power Current (Im) (A)	9.34	9.42	9.5	9.59	9.67	9.75	9.83
Open-Circuit Voltage(Voc) (V)	46.4	46.6	46.8	47.0	47.2	47.4	47.6
Short-Circuit Current(Voc) (A)	9.79	9.86	9.92	9.98	10.04	10.10	10.16
Module Efficiency (%)	18.1	18.3	18.6	18.8	19.1	19.3	19.6

Superior Warranty

We improved the initial degradation of the 1st year from -3.5% to -2% and reduce the annual degradation rate from -0.7%/year to -0.6%/year. Thereafter, we're proud to provide you a superior warranty.

Packing & Delivery

Model	60 Cells Package			72 Cells Package
Container Size	Quantity (pcs)	Quantity (pcs)	Quantity (pcs)	Quantity (pcs)
20GP	360	12	260	10
40GP	840	28	624	24
40HC	840	28	624	24

Project

Global Exhibitions

Our Company

Payment

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
			30% T/T in advance, paid the balance before shipment		FOB
				CFR(C&F)	30% T/T in advance, paid the balance against copy of B/L
				CIF	30% T/T in advance, paid the balance against copy of B/L
		L/C	L/C amount above 50,000 usd, we can accept L/C at sight
		Paypal	Amount lower than 5000usd
		West Union	Amount lower than 5000usd
Delivery Time	7~10days after receiving payment for one container
