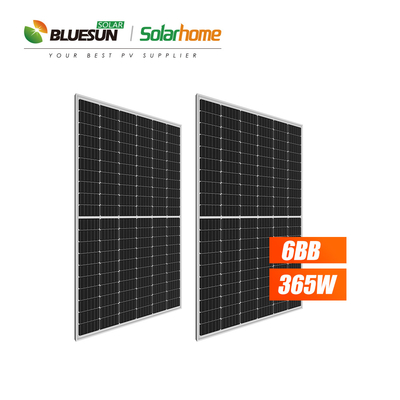

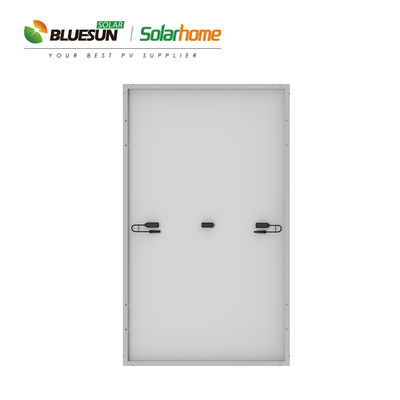

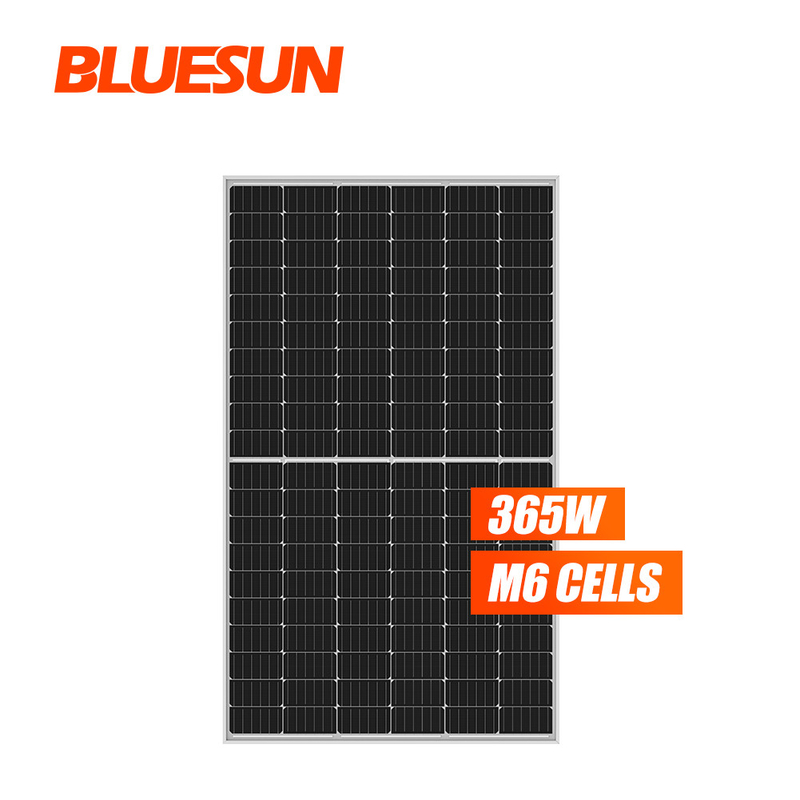

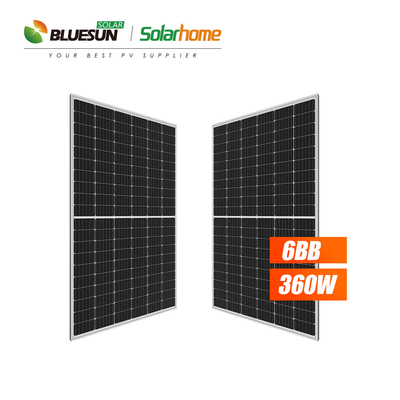

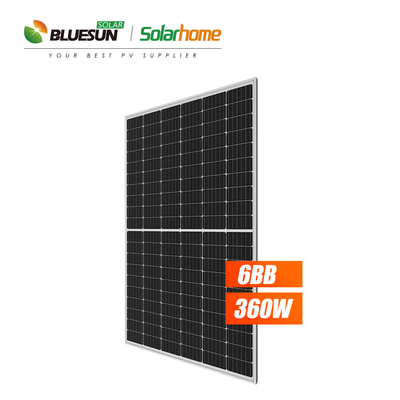

Bluesun Mono Solar Half Cell 375watt Pv Range 36v 360w 370w 375w Solar System for Home Use

Product Details:

Contact Now

Detailed Product Description

品牌:	Bluesun	型号:	BSM375M-60HPH
原产地:	Anhui, China	电池片尺寸:	166mmx166mm
类型:	打击乐, 半电池	尺寸:	1755x1038x35mm
组件效率:	20.4%	Dimensions:	1755x1038x35mm
Type:	Half Cell Solar Panel	Frame:	Black
Brand:	Bluesun	Junction Box:	IP68,3/6 Bypass Diode
Max Series Fuse Rating:	20A	Glass:	3.2mm High Transmission Tempered Glass
Weight:	21kg	Efficiency [:	20.4%
Front Load:	5400pa	Certificate:	CE/TUV
保修期:	25years

Products Description

Perc Cell

The PERC cell has a passivated rear side and a laser grooving process, which significantly improves the cell efficiency.

Technical Specification

Model	BSM355M-60HPH	BSM360M-60HPH	BSM365M-60HPH	BSM370M-60HPH	BSM375M-60HPH
Max Power(Pmax) [W]	355	360	365	370	375
Open Circuit Voltage(Voc) [V]	40.5	40.7	40.9	41.1	41.3
Short Circuit Current(lsc) [A]	11.10	11.15	11.20	11.26	11.31
Max Power Voltage(Vmp) [V]	34.0	34.3	34.6	34.9	35.2
Max Power Current(lmp) [A]	10.45	10.50	10.56	10.61	10.66
Module Efficiency [%]	19.3	19.6	19.8	20.1	20.4
Power Tolerance	0-5W
Max System Voltage	DC 1500/1000(1 EC)
Max Series Fuse Rating	20A
Operating Temperature	-40 C to + 85 C
STC	Irradiance 1000W/m2, cell temperature 25C, AM 1.5

Certifications
