Name: Complete in Specifications 310w 315w 320w 325w 330w Mono 120 Cells Solar Panel
Brand: Bluesun Solar Co., Ltd.
Availability: InStock

Home Products Other Solar Panel

Complete in Specifications 310w 315w 320w 325w 330w Mono 120 Cells Solar Panel

Product Details:

Contact Now

Detailed Product Description

品牌:	Bluesun	型号:	BSM330M-60HC
原产地:	Anhui, China	电池片尺寸:	158.75mmx158.75mm
类型:	打击乐, 半电池, 标准太阳能电池板	尺寸:	1665992 35mm, 1665992 35mm
组件效率:	19.98%	太阳能电池:	156.75 * 78.375mm
保修:	25年输出功率保证	重量:	19.0kg
前玻璃:	高透射钢化玻璃	框架:	阳极氧化铝合金
接线盒:	IP67	电缆:	4mm2
打包配置:	30个/箱，840个/40'hq容器	保修期:	25年

Product Description

1.Higher Yield Due to Better Shading Response

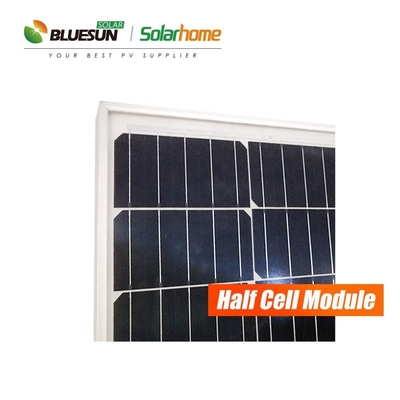

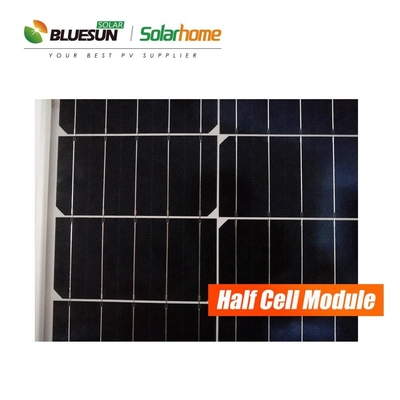

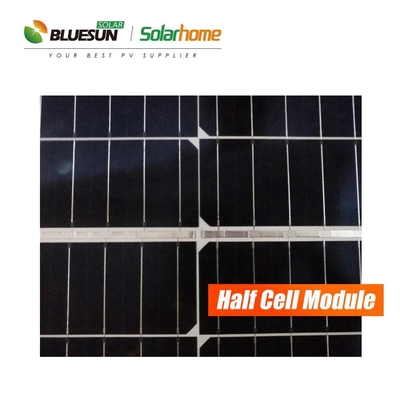

Half Cell Module comprises two separated and identical solalr cell arrays, which means the ordinary strings of cells are cut into halves, and these shorter strings compose which has separated current paths. When a module is shaded, only one side shaded array's current will be impacted, while the other array will still be functionally producing power. Under this circumstance, when a module is shaded, the affected working areas of Blade will be 50% less.
By cutting solar cell into halves, the internal power loss will be lower and hot spot effect will also be reduced.

2.Less Mismatch Loss

Instead of 6 internal strings of cells, half cell module has 2*6 shorter ones. This design effectively deals with the mismatch happened between cells caused by shadow, out of sync performance degradation, etc.

Half Cell Module Electrical Parameters At STC
Model	BSM310M-60HC	BSM315M-60HC	BSM320M-60HC	BSM325M-60HC	BSM330M-60HC
Rated Power at STC	310W	315W	320W	325W	330W
Open Circuit Voltage	40.2V	40.4V	40.6V	40.8V	41V
Maximum Voltage	10.12A	10.23A	10.34A	10.45A	10.56A
Short Circuit Current	33.3V	33.5V	33.7V	33.9V	34.1V
Maximum Power Current(Imp/A)	9.32A	9.42A	9.51A	9.6A	9.69V
Module Efficiency	18.77%	19.07%	19.37%	19.68%	19.98%
Standard Test Condition	Irradiance 1000W/m²,module temperature 25℃, Air Mass 1.5

Produce Line&Packing

(60cells )Container	20GP	40GP	40HC
Pcs/Pallet	30	30	30
Pallets/Container	14	28	28
Pcs/Container	400	840	924

(72 cells )Container	20GP	40GP	40HC
Pcs/Pallet	27	26	27
Pallets/Container	10	22	24
Pcs/Container	270	572	696

Payment

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
			30% T/T in advance, paid the balance before shipment		FOB
				CFR(C&F)	30% T/T in advance, paid the balance against copy of B/L
				CIF	30% T/T in advance, paid the balance against copy of B/L
		L/C	L/C amount above 50,000 usd, we can accept L/C at sight
		Paypal	Amount lower than 5000usd
		West Union	Amount lower than 5000usd
Delivery Time	7~10days after receiving payment for one container

We welcome use Trade Assurance, you'll enjoy:

100% product quality protection

100% on-time shipment protection

100% payment protection for your covered amount

Certifications

Our Company

Bluesun Solar Co., Ltd. is a global clean energy solution service provider and high-tech photovoltaic module manufacturer. We are committed to providing one-stop energy solutions including energy supply, energy management and energy storage to customers around the world.
