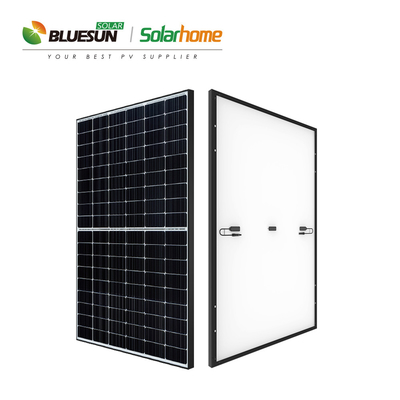

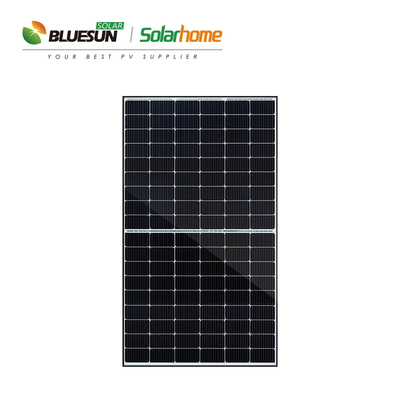

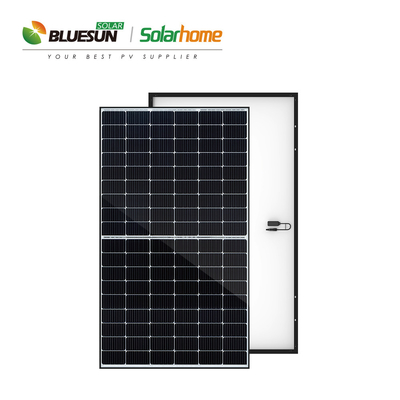

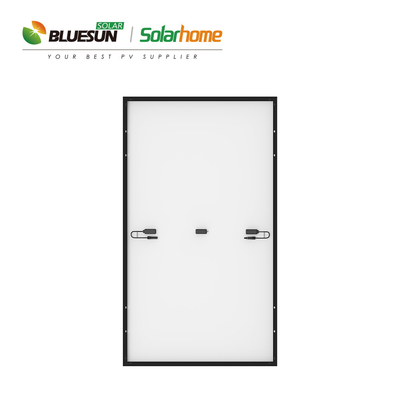

Name: Ja Solar Panes 400 Watt 425W 500watt 1000watt Mono Half Cut Solar Panels PV Module Solar Panel Complete Kit
Brand: Bluesun Solar Co., Ltd.
Availability: InStock

Home Products Other Solar Panel

Ja Solar Panes 400 Watt 425W 500watt 1000watt Mono Half Cut Solar Panels PV Module Solar Panel Complete Kit

Product Details:

Contact Now

Detailed Product Description

品牌:	Bluesun	型号:	BSM425G12-54HPH
原产地:	Anhui, China	电池片尺寸:	182mmx182mm
类型:	打击乐, 半电池, 异面, 双层-玻璃, 全黑色, 重叠	尺寸:	17221134 30mm
组件效率:	21.7%	细胞类型:	单晶
单元格尺寸:	210mm * 210mm	重量:	21.5kg
模块尺寸:	17221134 30mm	电缆长度:	300mm
包装配置:	36pcs/纸箱，936pcs/40hq	Ef模块效率:	21.7
模块类型:	BSM425G12-54HPH	前玻璃:	3.2毫米 (0.13英寸) AR涂层钢化玻璃
接线盒:	IP68	保修期:	25

Products Description

SPECIFICATIONS
Module Type	BSM410G12-54HPH			BSM415G12-54HPH			BSM420G12-54HPH		BSM425G12-54HPH
	STC	NMOT	STC	NMOT	STC	NMOT	STC	NMOT
Maximum Power (Pmax/W)	410	306	415	310	420	314	425	318
Operating Voltage (Vmpp/V)	31.43	29.3	31.64	29.6	31.83	29.8	32.03	30.0
Operating Current(Impp/A)	13.05	10.42	13.13	10.48	13.21	10.54	13.29	10.60
Open-Circuit Voltage (Voc/V)	37.50	35.30	37.75	35.50	38.00	35.70	38.25	35.90
Short-Circuit Current (Isc/A)	13.94	11.24	14.02	11.30	14.10	11.36	14.18	11.42
Module Efficiency qm(%)	21			21.3			21.5		21.7
STC: Irradiance 1000W/m . Cell Temperature 25℃, Air Mass AM1.5 NMOT: Irradiance at 800Wm . Ambient Temperature 2(TC. Air Mass AM1.5, Wind Speed 1m/s

Certification

Production& Packing Process

Main Production Process

Packing: By Carton box or Wooden Box

Bluesun Company

Bluesun Solar---is one of the solar power solution leading companies in China. Specializing in research and development of solar panel, lithium battery and BMS.

Our Global Exhibition

INTERSOLAR EUROPE

INTERSOLAR MEXICO

INTERSOLAR AMERICA

THE FUTURE ENERGY SHOW PHILIPPINES

SOLAR SOLUTIONS INT AMSTERDAM

SOLAR & STORAGE LIVE UK

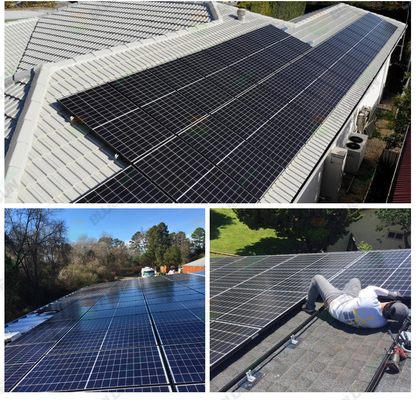

Projects

Bluesun‘s export volume is as high as 22GW, with projects in more than 185 countries around.

Configuration：425W Solar Panel EU Stock

Installation site：Croatia

Installation time：March 2023

Configuration：Energy Storage with 700W Double Glass Shingled Solar Panel

Installation site：U.K.

Installation time：July 2023

Configuration：440W Black Frame Shingled Solar Panel

Installation site：Sweden Gothenburg

Installation time：September 2023

Payment

Payment Term

T/T

EXW

30% T/T in advance, paid the balance before shipment

FOB

CFR(C&F)

30% T/T in advance, paid the balance against copy of B/L

CIF

L/C

L/C amount above 50,000 usd, we can accept L/C at sight

West Union

Amount lower than 5000usd

West Union

Delivery Time

7~10days after receiving payment for one container

We welcome use Trade Assurance, you'll enjoy:
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount

Contact Details

Bluesun Solar Co., Ltd.
